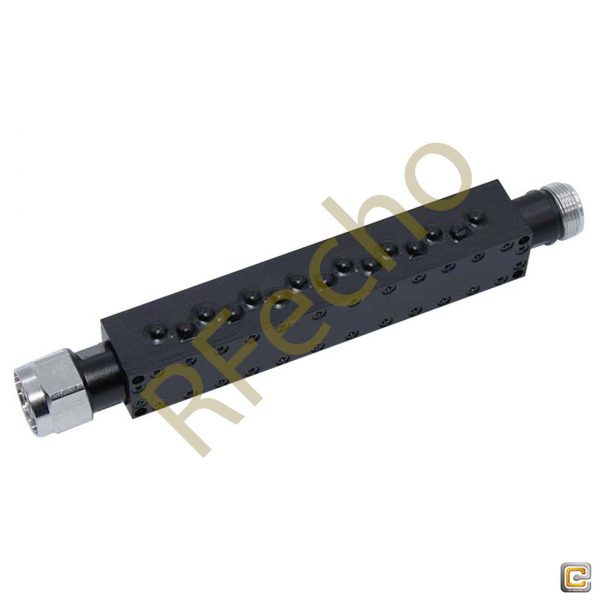

Cavity Band Pass OBP-5275-250

Cavity Band Pass OBP-5275-250

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-5275-250, its Center Frequency(F0) is 5.275GHz, its Pass Band Bandwidth is 5.15-5.4GHz, its Pass Band Insertion Loss is 2dB, and its Pass Band VSWR is1.3. Its Stop Band frequency is DC-5GHz & 5.55-12GHz. The Stop Band Rejection is 40dB.

SKU: OBP-5275-250 Categories: ,

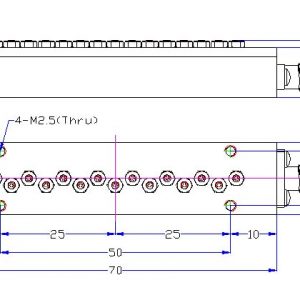

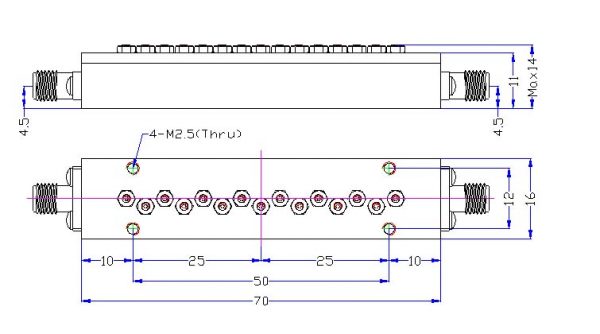

OBP 5275 250 outline Cavity Band Pass OBP-5275-250


OBP 5275 250 plot1 Cavity Band Pass OBP-5275-250

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
