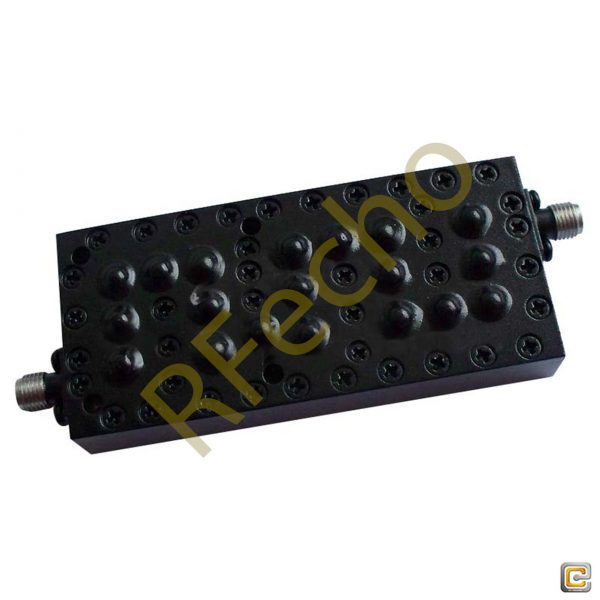

Cavity Band Pass OBP-8150-500

Cavity Band Pass OBP-8150-500

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-8150-500,its Center Frequency(F0) is 8150MHz, its Pass Band Bandwidth is 7900~8400MHz, its Pass Band Insertion Loss is ≤1.4dB, and its PassBand Return Loss is ≥20dB. The Stop Band Rejection is:≥46dB @ 7 .75GHz

SKU: OBP-8150-500 Categories: ,

Description

PDF

Outline

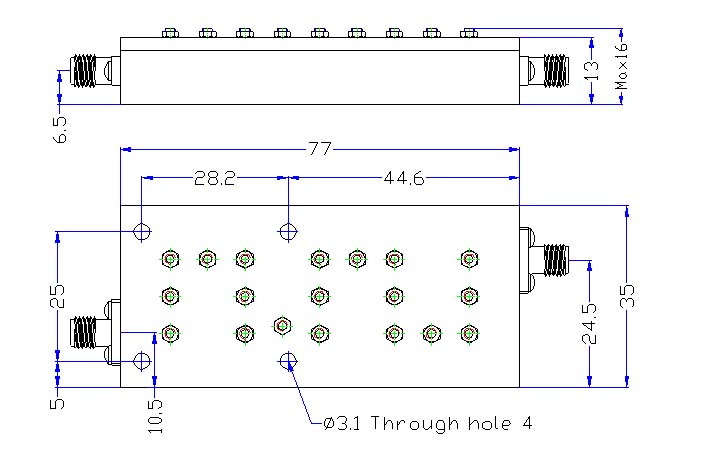

OBP 8150 500 outline Cavity Band Pass OBP-8150-500

Plot

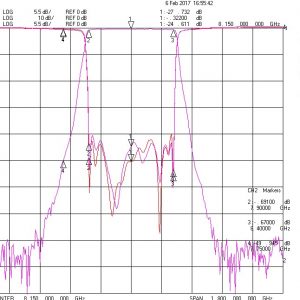

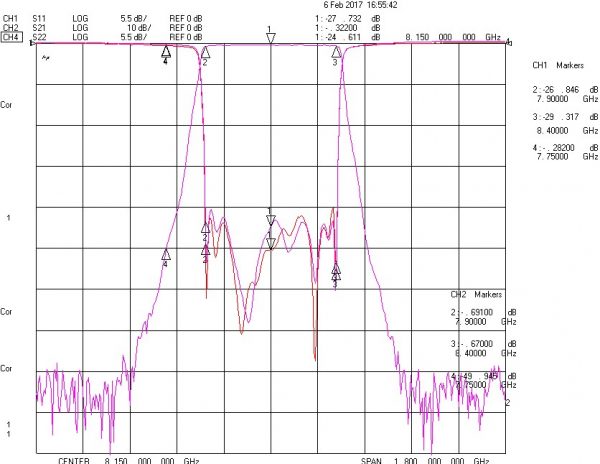

OBP 8150 500 plot1 Cavity Band Pass OBP-8150-500

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
