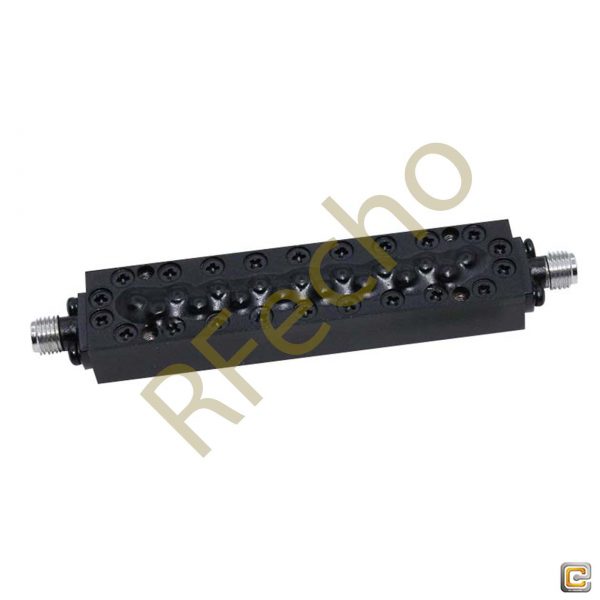

Cavity Band Pass OBP-8450-700

Cavity Band Pass OBP-8450-700

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-8450-700,its Center Frequency(F0) is 8450MHz, its Pass Band Bandwidth is 8100~8800MHz, its Pass Band
InsertionLoss is≤1.5dB, and its PassBand VSWR is≤1.3:1. Its Stop Band frequency is DC~7950MHz&8950~15000MHz. The Stop Band Rejection is:≥20dB

SKU: OBP-8450-700 Categories: ,

Description

PDF

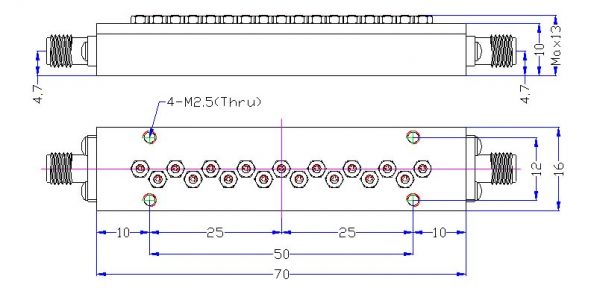

Outline

OBP 8450 700 outline Cavity Band Pass OBP-8450-700

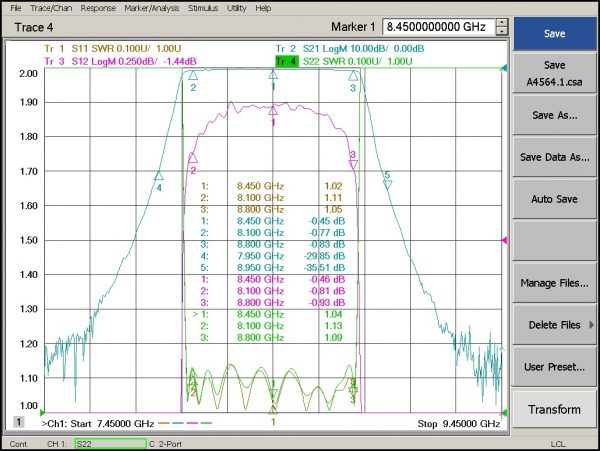

Plot

OBP 8450 700 plot1 Cavity Band Pass OBP-8450-700

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
