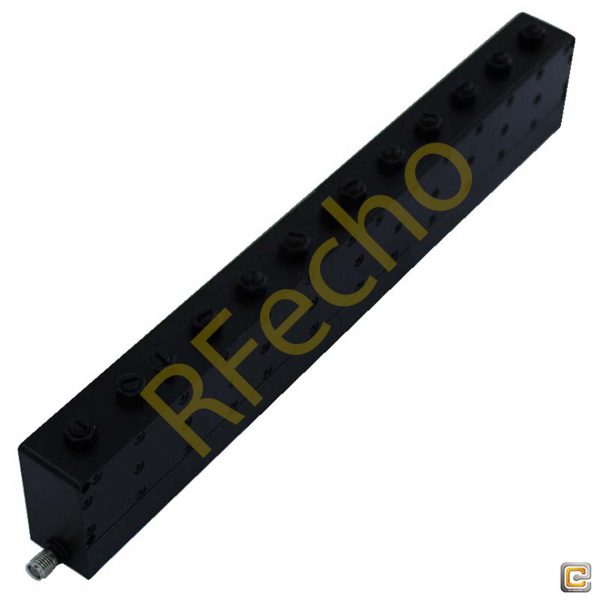

Cavity Band Rejection Filter OBR-2345-50-A

Cavity Band Rejection Filter OBR-2345-50-A

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters, abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Bandstop Filters (OBR) is OBR-2345-50-A, its Stop Band Frequency is 2320~2370MHz,Stop Band attenuation is 50dB, its Pass Band Frequency is DC~2300MHz & 2390~3600MHz, and its Pass Band Insertion Loss is2.5dB. Its Pass BandVSW.R is 1.5:1

SKU: OBR-2345-50-A Categories: ,

Description

PDF

Outline

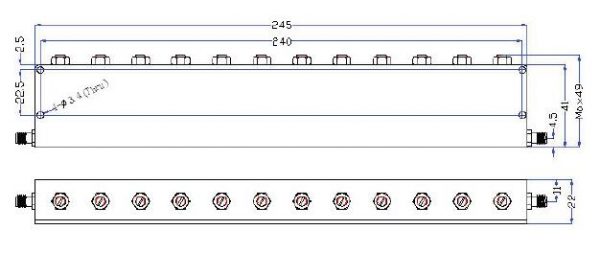

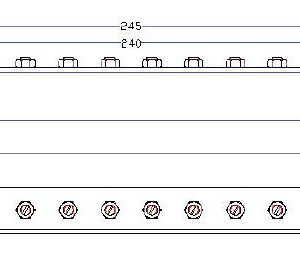

OBR 2345 50 A outline Cavity Band Rejection Filter OBR-2345-50-A

Plot

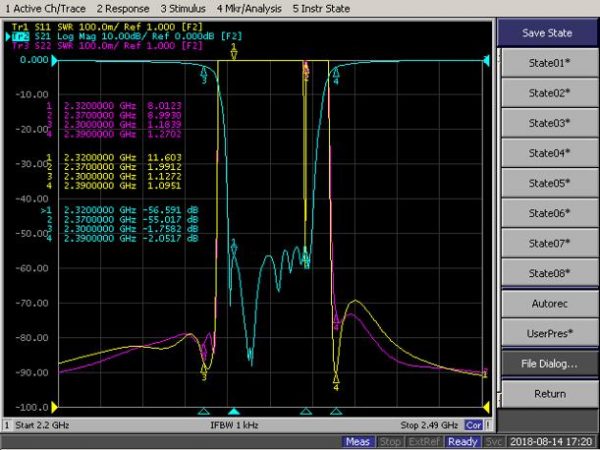

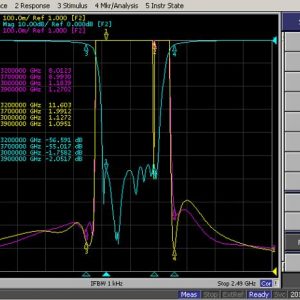

OBR 2345 50 A plot1 Cavity Band Rejection Filter OBR-2345-50-A
