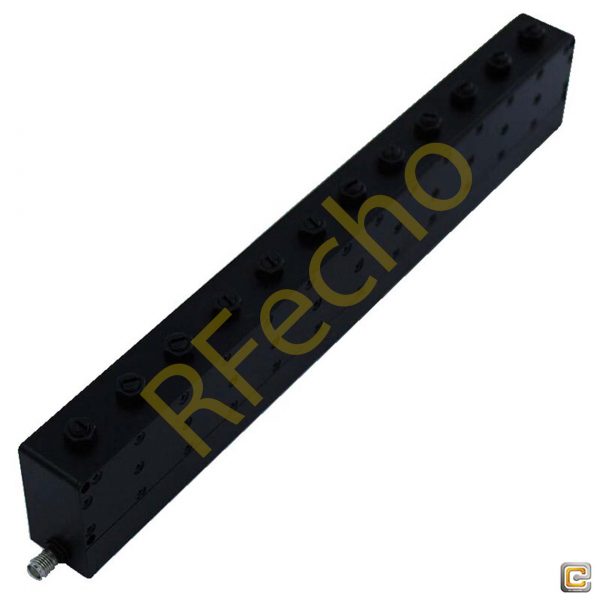

Cavity Band Rejection Filter OBR-2345-50

Cavity Band Rejection Filter OBR-2345-50

Ocean Microwave Band stop Filters (Ocean Bandstop Filters,abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some
range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Band stop Filters (OBR) is OBR-2345-50,its Stop Band Frequency is 2320~2370MHz,Stop Band attenuation is 50dB ,its Pass Band Frequency is 0~2300MHz & 2390~3600MHz,and its Pass Band Insertion Loss is 2.5dB. Its Pass Band VSWR is 1.5:1.

SKU: OBR-2345-50 Categories: ,

Description

PDF

Outline

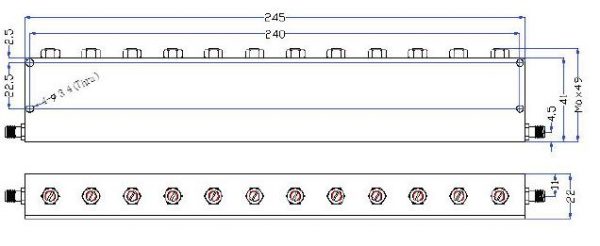

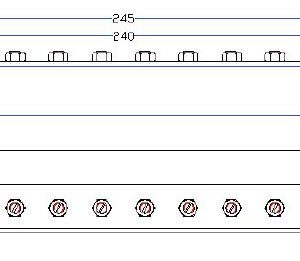

OBR 2345 50 outline Cavity Band Rejection Filter OBR-2345-50

Plot

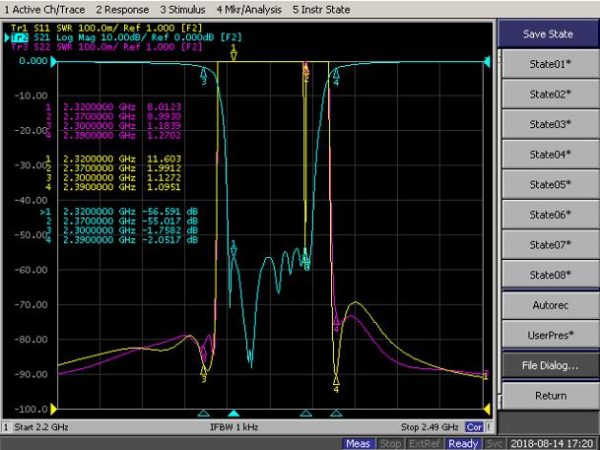

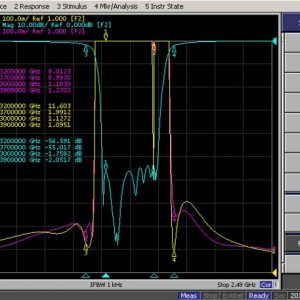

OBR 2345 50 plot1 Cavity Band Rejection Filter OBR-2345-50

Additional information

Center Frequency (F0) (MHz)

Stop Band Min. Frequency (MHz)

Stop Band Max. Frequency (MHz)

Stop Band Attenuation (dB)

Band Min. Frequency (MHz) A
Band Max. Frequency (MHz) A

Band Min. Frequency (MHz) B

Band Max. Frequency (MHz) B

Pass Band Insertion Loss (dB)

Impedance (Ω)

Power Handling (W)

Connection Type
