Band Reject Passive RF Filter 5150MHz to 5250MHz rejection ≥ 45dB RF Cavity Band Reject Filter with SMA Female Connector

Band Reject Passive RF Filter 5150MHz to 5250MHz rejection ≥ 45dB RF Cavity Band Reject Filter with SMA Female Connector

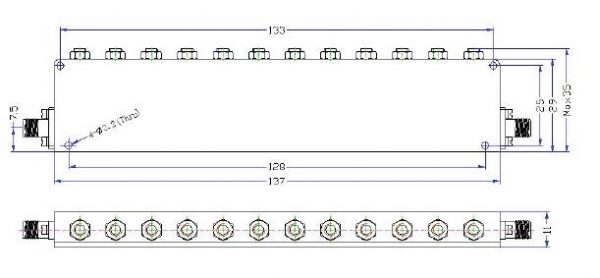

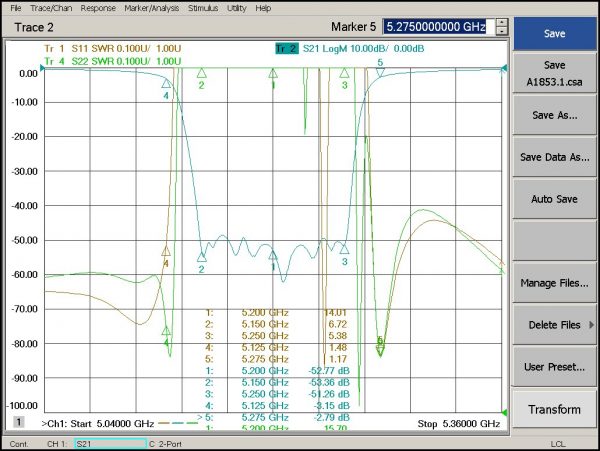

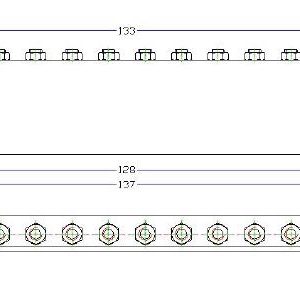

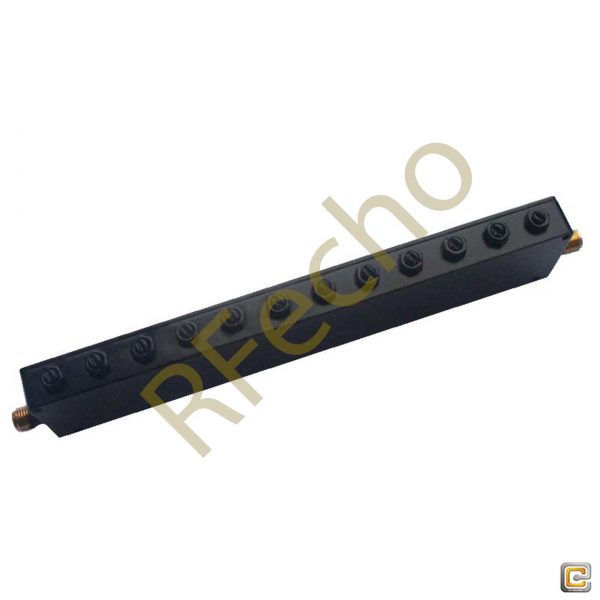

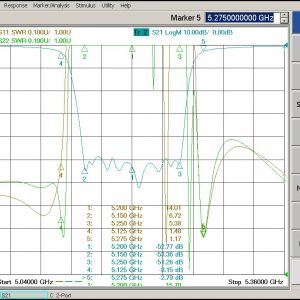

Band Reject Passive RF Filter model OHP: 5200-100 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This Band Reject Passive RF Filter manufactured with a stopband frequency from 5150MHz to 5250MHz and a passband frequency from DC to 5125MHz & 5275MHZ to 8000MHz. RF Cavity Band Reject Filter provides a nominal insertion loss of ≤4.0dB across its passband and a typical rejection of ≥45. This Band Reject Passive RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Cavity Band Reject Filter has Passband VSWR of ≤1.7:1 and Impedance of 50ohms. Band Reject Passive RF Filter is manufactured with SMA Female Connector. Our Ocean Microwave Band Reject Filter has power Handling of ≤50W. 5150MHz to 5250MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 5150MHz to 5250MHz Band Reject Passive RF Filter is ready for shipping worldwide after purchase. Additional specs of this RF Cavity Band Reject Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OBR-5200-100 Categories: Cavity Band Reject Filter, RF Cavity Filter, RF Filters

Description

OBR-5200-100 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 5150MHz to 5250MHz with SMA Female connectors. The SMA band-reject filter design is rated for a VSWR of 1.7:1 and a maximum power of 50 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-5200-100 has an insertion loss maximum that is 4.0 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



Band Reject Filter Datasheet (Click to download)

OBR-5200-100

Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

5150

Stop Band Max. Frequency (MHz)

5250

Stop Band Attenuation (dB)

≥45

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

5125

Band Min. Frequency (MHz) B

5275

Band Max. Frequency (MHz) B

8000

Pass Band Insertion Loss (dB)

≤4

Impedance (Ω)

50

Power Handling (W)

≤50

Connection Type

SMA-Female
