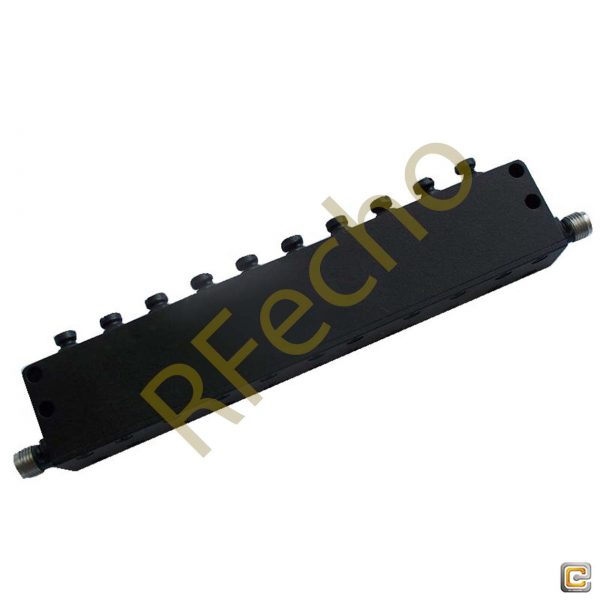

Cavity Band Rejection Filter OBR-5500-700

Cavity Band Rejection Filter OBR-5500-700

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters,abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Bandstop Filters (OBR) is OBR-5500-700,its Stop Band Frequencyis 5150~5850MHz,Stop Band attenuation is 40dB,its Pass Band Frequency is DC~4900MHz & 6100~10000MHz, and its Pass Band Insertion Loss is 2.0dB. Its Pass Band VSWR is 1.7.

SKU: OBR-5500-700 Categories: , Tag:

Description

PDF

Outline

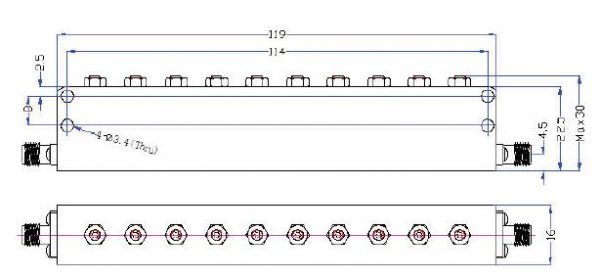

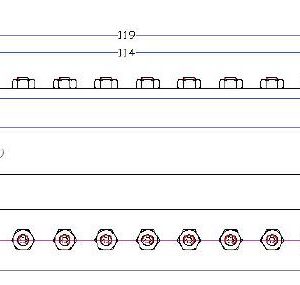

OBR 5500 700 outline Cavity Band Rejection Filter OBR-5500-700

Plot

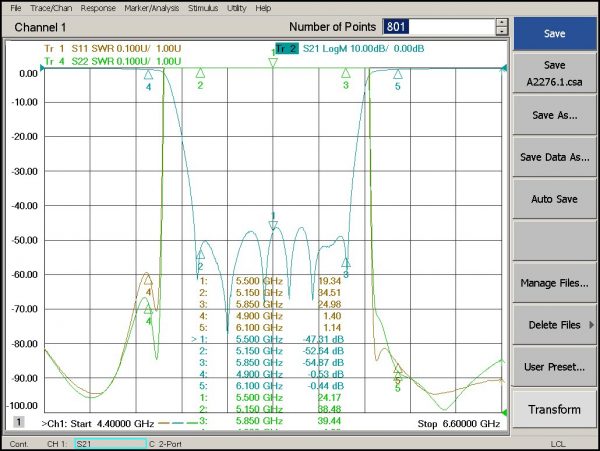

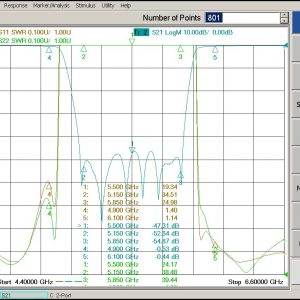

OBR 5500 700 plot1 Cavity Band Rejection Filter OBR-5500-700
