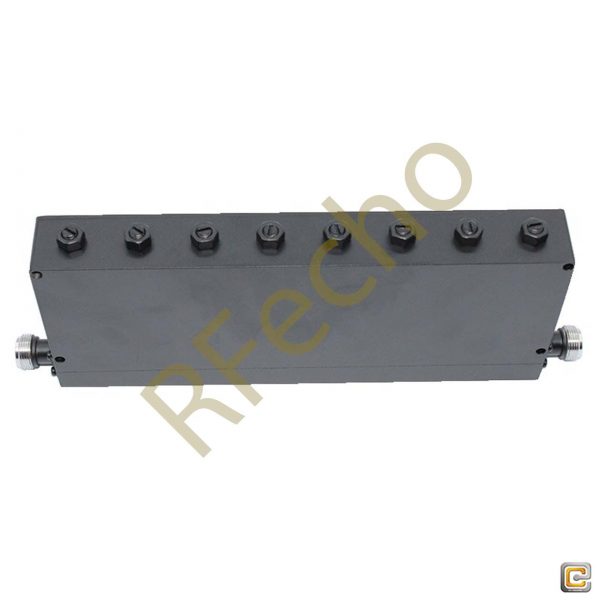

930MHz to 934MHz Cavity Band Stop Filter rejection ≥ 40dB RF Cavity Filter with N Female Connector

930MHz to 934MHz Cavity Band Stop Filter model OHP: 932-4 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This 930MHz to 934MHz Cavity Band Stop Filter manufactured with a stopband frequency from 930MHz to 934MHz and a passband frequency from DC to 1780MHz & 1905MHZ to 5000MHz. RF Cavity Filter provides a nominal insertion loss of ≤2.0dB across its passband and a typical rejection of ≥40. Our 930MHz to 934MHz Cavity Band Stop Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Cavity Filter has Passband VSWR of ≤1.5:1 and Impedance of 50ohms. 930MHz to 934MHz Cavity Band Stop Filter is manufactured with N Female Connector and Net Weight of 0.83Kg. Our Ocean Microwave Band Reject Filter has power Handling of ≤20W. 930MHz to 934MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. 930MHz to 934MHz Cavity Band Stop Filter is ready for shipping worldwide after purchase. Additional specs of this RF Cavity Filter with N Female Connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

Description

OBR-932-4 band-reject filter (also called a band-stop filter or notch filter in narrow stopband) from RFecho is just part of a wide selection of coaxial RF filter products supplied. This RF band reject filter is built from 930MHz to 934MHz with N-Type Female connectors. The N-Type band-reject filter design is rated for a VSWR of 1.5:1 and a maximum power of 20 Watts.

RFecho band-reject / band-stop filters have a minimum stopband frequency of 200 MHz and a maximum stopband frequency of 18GHz. The band-stop / notch filter part number OBR-932-4 has an insertion loss maximum that is 2.0 dB. More RF coaxial band-stop / notch filter specs for this radio frequency component can be found on its notch/rejection RF filter PDF specifications datasheet.

RFecho also stocks a large selection of other band-stop RF filter products that will ship the same day from our location. RF/microwave and millimeter wave cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



Band Reject Filter Datasheet (Click to download)

OBR-932-4

Additional information

Center Frequency (F0) (MHz)

NA

Stop Band Min. Frequency (MHz)

930

Stop Band Max. Frequency (MHz)

934

Stop Band Attenuation (dB)

≥40

Band Min. Frequency (MHz) A

DC

Band Max. Frequency (MHz) A

920

Band Min. Frequency (MHz) B

944

Band Max. Frequency (MHz) B

2200

Pass Band Insertion Loss (dB)

≤2

Impedance (Ω)

50

Power Handling (W)

≤20

Connection Type

N Female
