Ferrite Devices OISC-340360-03-20-28

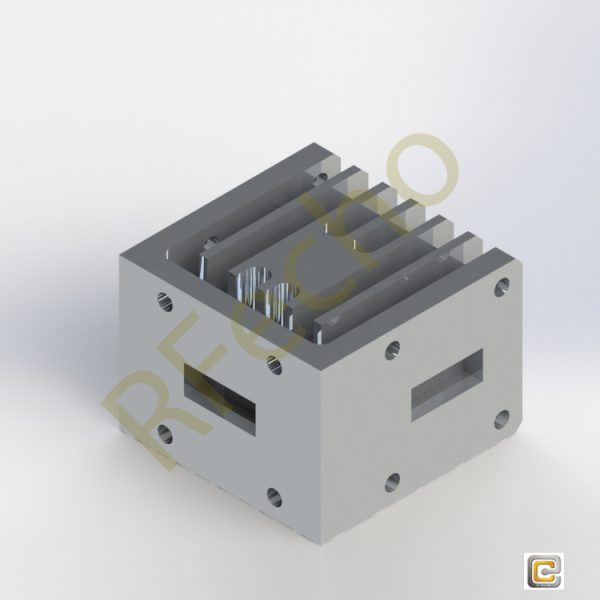

Model OISC-340360-03-20-28 is a Ka band waveguide junction circulatorthat covers the frequency range of 34 to 36GHz.
The waveguide junctioncirculator is designed and manufactured to provide a low insertion loss of0.3dB nominal, a typical isolation of 20dB,andamuch shorter insertionlength for system integration.
The input and output ports are WR-28waveguides with UG-599/U flanges.
The circulator implements a U-shapedmagnet shielding steel cover to protect it from magnetic field interference.
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OIS-340360-05-18-28 is a Ka band waveguide junction circulator that covers the frequency range of 34 to 36GHz.The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 0.3dB nominal, a typical isolation of 20dB, and a much shorter insertion length for system integration. The input and output ports are WR-28 waveguides with UG-599/U flanges. The circulator implements a U-shaped magnet shielding steel cover to protect it from magnetic field interference.
Features Low Insertion Loss Moderate Isolation Compact Configuration
|
Applications Port Isolation Module Integration |
||
|
Part No. |
OIS-340360-05-18-28 |
||
|
RF Frequency Range(GHz) |
34-36 |
||
|
Insertion Loss(dB) |
0.3 |
||
|
Isolation(dB) |
20 |
||
|
VSWR |
1.4:1 |
||
|
Power Handling(W) Specification Temperature Operating Temperature |
3 +25 °C -40°C~+85 °C |
||
|
|
|
||

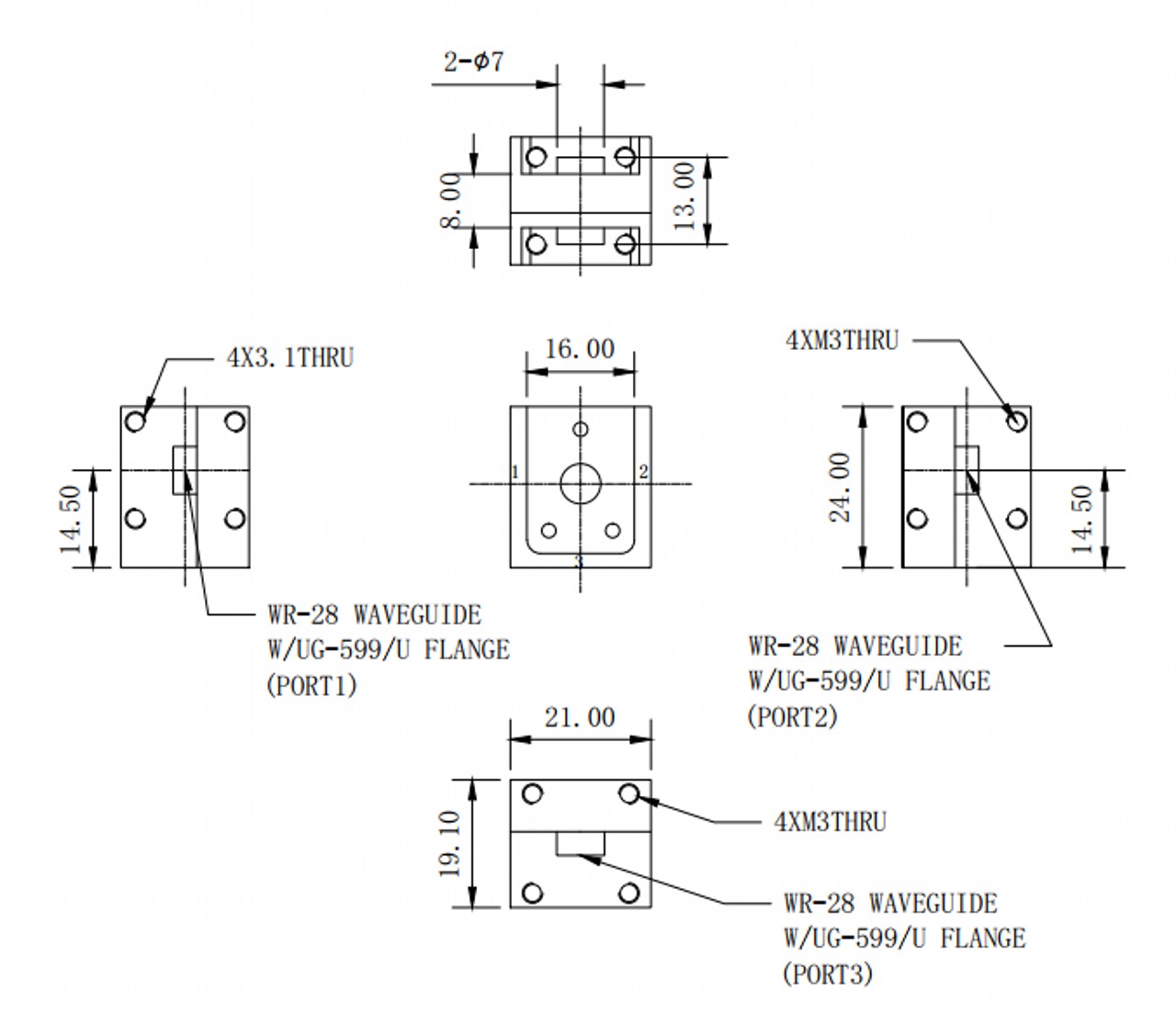

Outline

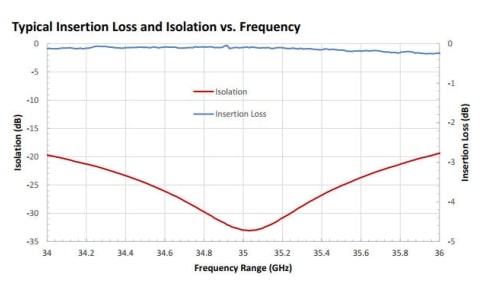

Plot
