Ferrite Devices OIS-290310-03-20-28

Ferrite Devices OIS-290310-03-20-28

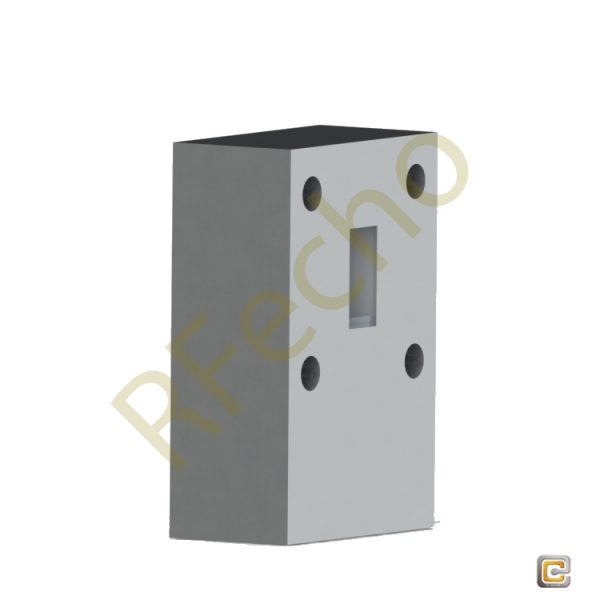

Model OIS-290310-03-20-28 is a Ka band waveguide junction isolatorthat covers the frequency range of 29 to31 GHz.
Compared with a Faradayisolator, the waveguide junction isolator offers a lower insertion loss of 0.3dB typical and a much shorter insertion length for system integration. As atrade off, the waveguide junction isolator only offers a typical isolation of20dB.
The input and output ports are WR-28 waveguides with UG-599/U flanges.

SKU: OIS-290310-03-20-28 Categories: Ferrite Devices, Passive Devices

Description

SPEC

Ferrite Devices



Model OIS-290310-03-20-28 is a Ka band waveguide junction isolator that covers the frequency range of 29 to31GHz.Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.3dB typical and a much shorter insertion length for system integration.



As a trade off, the waveguide junction isolator only offers a typical isolation of

20dB.The input and output ports are WR-28 waveguides with UG-599/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-290310-03-20-28

RF Frequency Range(GHz)

29-31

Insertion Loss(dB)

    0.3

Isolation(dB)

    20

VSWR

    1.4:1

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

2

0.5

+25 °C

-45°C~+85 °C







PDF

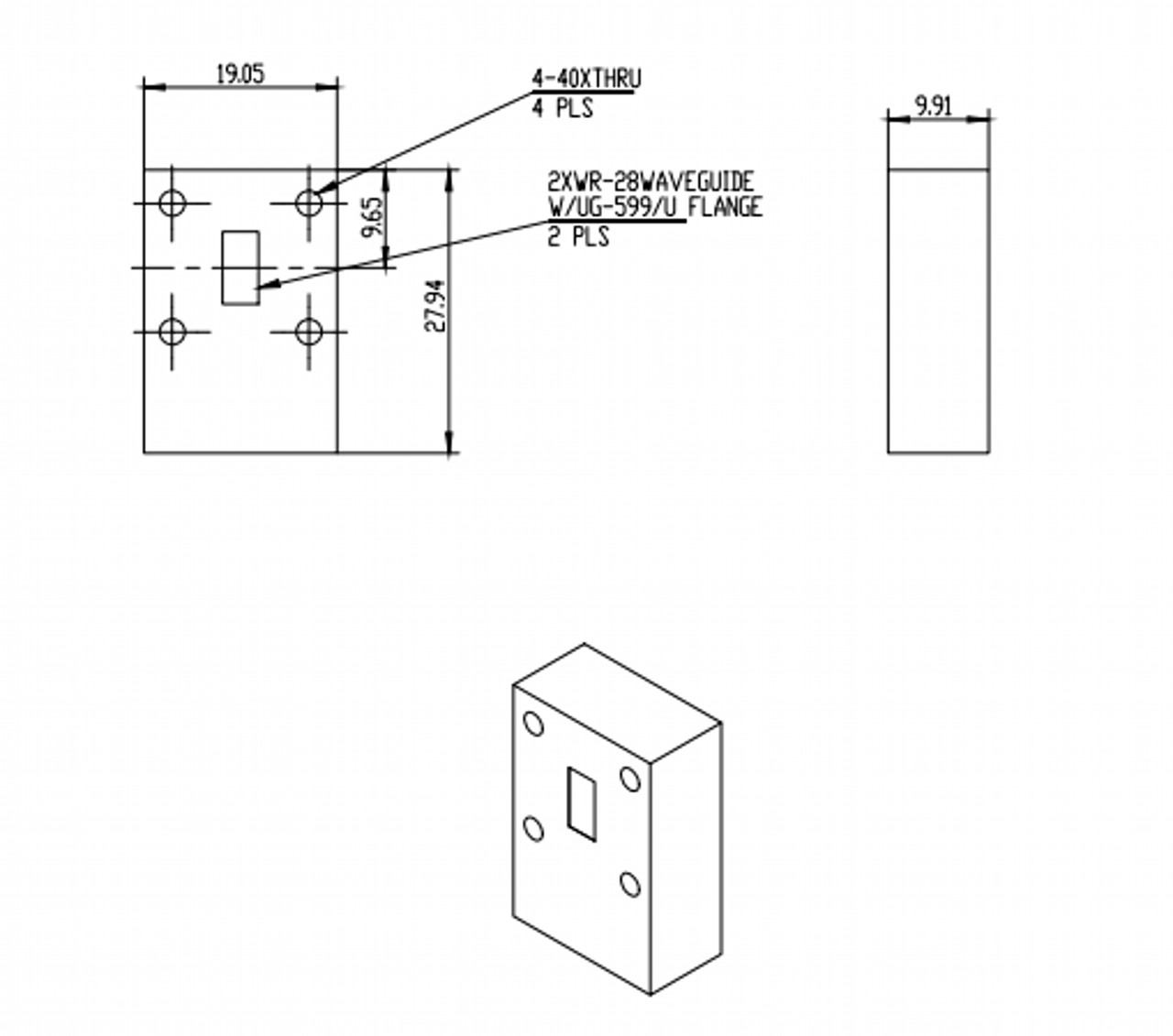

Outline

Ferrite Devices OIS-290310-03-20-28

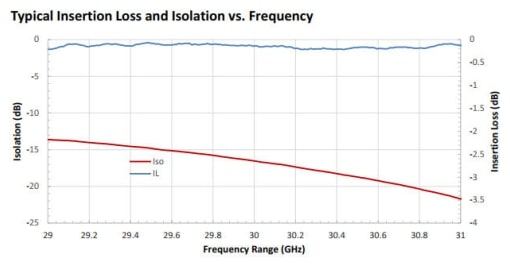

Plot

Ferrite Devices OIS-290310-03-20-28

Additional information

Min. Frequency (GHz)

29

Max. Frequency (GHz)

31

Insertion Loss (dB)

0.3

Isolation (dB)

20

VSWR

1.4:1
