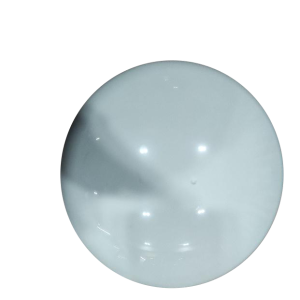

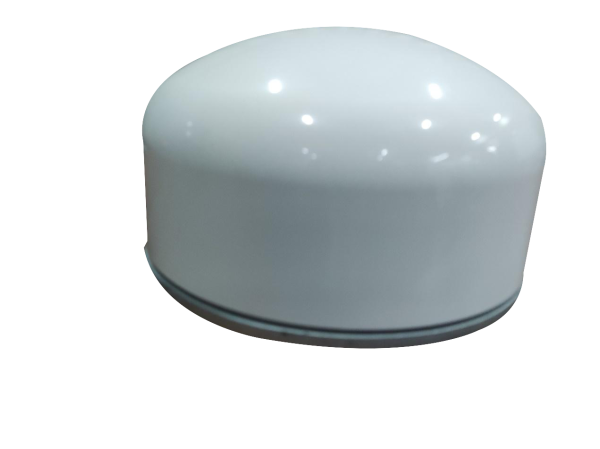

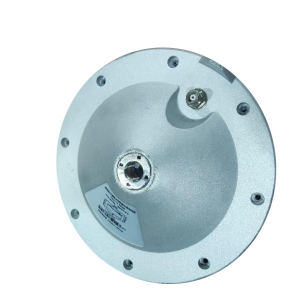

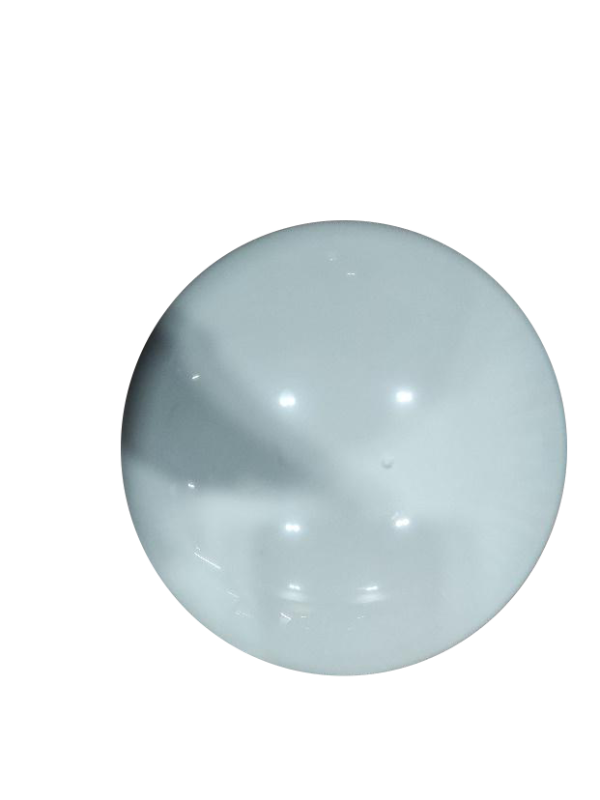

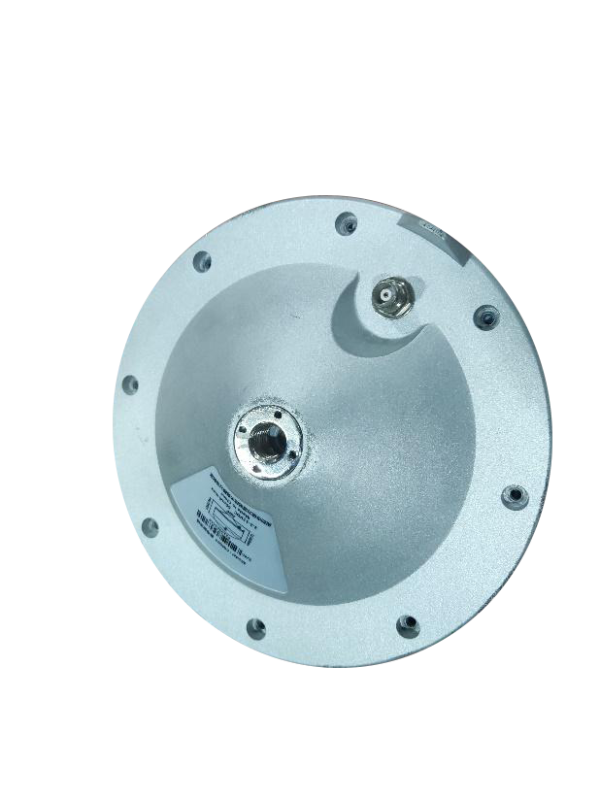

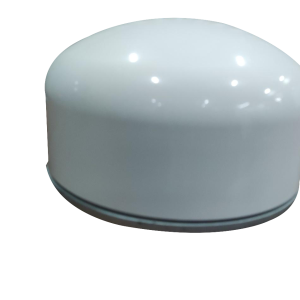

GNSS Reference Station Antenna OGGG-BD-40-A
Frequency Range: BDS: B1/B2/B3; GPS: L1/L2/L5; GLONASS: L1/L2/L3; GALILEO: E1/E5a/E5b/E6
Polarization: Right circular polarization
Max. Gain: 5.5 dBi
Voltage: DC 3.3～12 V
Antenna Axis: ≤ 2 dB
Operating Temperature: -40°C～+85°C
VSWR: ≤ 2
Gain (dBi): 40 ± 2
- Description
- Datasheet
Description
| GPS ANTENNA | |
| GNSS Reference Station Antenna OGGG-BD-40-A | |
| OGGG-BD-40-A | |
| OGGG-BD-40-A is a multi-system full-frequency reference station antenna covering BDS, GPS, GLONASS, and GALILEO; with a unique choke structure design, the product has a stable phase center and good multipath suppression effect, high positioning accuracy, and good low elevation angle reception. The phase center accuracy reaches the sub-millimeter level, high stability, good repeatability, compact size, lightweight structure; with unique choke coil and chokes plate design, with excellent multipath suppression effect; with low elevation angle, high gain, strong satellite tracking capability. In terms of waterproof and dustproof to IP67 level, it can normally work outdoor for long years. | |
| Property | Value |
| Frequency range | BDS：B1/B2/B3 |
| Polarization | Right circular polarization |
| Max. Gain | 5.5dBi |
| Voltage | DC3.3～12V |
| Antenna axis | ≤2dB |
| Operating temperature | -40°C～+85°C |
| VSWR | ≤2 |
| Gain (dBi) | 40±2 |
