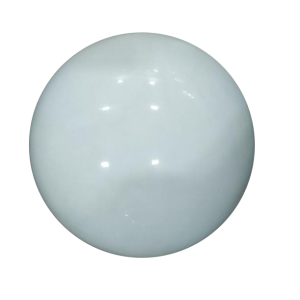

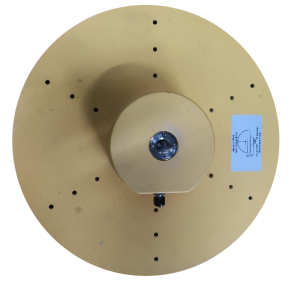

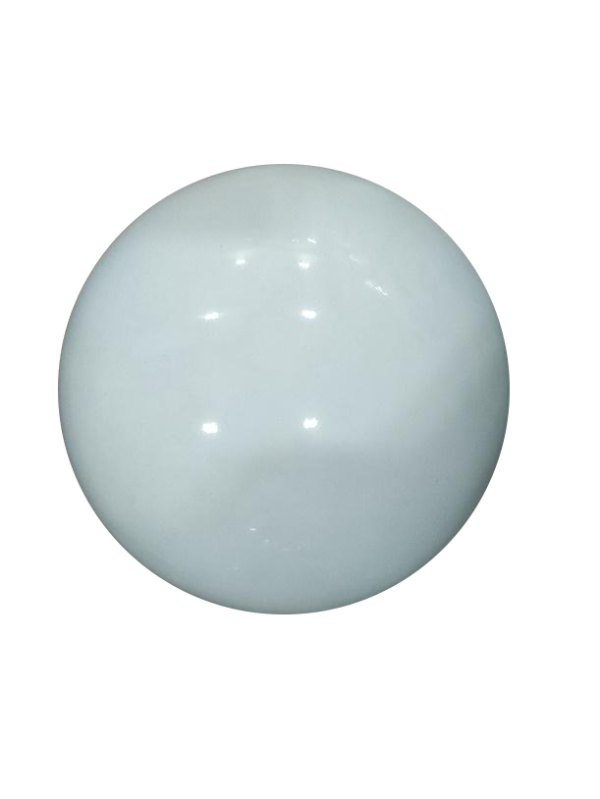

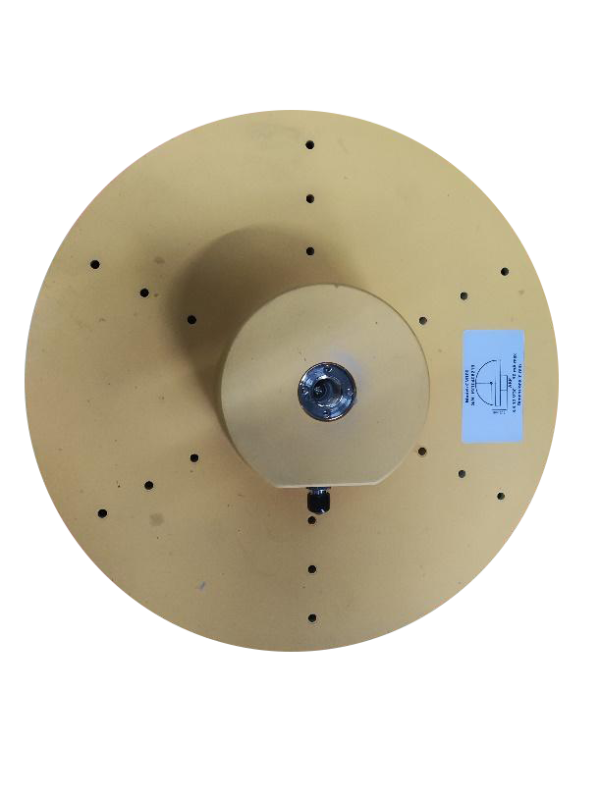

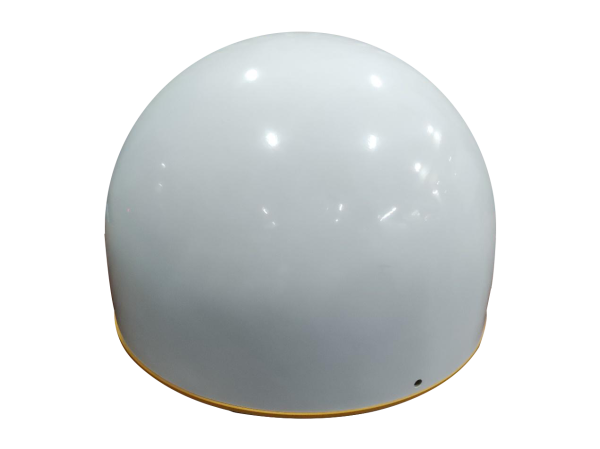

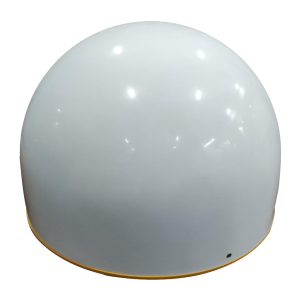

GNSS Reference Station Antenna OGGG-BD-50-A
$1200
Frequency Range: BDS: B1/B2/B3; GPS: L1/L2/L5; GLONASS: L1/L2/L3; GALILEO: E1/E5a/E5b/E6
Gain (dBi): 50 ± 2
Operating Temperature: -40°C~+85°C
VSWR: ≤ 2
Price: $1200
- Description
- Datasheet
- Additional information
Description
GPS ANTENNA |
|
GNSS Reference Station Antenna OGGG-BD-50-A |
|
OGGG-BD-50-A |
|
OGGG-BD-50-A is a multi-system full-frequency reference station antenna covering BDS, GPS, GLONASS, and GALILEO, with a miniaturized 3D choke structure design, with a stable phase center, high positioning accuracy, and good low elevation angle reception. Not only in the phase center accuracy to sub-millimeter level, high stability, good repeatability; and the use of miniaturized 3D choke design, lightweight structure; unique choke and choke plate design is with excellent multipath suppression effect; due to the low elevation angle gain, satellite tracking ability; it is low noise put gain, the cable length can be more than 100 meters; and IP67 level waterproof and dustproof, can be in the outdoor long normal work. |
|
Property |
Value |
Frequency range |
BDS:B1/B2/B3 |
Polarization |
Right circular polarization |
Max. Gain |
6dBi |
Voltage |
DC3.3~12V |
Antenna axis |
≤2dB |
Operating temperature |
-40°C~+85°C |
VSWR |
≤2 |
Gain (dBi) |
50±2 |
Additional information
Weight | 6 kg |
---|---|
Dimensions | 43 × 43 × 35 cm |
Frequency Range | BDS: B1/B2/B3 GPS: L1/L2/L5 GLONASS: L1/L2/L3 GALILEO: E1/E5a/E5b/E6 |
Polarization | |
Max. Gain | 6dBi |
Voltage | DC3.3~12V |
Antenna axis | ≤2dB |
Operating temperature | -40°C~+85°C |
VSWR | ≤2 |
Gain (dBi) | 50±2 |
