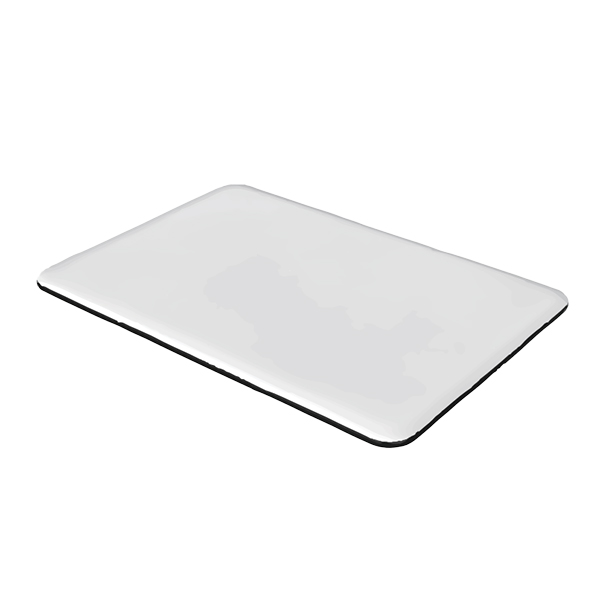

Ku-band 10.7~14.5GHz 1T1R GEO&LEO SATCOM Two-dimensional Full-electric Scanning Active Phased Array Terminal
The Ku-band 2T2R SATCOM Terminal is a high-performance version of the GEO & LEO compatible terminal. It supports GEO satellites like Asia-Pacific 6D/6E and LEO satellites like the Qianfan constellation.
It has a built-in GEO & LEO dual modem and shares a 2T2R two-dimensional full-electric scanning active phased array antenna. It is highly integrated with a phased array antenna, up-down conversion, inertial navigation unit, antenna control unit, modem, and other components, meeting the user’s GEO & LEO satellite network connection needs in the case of mobile communication.
- Description
- Datasheet
- Reviews (0)
Description
The Ku-band 2T2R SATCOM Terminal is a high-performance version of the GEO & LEO compatible terminal. It supports GEO satellites like Asia-Pacific 6D/6E and LEO satellites like the Qianfan constellation.
It has a built-in GEO & LEO dual modem and shares a 2T2R two-dimensional full-electric scanning active phased array antenna. It is highly integrated with a phased array antenna, up-down conversion, inertial navigation unit, antenna control unit, modem, and other components, meeting the user’s GEO & LEO satellite network connection needs in the case of mobile communication.
OKUPA-2110 | |
| Ku-band 10.7~14.5GHz 1T1R GEO&LEO SATCOM Two-dimensional Full-electric Scanning Active Phased Array Terminal | |
Property | Value |
| Antenna Type | Two-dimensional full-electric scanning active phased array antenna |
| Rx Working Frequency | 10.7~12.75GHz |
| Tx Working Frequency | 13.75~14.5GHz |
| Duplex Mode | FDD (Full Duplex) |
| Array Configuration | 2 pcs, with 1Tx and 1 Rx 768-element arrays |
| Polarization | Arbitrary linear polarization/arbitrary circular polarization, switchable |
| Scanning Range (Azimuth) | 0deg ~ 360deg |
| Scanning Range (Elevation) | 0deg ~ 65deg |
| EIRP @0deg Linear Polarization | ≥42dBW |
| EIRP @65deg Linear Polarization | ≥36.5dBW |
| EIRP @0deg Circular Polarization | ≥40dBW |
| EIRP @65deg Circular Polarization | ≥34.5dBW |
| G/T @Broadside (11.7GHz) | ≥9dB/K |
| G/T @65deg (11.7GHz) | ≥2.5dB/K |
| XPD | ≥30 dB@90deg |
| Max Tracking Error | ≤0.5dB |
| GEO Rx IF | 950~2150MHz |
| GEO Tx IF | 950~2400MHz |
| LEO Rx IF | 2.0GHz |
| LEO Tx IF | 4.0GHz |
| WiFi | Support dual-band WiFi function, with accesses: ≥8 |
| Interface (LAN port) | 2 |
| Interface (Power) | 1 |
| Interface (RF Testing port) | 1 |
| Dimensions | ≤700mm x 500mm x 50mm |
| Weight | ≤15kg |
| Operating Voltage | 48V DC, standard 220V AC to 48V power adapter |
| Power Consumption | ≤450W |
| Working Temperature | -40degC~55degC |
| Storage Temperature | -40degC~80degC |
| Humidity | 10%~95%(35degC) |
| Protection | IP65 |
| Wind Resistance | 120km/h |
| Reliability | Shock-resistant, Vibration-resistant, Low-pressure resistant, Solar radiation resistant, Salt-fog resistant |
| Certification | CCC |
Features | |
| Built-in dual modems, compatible with both GEO & LEO satellites. | |
| Suitable for use on various platform such as vehicles, ships, and aircraft | |
| Supports external modem switching, compatible with most Ku-band satellites | |
| Phased array 2D electronic scanning, no mechanical rotation, with low profile and strong reliability | |
| Easy Installation, Plug-and-Play | |
Applications | |
| Built-in dual-band Wi-Fi capability | |
| Stable network with low latency | |
| Maximum wind resistance: 120 km/h | |
| Resistant to shock, vibration, low pressure, solar radiation, and salt spray | |
