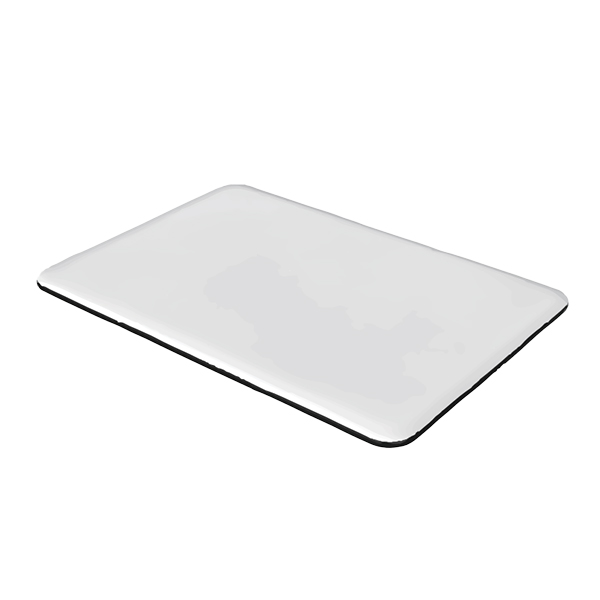

Ku-band 10.7~14.5GHz 2T2R GEO&LEO SATCOM Two-dimensional Full-electric Scanning Active Phased Array Terminal
The Ku-band 2T2R SATCOM Terminal is a high-performance version of the GEO&LEO compatiable terminal. It supports GEO satellites like Asia-Pacific 6D/6E and LEO satellites like Qianfan constellation. It has built-in GEO&LEO dual modems and shares 2T2R two-dimensional full-electric scanning active phased array antenna. It is highly integrated with phased array antenna, up-down conversion, inertial navigation unit, antenna control unit, modem and other components, meeting the user’s GEO&LEO satellite network connection needs in the case of mobile communication.
- Description
- Datasheet
- Reviews (0)
Description
The Ku-band 2T2R SATCOM Terminal is a high-performance version of the GEO&LEO compatiable terminal. It supports GEO satellites like Asia-Pacific 6D/6E and LEO satellites like Qianfan constellation. It has built-in GEO&LEO dual modems and shares 2T2R two-dimensional full-electric scanning active phased array antenna. It is highly integrated with phased array antenna, up-down conversion, inertial navigation unit, antenna control unit, modem and other components, meeting the user’s GEO&LEO satellite network connection needs in the case of mobile communication.
OKUPA-2220 |
|
|
Ku-band 10.7~14.5GHz 2T2R GEO&LEO SATCOM Two-dimensional Full-electric Scanning Active Phased Array Terminal |
|
Property |
Value |
|
Antenna Type |
Two-dimensional full-electric scanning active phased array antenna |
|
Rx Working Frequency |
10.7~12.75GHz |
|
Tx Working Frequency |
13.75~14.5GHz |
|
Duplex Mode |
FDD (Full Duplex) |
|
Array Configuration |
4 pcs, with 2 Tx and 2 Rx 768-element arrays |
|
Polarization |
Arbitrary linear polarization/arbitrary circular polarization, switchable |
|
Scanning Range (Azimuth) |
0deg ~ 360deg |
|
Scanning Range (Elevation) |
0deg ~ 65deg |
|
EIRP @0deg Linear Polarization |
≥48dBW |
|
EIRP @65deg Linear Polarization |
≥42.5dBW |
|
EIRP @0deg Circular Polarization |
≥45dBW |
|
EIRP @65deg Circular Polarization |
≥39.5dBW |
|
G/T @Broadside (11.7GHz) |
≥12dB/K |
|
G/T @65deg (11.7GHz) |
≥5.5dB/K |
|
XPD |
≥30 dB@90deg |
|
Max Tracking Error |
≤0.5dB |
|
GEO Rx IF |
950~2150MHz |
|
GEO Tx IF |
950~2400MHz |
|
LEO Rx IF |
2.0GHz |
|
LEO Tx IF |
4.0GHz |
|
WiFi |
Support dual-band WiFi function, with accesses: ≥8 |
|
Interface (LAN port) |
2 |
|
Interface (Power) |
1 |
|
Interface (RF Testing port) |
1 |
|
Dimensions |
≤1050mm x 700mm x 50mm |
|
Weight |
≤25kg |
|
Operating Voltage |
48V DC, standard 220V AC to 48V power adapter |
|
Power Consumption |
≤700W |
|
Working Temperature |
-40degC~55degC |
|
Storage Temperature |
-40degC~80degC |
|
Humidity |
10%~95%(35degC) |
|
Protection |
IP65 |
|
Wind Resistance |
120km/h |
|
Reliability |
Shock-resistant, Vibration-resistant, Low-pressure resistant, Solar radiation resistant, Salt-fog resistant |
|
Certification |
CCC |
Features |
|
|
Built-in dual modems, compatible with both GEO & LEO satellites. |
|
|
Suitable for use on various platform such as vehicles, ships, and aircraft. |
|
|
Supports external modem switching, compatible with most Ku-band satellites. |
|
|
Phased array 2D electronic scanning, no mechanical rotation, with low profile and strong reliability. |
|
|
Easy Installation, Plug-and-Play. |
|
Applications |
|
|
Built-in dual-band Wi-Fi capability |
|
|
Stable network with low latency |
|
|
IP65 protection |
|
|
Maximum wind resistance: 120 km/h |
|
|
Resistant to shock, vibration, low pressure, solar radiation, and salt spray |
|
