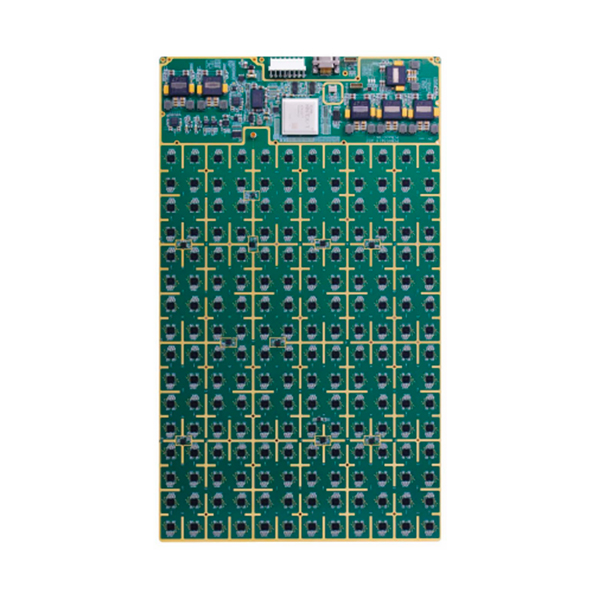

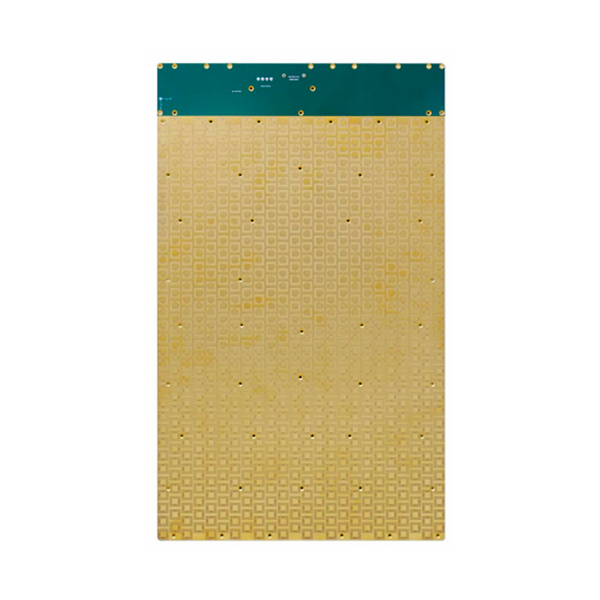

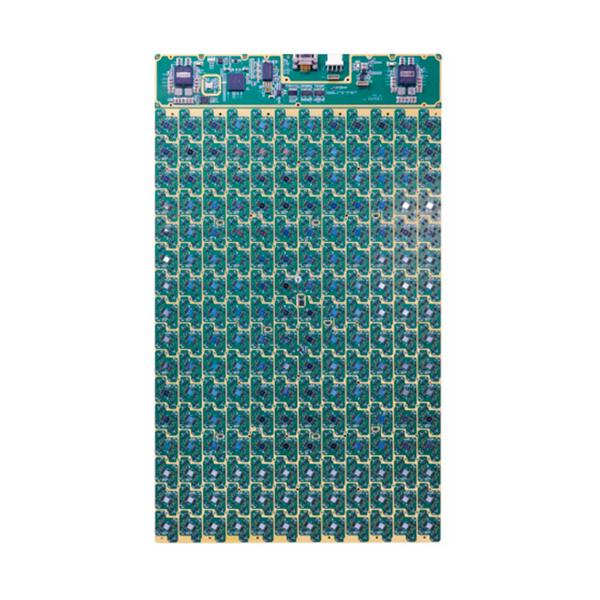

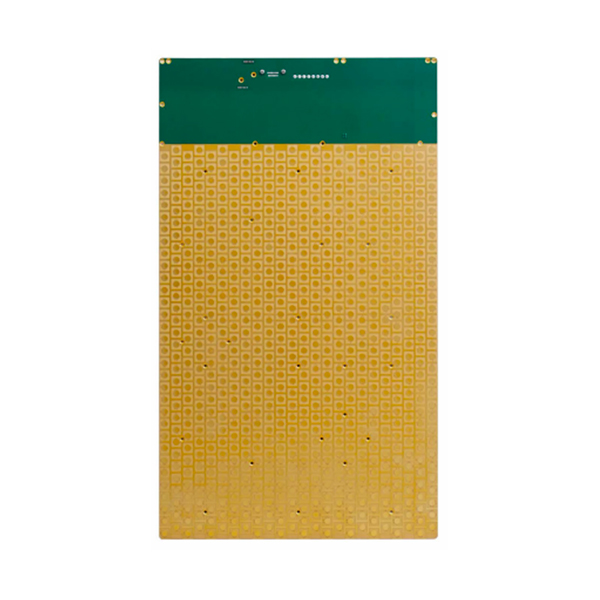

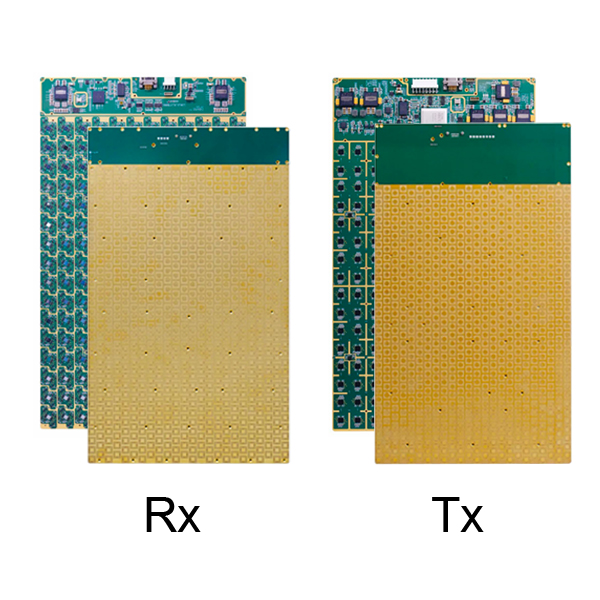

Ku-band 10.7~14.5GHz 768-element Two-dimensional Full-electric Scanning Active Phased Array Subarray
This Ku-band phased array subarray integrates 768 receiving elements and adopts 2D electronic scanning to realize automatic satellite alignment and fast tracking. With a slim and compact design, it supports flexible splicing and expansion to adapt to various application scenarios. Equipped with fully China-made components and powered by 12V, it works stably and reliably in harsh wide-temperature environments ranging from -40℃ to 70℃.
- Description
- Datasheet
- Reviews (0)
Description
This Ku-band phased array subarray integrates 768 receiving elements and adopts 2D electronic scanning to realize automatic satellite alignment and fast tracking. With a slim and compact design, it supports flexible splicing and expansion to adapt to various application scenarios. Equipped with fully China-made components and powered by 12V, it works stably and reliably in harsh wide-temperature environments ranging from -40℃ to 70℃.
OKUPA-1768 | |
| Ku-band 10.7~14.5GHz 768-element Two-dimensional Full-electric Scanning Active Phased Array Subarray | |
Property | Value |
| Rx Working Frequency | 10.7GHz~12.7GHz |
| Tx Working Frequency | 13.7GHz~14.5GHz |
| Scanning Range (Azimuth) | 0~360deg |
| Scanning Range (Off-axis angle) | ±70deg |
| Rx G/T (Normal) @40K Background Noise | ≥9.0dB/K@11.7GHz |
| Rx Polarization | LP, CP |
| Tx EIRP(P-1dB Normal) @14.1GHz (LP) | ≥42.0dBW |
| Tx EIRP(P-1dB Normal) @14.1GHz (CP) | ≥39.0dBW |
| Subarray Gain @11.7GHz(Normal) | ≥60.0dB |
| Scanning Loss @30deg | ≤2.5dB |
| Scanning Loss @45deg | ≤3.5dB |
| Scanning Loss @60deg | ≤5.5dB |
| Scanning Loss @70deg | ≤7.5dB |
| Rx Beam Width Horizontal | 3.3±0.5deg@11.7GHz |
| Rx Beam Width Vertical | 4.9±0.5deg@11.7GHz |
| Tx Beam Width Horizontal | 3.2deg±0.5deg@14.1GHz |
| Tx Beam Width Vertical | 4.5deg±0.5deg@14.1GHz |
| Pointing Accuracy | ≤ 1/8 HPBW |
| Sidelobe Suppression | ≥12dB@Normal |
| Polarization | ACP/ALP |
| Cross Polarization Isolation | ≥25dB@Linear Polarization Normal Direction |
| Polarization Switching Time | ≤0.5ms |
| Beam Switching Time | ≤0.3ms |
| Input Voltage | DC12V±1V |
| Rx Power Consumption | ≤90.0W |
| Tx Power Consumption | ≤200.0W |
Features | |
| Adopts AoB architecture, integrating phased array antenna and beam control. | |
| Suitable for use on various platform such as vehicles, ships, and aircraft. | |
| Supports LHCP/RHCP switchable polarization | |
| 2D electronic scanning of phased array, no mechanical rotation, low profile and high reliability. | |
| Supports TDD or FDD operating modes | |
Applications | |
| Schematic Diagram 1T1R Terminal | |
| Schematic Diagram 2T2R Terminal | |
