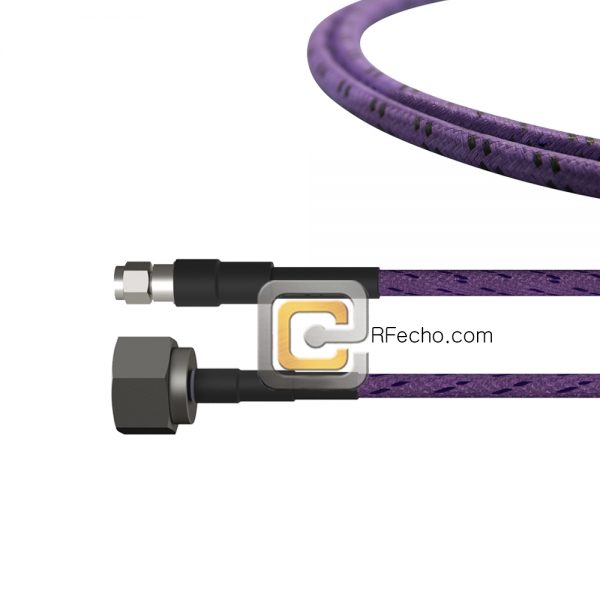

Flexible Low Loss — LL142 Armored RF Cable

ll142 n tnc plain transparent wm.png Flexible Low Loss — LL142 RF Cable
ll142 sma tnc plain transparent wm.png Flexible Low Loss — LL142 RF Cable
0 out of 5
( There are no reviews yet. )

$116.09 – $485.21

E-Testing ECO

N male to SMA male · 18 GHz

F038-291S0-321S0-180-C

SKU: F038-291S0-321S0-180-C Categories: E-Testing ECO, LL142, RF Cables
Add to Wishlist

Description

Technical specifications

18 GHzMaximum frequency
LL142Flexible coaxial cable
Ø 4.95 mmBase cable jacket diameter
End A
N male, straight
End B
SMA male, straight
Armour
Composite
Assembly insertion loss
Confirm for required length and frequency
Base cable bend radius
25.4 mm
Typical cable attenuation at 18 GHz
1.12 dB/m

Cable details

LL142 armoured cable bend detail
Armoured cable routing · Illustrative bend.
N straight male connector close-up
N male
SMA straight male connector close-up
SMA male

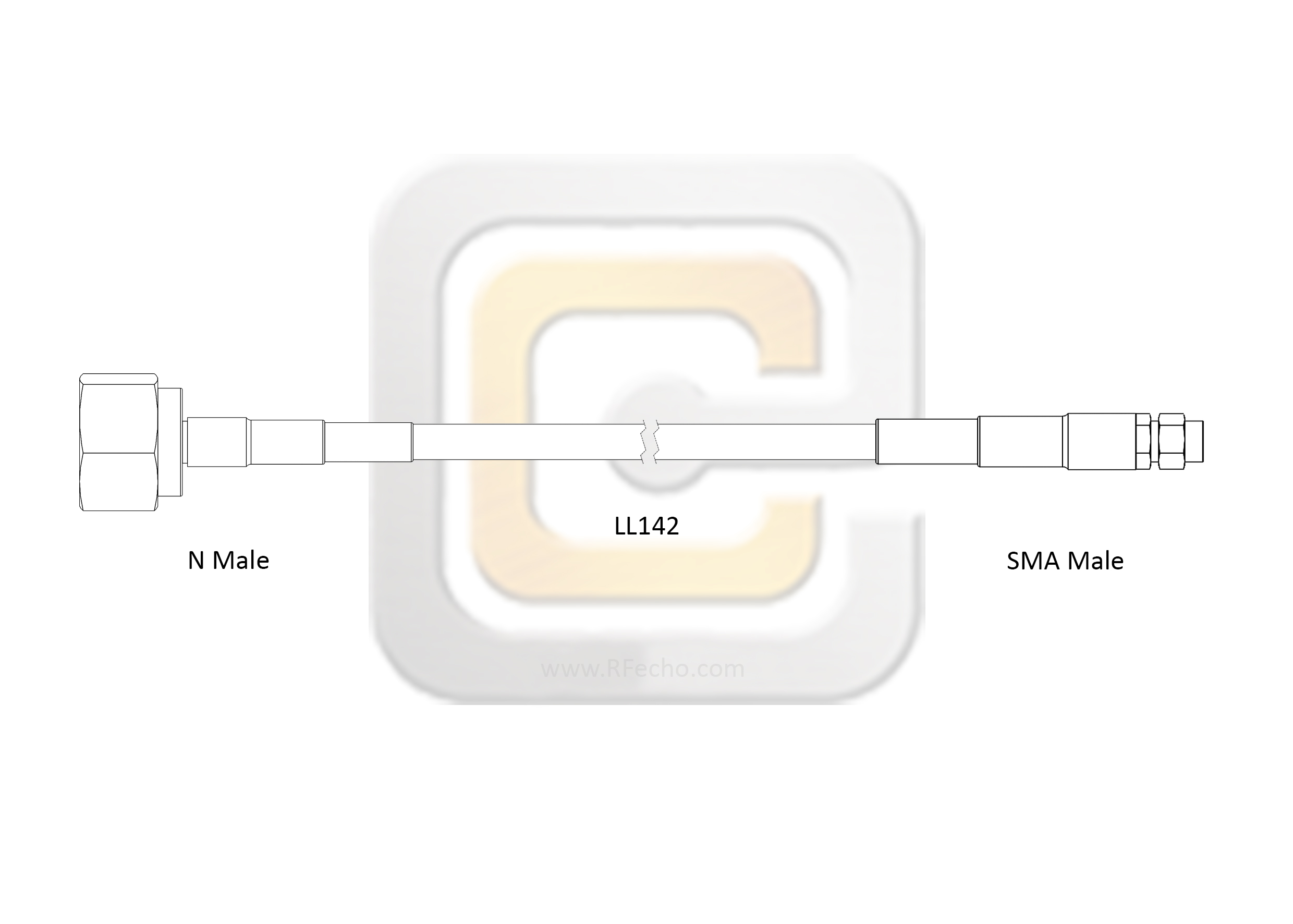

N male  —  LL142  —  SMA male

Include your required cable length and operating frequency when requesting a quote.

Cable cutaway

LL142 base cable cutaway
Illustrative base cable construction. Layer thicknesses are schematic.

Typical attenuation

LL142 Typical attenuation
Base cable only. Values exclude connector losses.
