Low Loss SMA Male to N Female Bulkhead, 18 GHz, LL142 Coax and RoHS

Low Loss SMA Male to N Female Bulkhead, 18 GHz, LL142 Coax and RoHS

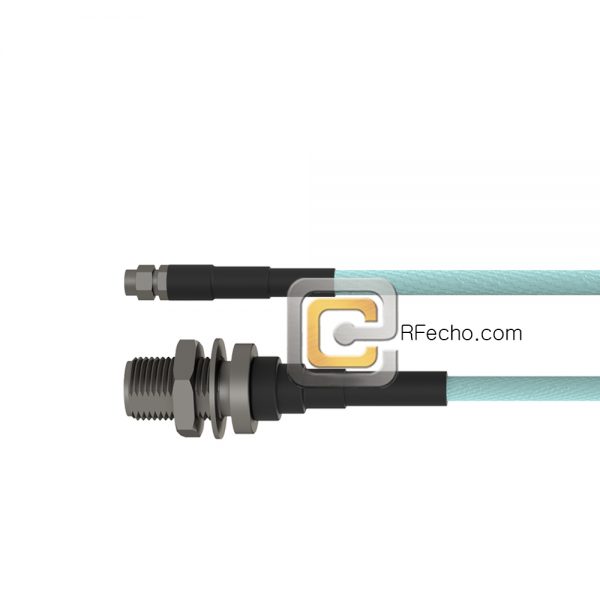

RF cable assembly part number F038-321S0-290S1-180-N is a low loss SMA Male to N Female Bulkhead coaxial cable. RFecho has huge variety of coaxial cables for all types of applications including radio, antenna and interconnect with RF components. Low loss SMA Male to N Female cable LL142 coax and RoHS, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.

This RFecho’s RF coaxial assembly is manufactured with SMA type cable connection on one end and a N type cable connection on the other end. Our type SMA cable assembly has a Male gender on end one and Female on other two. Rfecho type SMA Male to type N Female cable assembly F038-321S0-290S1-180-N is built with LL142 coax and it is a flexible design. RFecho is where to buy a high-quality type SMA Male to N Female cable assembly for quick shipment worldwide.

RFecho also have an extensive selection of low to high frequency coaxial cables that will ship from our warehouse. Custom cable assemblies are also available on request.

SKU: F038-321S0-290S1-180-N Categories: E-Testing ECO, LL142, RF Cables

Description

PDF

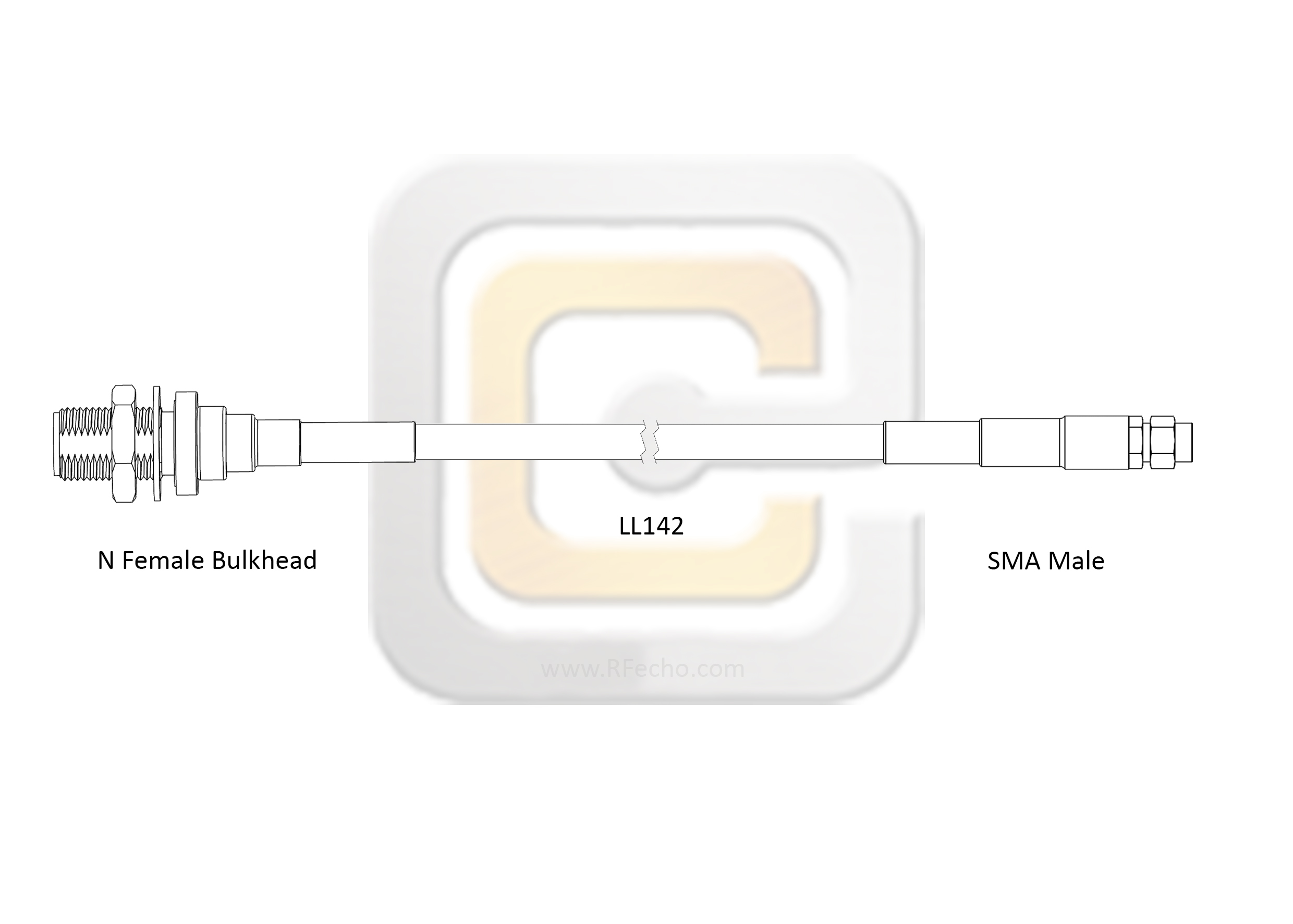

Outline

Additional information

Cable Type

LL142

Cable Coax Type

Flexible

Cable Armour

None

Connector 1

SMA

Connector 1 Gender

Male

Connector 1 Body Style

Straight

Connector 1 Mounting Method

None

Connector 1 Connection Method

Standard

Connector 2

N

Connector 2 Gender

Female

Connector 2 Body Style

Straight

Connector 2 Mounting Method

Bulkhead

Connector 2 Connection Method

Standard
