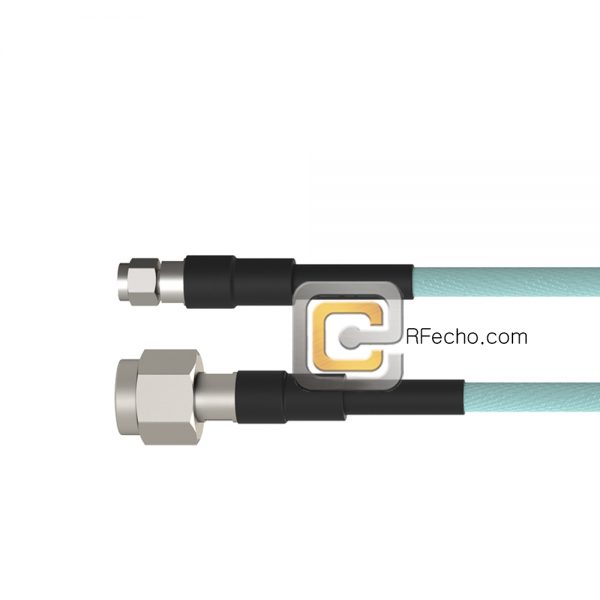

Flexible Low Loss — LL142 RF Cable

$93.77 – $391.44

E-Testing ECO

TNC male to SMA male · 11 GHz

F038-411S0-321S0-110-N

SKU: F038-411S0-321S0-110-N Categories: E-Testing ECO, LL142, RF Cables

Description

Technical specifications

11 GHzMaximum frequency
LL142Flexible coaxial cable
Ø 4.95 mmBase cable jacket diameter
End A
TNC male, straight
End B
SMA male, straight
Armour
None
Assembly insertion loss
Confirm for required length and frequency
Base cable bend radius
25.4 mm
Typical cable attenuation at 18 GHz
1.12 dB/m

Cable details

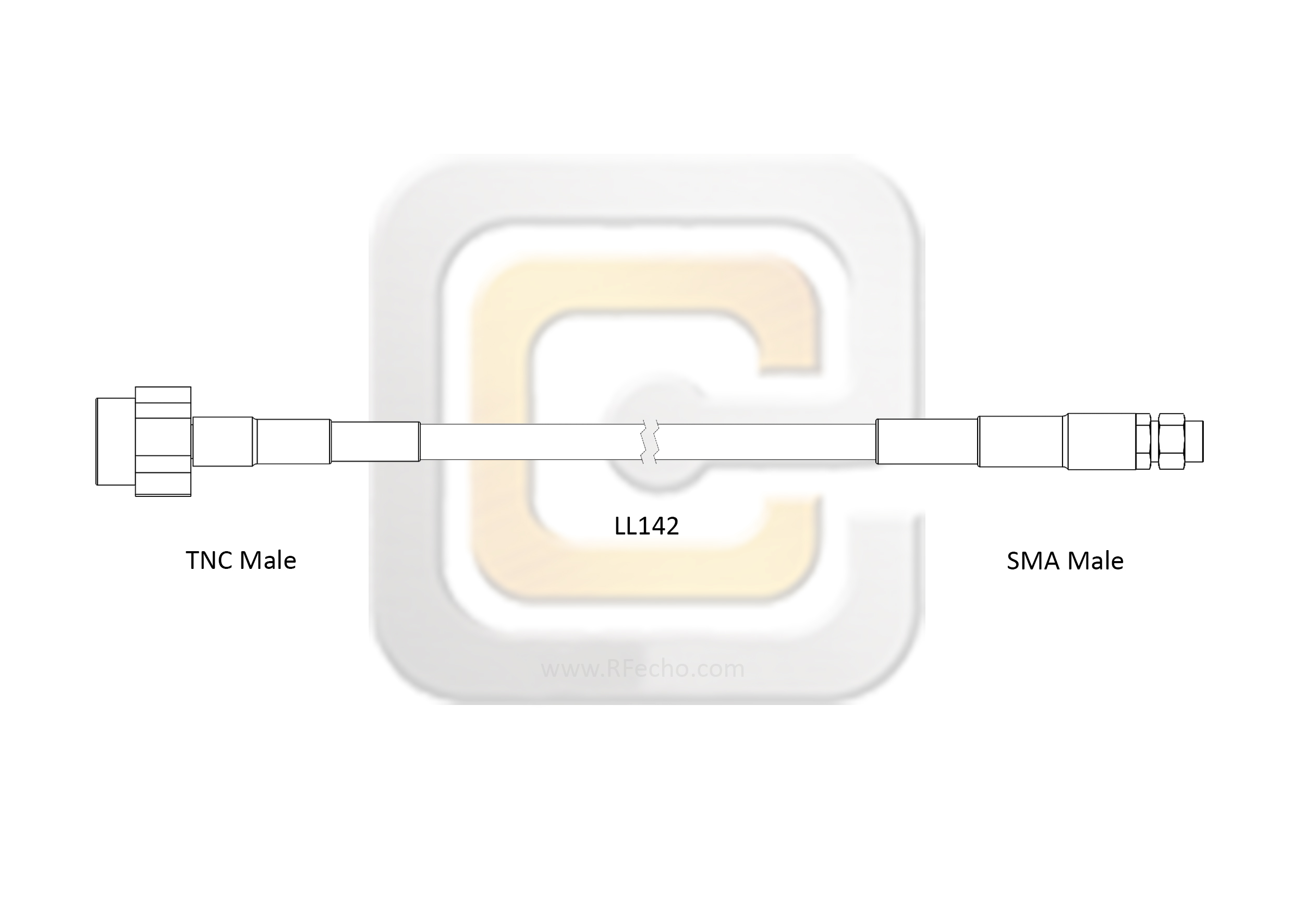

TNC male — LL142 — SMA male

LL142 plain cable routing
Cable routing · Cable family routing illustration. See connector close-ups for this SKU.
TNC straight male connector close-up
TNC male · Straight connector.
SMA straight male connector close-up
SMA male · Straight connector.

Cable cutaway

LL142 construction cutaway
Illustrative cable construction. Layer thicknesses are schematic.

Loss versus frequency

LL142 loss versus frequency
Typical base cable attenuation. The assembly frequency rating is listed above. Total insertion loss depends on length, frequency and connectors.
