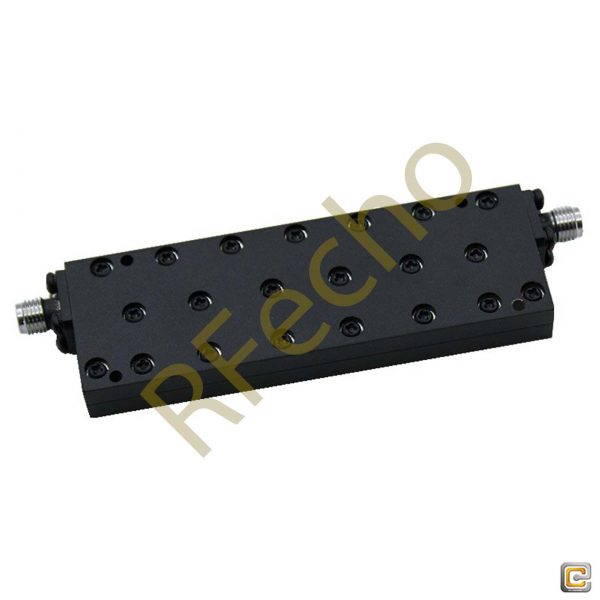

RF Microwave Low Pass Filter model OLP-1000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Microwave Low Pass Filter Manufactured with a passband frequency from DC to 1.0GHz and a rejection frequency 1.3GHz to 4.2GHz. Our RF Cavity Filter provides a nominal insertion loss of ≤1.0dB @ DC~0.9GHz and ≤1.5dB @ 0.9~1.0GHz across its passband and a typical rejection of ≥ 70dB. Since the high end cutoff frequency of RF Microwave Low Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Microwave Low Pass Filter has passband VSWR ≤1.3:1 and power handling of ≤15W. RF Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.06 Kg.
DC to 1.0GHz Ocean Low Pass Cavilty filter from RFecho is just one part in a large selection of our RF Components. Our DC to 1.0GHz RF Microwave Low Pass Filter is ready for shipping worldwide after purchase. Additional specs of this RF Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-1000 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

Low Pass Cavity Filter – OLP-1000:

  • Cut Off Frequency: 1GHz,
  • Pass Band Frequency:  DC 1.0GHz,
  • Pass Band Insertion Loss: ≤1.0dB @ DC~0.9GHz | ≤1.5dB @ 0.9~1.0GHz,
  • Pass Band VSWR: ≤1.3:1,
  • Rejection: ≥70dB @ 1.3~4.2GHz.

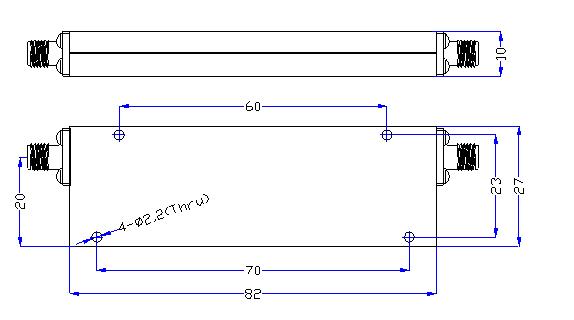

Outline

DC-1.0GHz, Rejection: ≥70dB @ 1.3~4.2GHz, Low Pass Cavity Filter OLP-1000 01

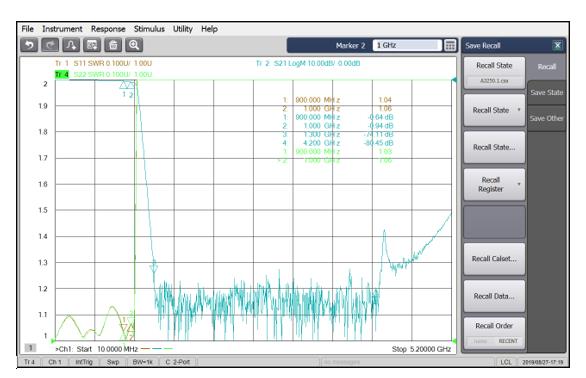

Plot

DC-1.0GHz, Rejection: ≥70dB @ 1.3~4.2GHz, Low Pass Cavity Filter OLP-1000 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

1

Cut Off Frequency (GHz)

1

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

DC

Max. 1.0 dB Insertion Loss

0.9 GHz

Min. 1.5 dB Insertion Loss

0.9 GHz

Max. 1.5 dB Insertion Loss

1 GHz

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.3:1

Stop Band Attenuation (GHz)

≥70dB @ 1.3 – 4.2

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
