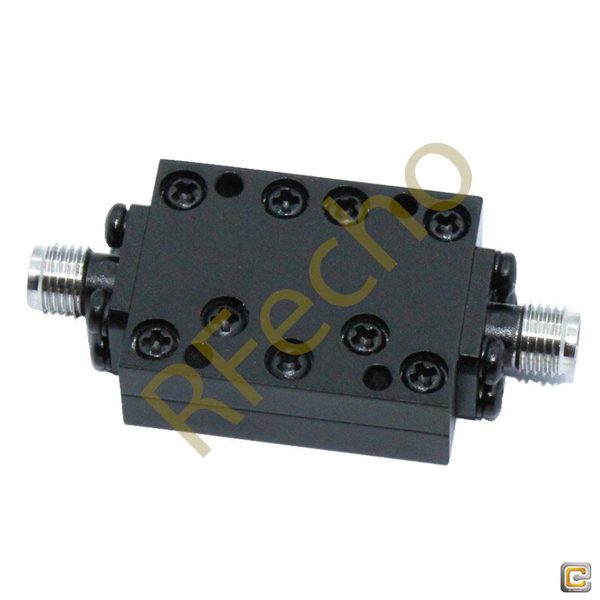

Passive Low Pass Cavity Filter DC-10GHz Microwave Low Pass Filter Rejection ≥ 30dB @ 10.9GHz-18.5GHz with SMA Female Connector

0 out of 5

Passive Low Pass Cavity Filter model OLP-10000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This Passive Low Pass Cavity Filter Manufactured with a passband frequency from DC to 10GHz and a rejection frequency 10.9GHz to 18.5GHz. Our Microwave Low Pass Filter provides a nominal insertion loss of 1.0dB @ DC~9.9GHz | 1.5dB @ 9.9~10GHz across its passband and a typical rejection of ≥ 30dB. Since the high end cutoff frequency of Passive Low Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Passive Low Pass Cavity Filter has passband VSWR ≤1.4:1 and power handling of ≤15W. Microwave Low Pass Filter is manufactured with SMA Female Connector and Net weight of 0.020 Kg.
DC to 10GHz Ocean Low Pass Cavilty filter from RFecho is just one part in a large selection of our RF Components. Our DC to 10GHz Passive Low Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Microwave Low Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-10000 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

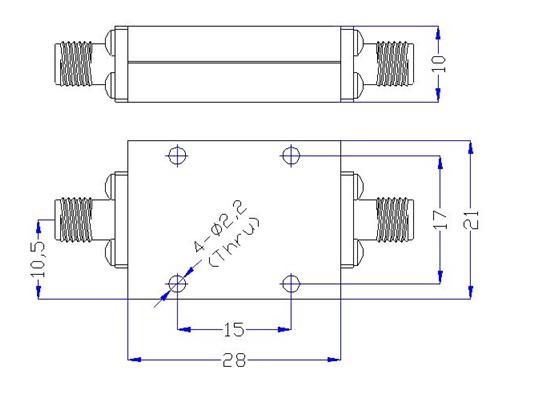

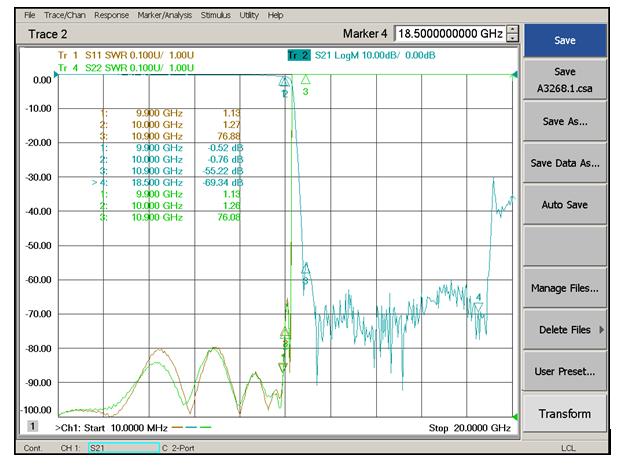

Low Pass Cavity Filter – OLP-10000:

  • Cut Off Frequency: 10.0GHz,
  • Pass Band Frequency:  DC-10.0GHz,
  • Pass Band Insertion Loss: 1.0dB @ DC~9.9GHz | 1.5dB @ 9.9~10GHz,
  • Pass Band VSWR: ≤1.4:1,
  • Rejection: ≥30dB @ 10.9~18.5GHz.

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

10

Cut Off Frequency (GHz)

10

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

DC

Max. 1.0 dB Insertion Loss

9.9 GHz

Min. 1.5 dB Insertion Loss

9.9 GHz

Max. 1.5 dB Insertion Loss

10 GHz

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.4:1

Stop Band Attenuation (GHz)

≥30dB @ 10.9 – 18.5

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Black Paint
