DC-1.4GHz, Rejection: ≥35dB @ 1.6~2.0GHz, Low Pass Cavity Filter OLP-1400

DC-1.4GHz, Rejection: ≥35dB @ 1.6~2.0GHz, Low Pass Cavity Filter OLP-1400

0 out of 5

OLP-1400:

  • Cut Off Frequency: 1.4GHz,
  • Pass Band Frequency:  DC-1.4GHz,
  • Pass Band Insertion Loss: ≤2.5dB,
  • Pass Band VSWR: ≤1.5:1,
  • Rejection: ≥35dB @ 1.6~2.0GHz.
SKU: OLP-1400 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

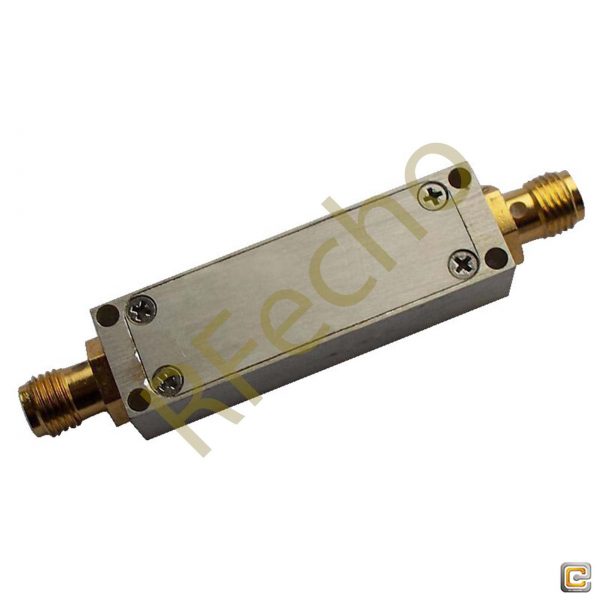

Low Pass Cavity Filter – OLP-1400:

  • Cut Off Frequency: 1.4GHz,
  • Pass Band Frequency:  DC-1.4GHz,
  • Pass Band Insertion Loss: ≤2.5dB,
  • Pass Band VSWR: ≤1.5:1,
  • Rejection: ≥35dB @ 1.6~2.0GHz.

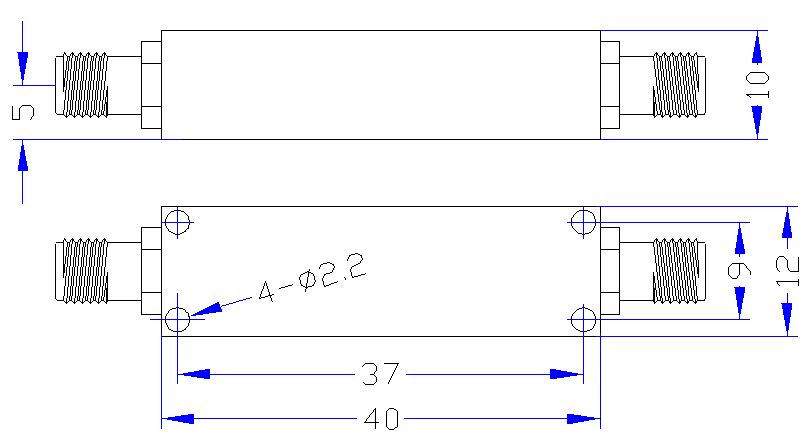

Outline

DC-1.4GHz, Rejection: ≥35dB @ 1.6~2.0GHz, Low Pass Cavity Filter OLP-14000 01

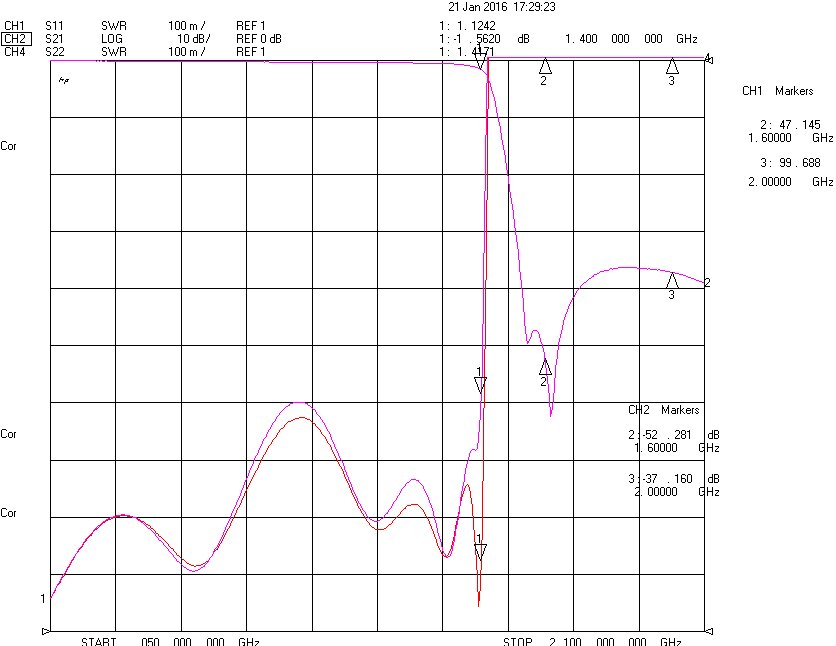

Plot

DC-1.4GHz, Rejection: ≥35dB @ 1.6~2.0GHz, Low Pass Cavity Filter OLP-14000 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

1.4

Cut Off Frequency (GHz)

NA

Pass Band Insertion Loss (dB)

≤2.5dB

Min. 1.0 dB Insertion Loss

NA

Max. 1.0 dB Insertion Loss

NA

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

NA

Stop Band Attenuation (GHz)

≥35dB @ 1.6 – 2.0

Impedance (Ω)

NA

Power Handling (W)

1

Connection Type

SMA-Female

Surface Finish

The Original Silver Color
