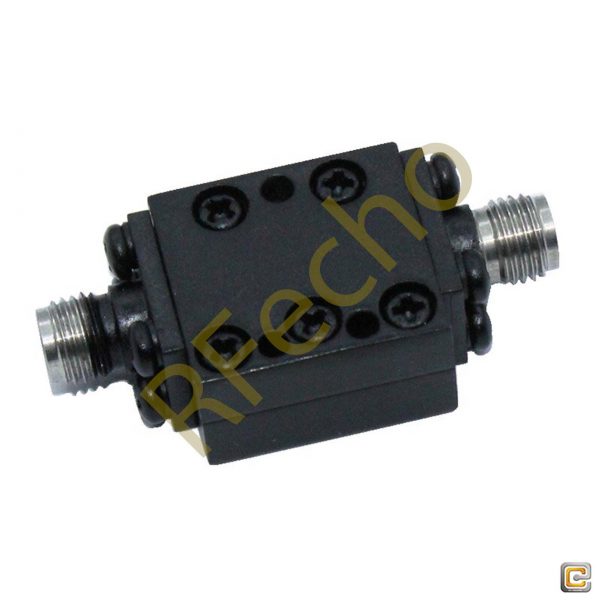

RF cavity passive low pass filter DC-18GHz RF low pass microwave filter Rejection ≥50dB @ 19.1~26GHz with SMA Female Connector

0 out of 5

RF Cavity Passive Low Pass Filter model OLP-18000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Cavity Passive Low Pass Filter Manufactured with a passband frequency from DC to 18GHz and a rejection frequency 19.1GHz to 26GHz. Our RF Low Pass Microwave Filter provides a nominal insertion loss of ≤1.0dB @ DC~17.3GHz | ≤3.0dB @ 17.3~18GHz across its passband and a typical rejection of ≥ 50dB. Since the high end cutoff frequency of RF Cavity Passive Low Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Cavity Passive Low Pass Filter has passband VSWR ≤1.6:1 and power handling of ≤15W. RF Low Pass Microwave Filter is manufactured with SMA Female Connector and Net weight of 0.0135Kg.
DC to 18GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 18GHz RF Cavity Passive Low Pass Filter is ready for shipping worldwide after purchase. Additional specs of this RF Low Pass Microwave Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-18000 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

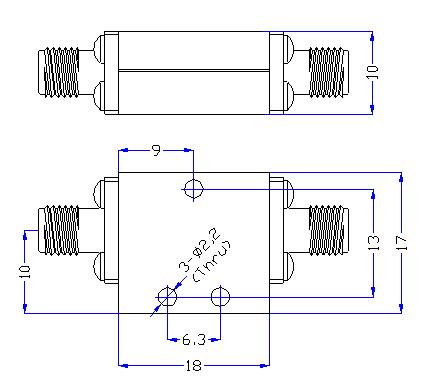

Low Pass Cavity Filter – OLP-18000:

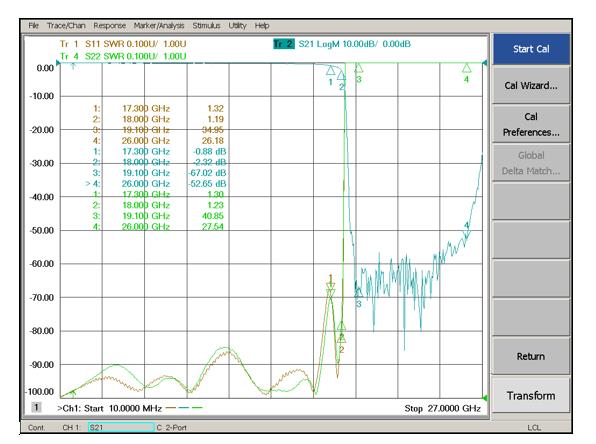

  • Cut Off Frequency: 18GHz,
  • Pass Band Frequency:  DC-18GHz,
  • Pass Band Insertion Loss: ≤1.0dB @ DC~17.3GHz | ≤3.0dB @ 17.3~18GHz,
  • Pass Band VSWR: ≤1.6:1,
  • Rejection: ≥50dB @ 19.1~26GHz.

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

18

Cut Off Frequency (GHz)

18

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

DC

Max. 1.0 dB Insertion Loss

17.3 GHz

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.6:1

Stop Band Attenuation (GHz)

≥50dB @ 19.1 – 26

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
