RF low pass cavity passive filter DC-19GHz Microwave low pass cavity filter Rejection ≥50dB @ 20.1~26GHz with SMA Female Connector

0 out of 5

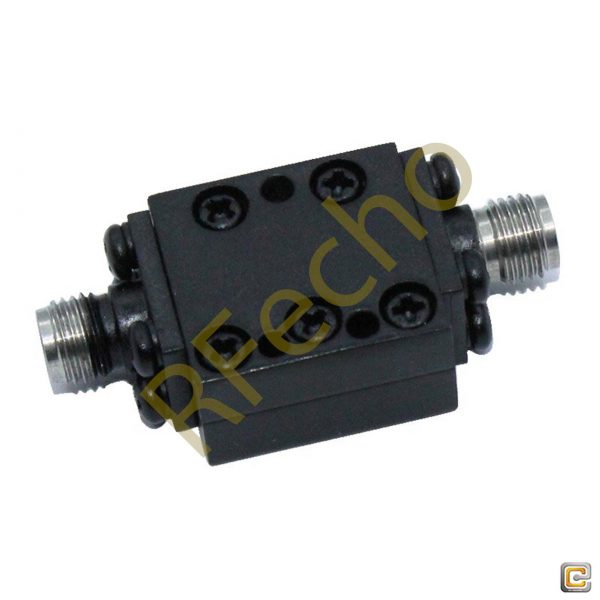

RF Low Pass Cavity Passive Filter model OLP-19000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Low Pass Cavity Passive Filter Manufactured with a passband frequency from DC to 19GHz and a rejection frequency 20.1GHz to 26GHz. Our Microwave Low Pass Cavity Filter provides a nominal insertion loss of ≤1.0dB @ DC~18.2GHz | ≤3.0dB @ 18.2~19GHz across its passband and a typical rejection of ≥ 50dB. Since the high end cutoff frequency of RF Low Pass Cavity Passive Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Low Pass Cavity Passive Filter has passband VSWR ≤1.6:1 and power handling of ≤15W. Microwave low pass cavity Filter is manufactured with SMA Female Connector and Net weight of 0.0135Kg. DC to 19GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 19GHz RF Low Pass Cavity Passive Filter is ready for shipping worldwide after purchase. Additional specs of this Microwave Low Pass Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-19000 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

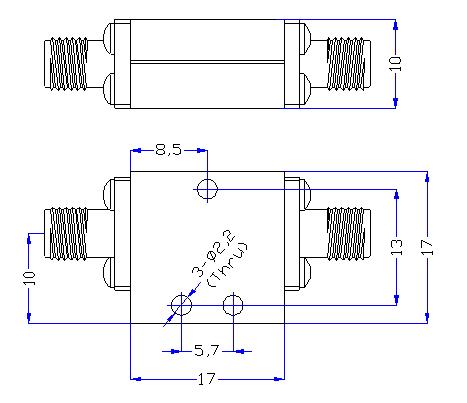

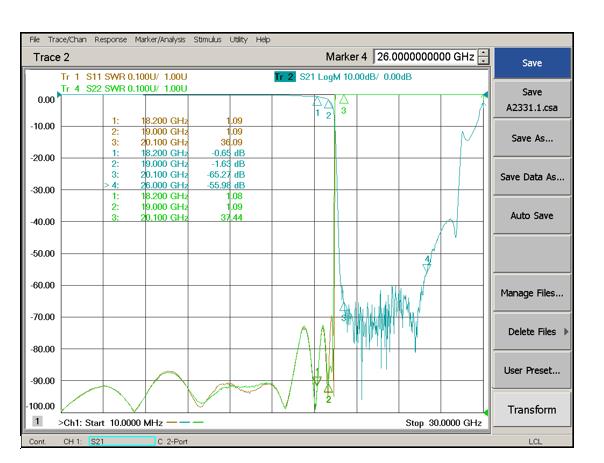

Low Pass Cavity Filter – OLP-19000:

  • Cut Off Frequency: 19GHz,
  • Pass Band Frequency:  DC-19GHz,
  • Pass Band Insertion Loss: ≤1.0dB @ DC~18.2GHz | ≤3.0dB @ 18.2~19GHz,
  • Pass Band VSWR: ≤1.6:1,
  • Rejection: ≥50dB @ 20.1~26GHz.

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

19

Cut Off Frequency (GHz)

19

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

DC

Max. 1.0 dB Insertion Loss

18.2 GHz

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.6:1

Stop Band Attenuation (GHz)

≥50dB @ 20.1 – 26

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
