Cavity Low Pass Microwave Filter DC-2.0GHz RF Low Pass cavity filter Rejection: 60dB @ 2.38GHz~7.0GHz with SMA Female Connector

Cavity Low Pass Microwave Filter DC-2.0GHz RF Low Pass cavity filter Rejection: 60dB @ 2.38GHz~7.0GHz with SMA Female Connector

0 out of 5

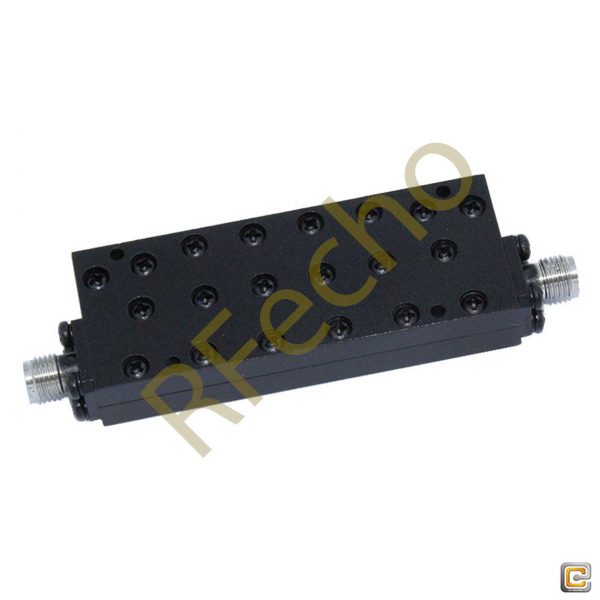

Cavity Low Pass Microwave Filter model OLP-2000 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This Cavity Low Pass Microwave Filter Manufactured with a passband frequency from DC to 2.0GHz and a rejection frequency 2.38GHz to 7.0GHz. Our RF Low Pass Cavity Filter provides a nominal insertion loss of ≤1.0dB @ DC~1.9GHz | ≤1.5dB @ 1.9~2.0GHz across its passband and a typical rejection of 60dB @ 2.38~7.0GHz. Since the high end cutoff frequency of Cavity Low Pass Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Low Pass Cavity Filter has passband VSWR ≤1.3:1 and power handling of ≤50W. Cavity Low Pass Microwave Filter is manufactured with SMA Female Connector and Net weight of 0.045Kg. DC to 2.0GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 2.0GHz Cavity Low Pass Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this RF Low Pass Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-2000 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

Low Pass Cavity Filter – OLP-2000:

  • Cut Off Frequency: 2GHz,
  • Pass Band Frequency:  DC 2.0GHz,
  • Pass Band Insertion Loss: ≤1.0dB @ DC~1.9GHz | ≤1.5dB @ 1.9~2.0GHz,
  • Pass Band VSWR: ≤1.3:1,
  • Rejection: 60dB @ 2.38~7.0GHz.

Outline

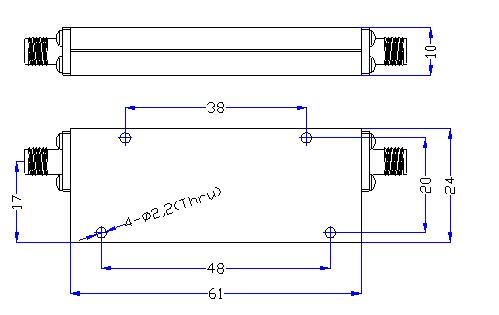

DC-2.0GHz, Rejection: 60dB @ 2.38~7.0GHz, Low Pass Cavity Filter OLP-2000

Plot

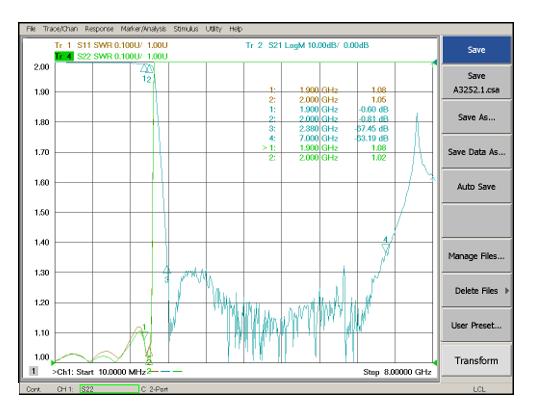

DC-2.0GHz, Rejection: 60dB @ 2.38~7.0GHz, Low Pass Cavity Filter OLP-2000 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

2

Cut Off Frequency (GHz)

2

Pass Band Insertion Loss (dB)

NA

Min. 1.0 dB Insertion Loss

DC

Max. 1.0 dB Insertion Loss

1.9 GHz

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.3:1

Stop Band Attenuation (GHz)

≥60dB @ 2.38 – 7.0

Impedance (Ω)

50

Power Handling (W)

15

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
