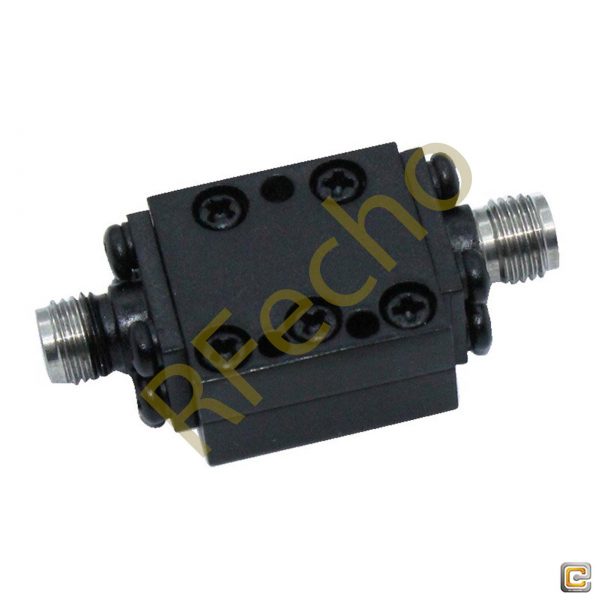

RFecho OLP-20000 is a low pass cavity filter with a DC to 20 GHz passband and SMA-Female connectors. It passes signals below the cut-off frequency and attenuates signals in the specified stopband.

Low Pass Cavity Filter – OLP-20000


Part Number OLP-20000
Cut Off Frequency 20 GHz
Pass Band Frequency DC to 20 GHz
Pass Band Insertion Loss ≤1.0 dB @ DC to 19 GHz
≤3.0 dB @ 19 to 20 GHz
Pass Band VSWR ≤1.6:1
Stop Band Attenuation ≥50 dB @ 21.2 to 27 GHz
Impedance 50 ohms
Power ≤15 W
Connectors SMA-Female
Surface Finish Guided Oxygen or Black Paint (as specified in the datasheet)
Temperature Range -55°C to +85°C
Net Weight 0.0135 kg
Configuration See Outline; dimensions in mm

Dimensions in mm.

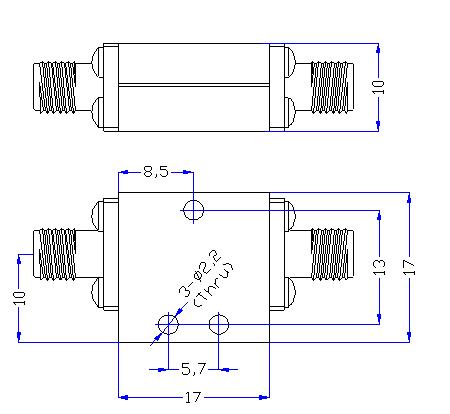

OLP-20000 outline drawing and mounting dimensions in mm

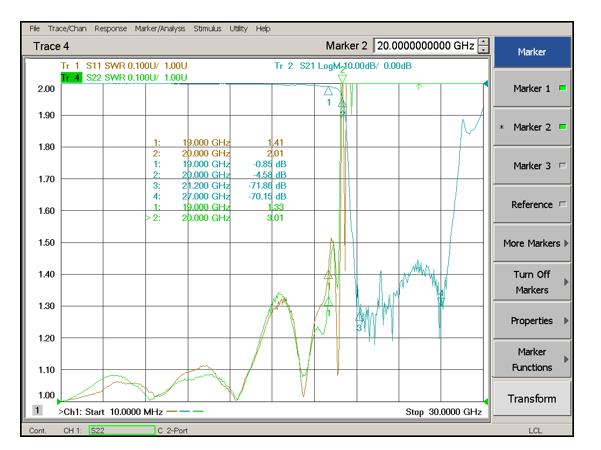

OLP-20000 measured frequency response and VSWR plot
