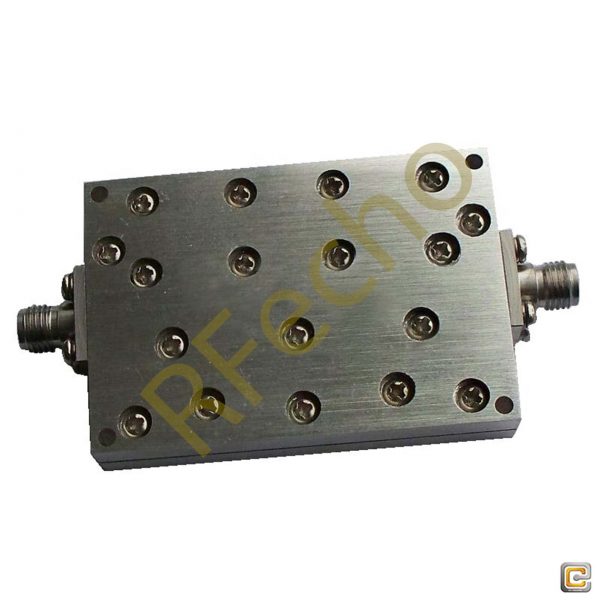

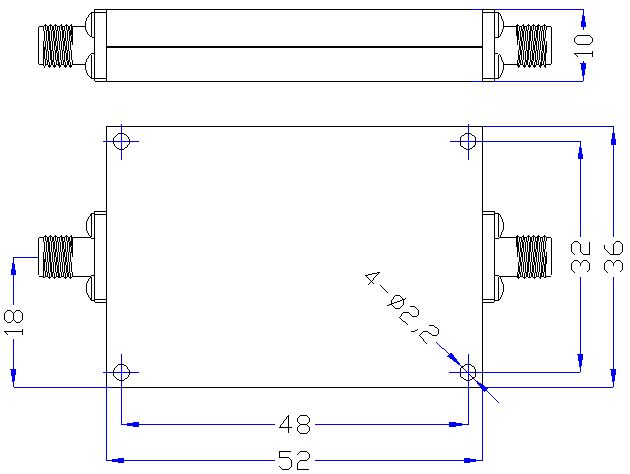

RF Microwave Cavity Filter DC-2.3GHz RF Passive Low Pass Filter Rejection ≥50dB @ 2.6GHz to 6.9GHz with SMA Female Connector
RF Microwave Cavity Filter model OLP-2300 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Microwave Cavity Filter Manufactured with a passband frequency from DC to 2.3GHz and a rejection frequency 2.6GHz to 6.9GHz. Our RF Passive Low Pass Filter provides a nominal insertion loss of ≤1.2dB across its passband and a typical rejection of ≥50dB @ 2.6-6.9GHz. Since the high end cutoff frequency of RF Microwave Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Passive Low Pass Filter has passband VSWR ≤1.5 and power handling of ≤5W. RF Microwave Cavity Filter is manufactured with SMA Female Connector and customized Net weight. DC to 2.3GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 2.3GHz RF Microwave Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this RF Passive Low Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
- Additional information
RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

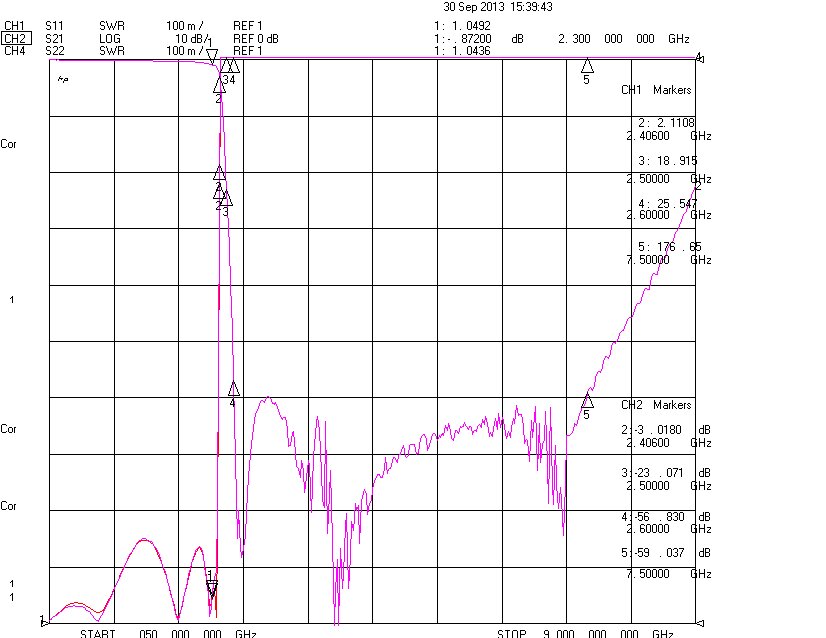

Low Pass Cavity Filter – OLP-2300:
- Cut Off Frequency: 2.3GHz,
- Pass Band Frequency: DC-2.4GHz,
- Pass Band Insertion Loss: ≤1.2dB,
- Pass Band VSWR: 1.5,
- Rejection: ≥50dB @ 2.6-6.9GHz.
|Min. Pass Band Frequency (GHz)|
|Max. Pass Band Frequency (GHz)|
|Cut Off Frequency (GHz)|
|Pass Band Insertion Loss (dB)|
|Min. 1.0 dB Insertion Loss|
|Max. 1.0 dB Insertion Loss|
|Min. 1.5 dB Insertion Loss|
|Max. 1.5 dB Insertion Loss|
|Pass Band Return Loss (dB)|
|Pass Band VSWR (Max.)|
|Stop Band Attenuation (GHz)|
|Power Handling (W)|
