DC-3.5GHz Low Pass Cavity Filter Rejection ≥60dB @ 4.05GHz~11.5GHz Passive Low Pass Cavity Filter with SMA Female Connector
DC-3.5GHz Low Pass Cavity Filter model OLP-3500 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This DC-3.5GHz Low Pass Cavity Filter Manufactured with a passband frequency from DC to 3.5GHz and a rejection frequency 4.05GHz to 11.5GHz. Our Passive Low Pass Cavity Filter provides a nominal insertion loss of 1.0dB @ DC~3.35GHz | 1.5dB @ 3.35~3.5GHz across its passband and a typical rejection of ≥60dB @ 4.05~11.5GHz. Since the high end cutoff frequency of DC-3.5GHz Low Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Passive Low Pass Cavity Filter has passband VSWR ≤1.3:1 and power handling of ≤15W. DC-3.5GHz Low Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.0289Kg. DC to 3.5GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 3.5GHz Low Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Passive Low Pass Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
- Description
- Additional information
Description
RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

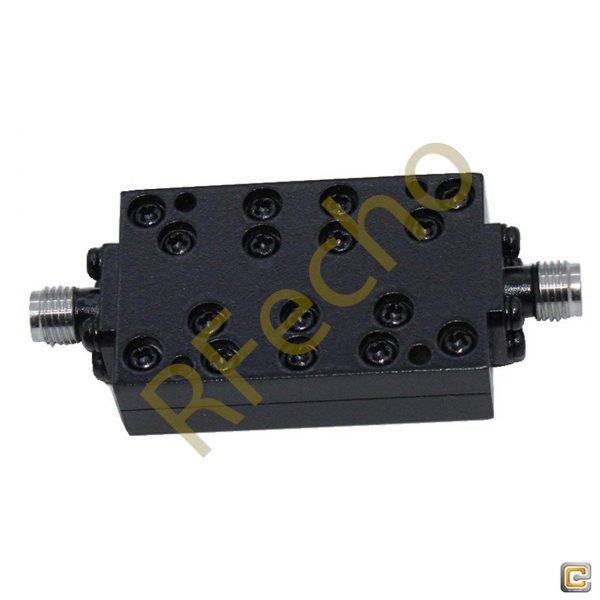

Low Pass Cavity Filter – OLP-3500:
- Cut Off Frequency: 3.5GHz,
- Pass Band Frequency: DC-3.5GHz,
- Pass Band Insertion Loss: 1.0dB @ DC~3.35GHz | 1.5dB @ 3.35~3.5GHz,
- Pass Band VSWR: ≤1.3:1,

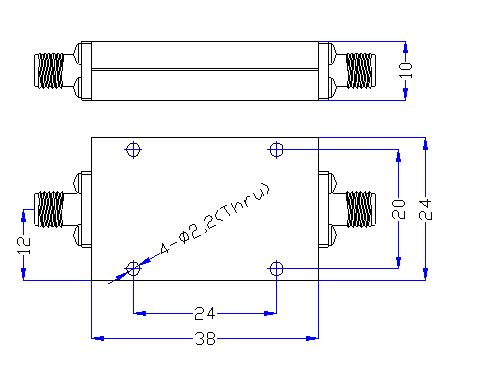

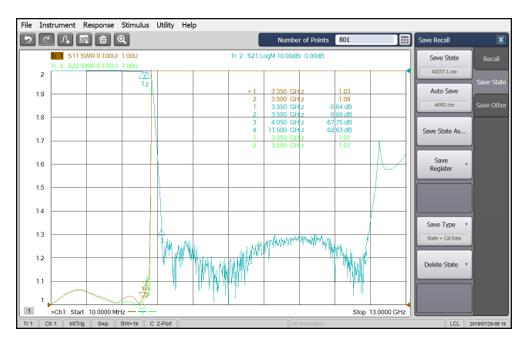

- Rejection: ≥60dB @ 4.05~11.5GHz.
Additional information
Min. Pass Band Frequency (GHz) | |
---|---|
Max. Pass Band Frequency (GHz) | |
Cut Off Frequency (GHz) | |
Pass Band Insertion Loss (dB) | |
Min. 1.0 dB Insertion Loss | |
Max. 1.0 dB Insertion Loss | |
Min. 1.5 dB Insertion Loss | |
Max. 1.5 dB Insertion Loss | |
Pass Band Return Loss (dB) | |
Pass Band VSWR (Max.) | |
Stop Band Attenuation (GHz) | |
Impedance (Ω) | |
Power Handling (W) | |
Connection Type | |
Surface Finish |
