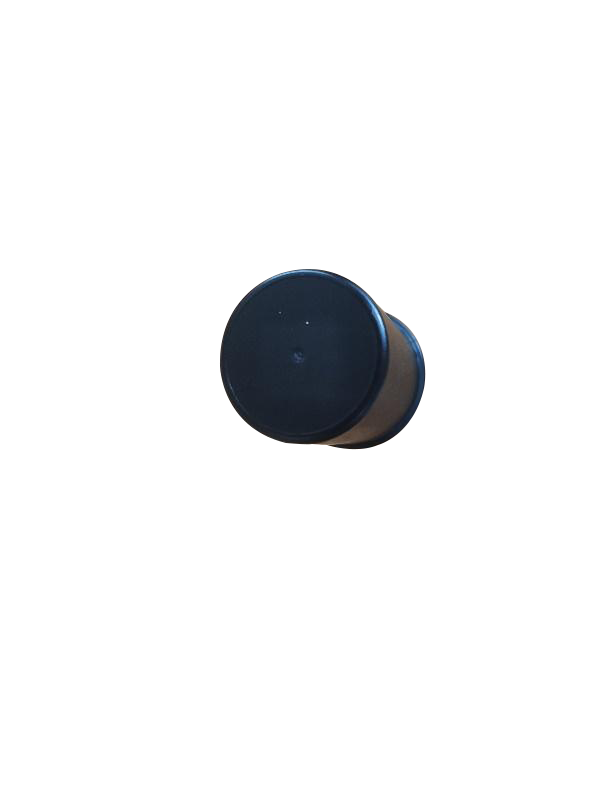

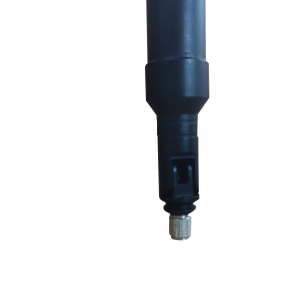

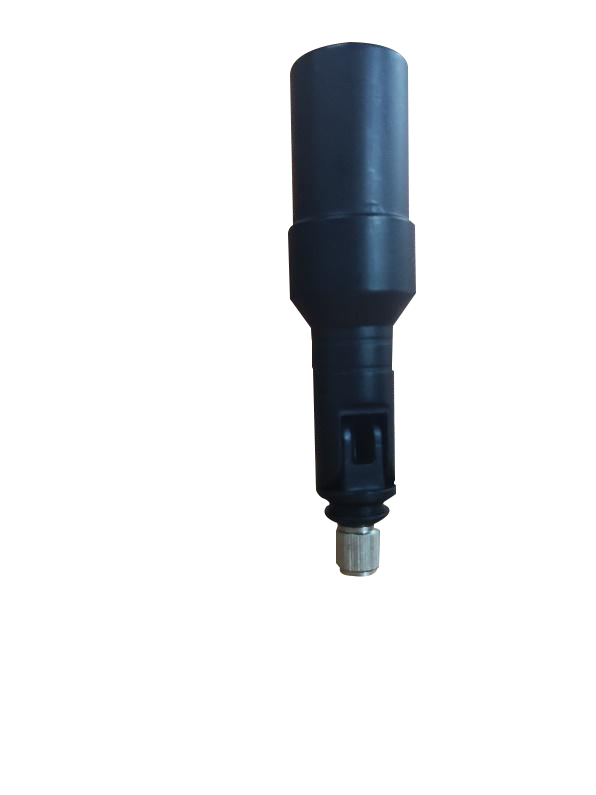

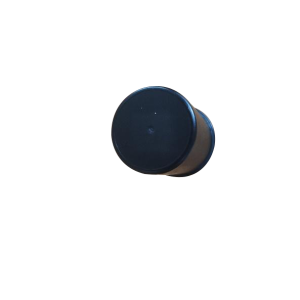

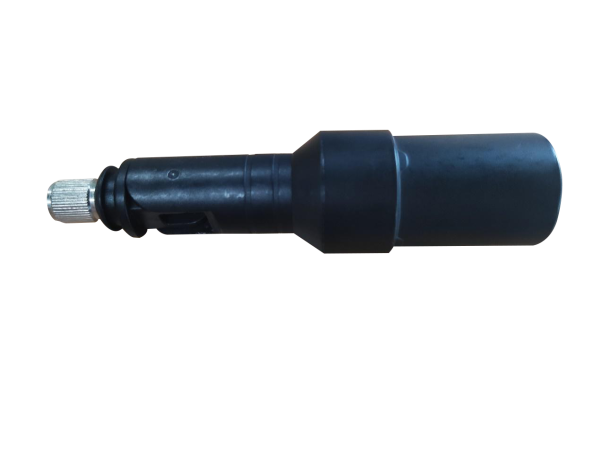

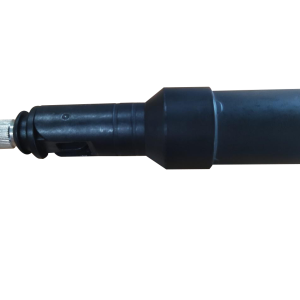

Multi-band handheld antenna OGGG-BD-33-M

0 out of 5

$80

Frequency Range: BDS: B1/B2/B3; GPS: L1/L2; GLONASS: G1/G2; GALILEO: E1/E5b
Gain: 33±2 dBi
Polarization: Richt-handed circular polarization
Voltage: DC3.3~12V
Antenna axis: ≤3dB
Operating temperature: -25°C~+70°C
VSWR: ≤2
This antenna is suitable for mapping handhelds and PADs.

SKU: OGGG-BD-33-M Category: GPS Antenna

Description

GPS ANTENNA

Multi-band handheld antenna OGGG-BD-33-M

OGGG-BD-33-M

OGGG-BD-33-M is a four-system multi-frequency point handheld antenna that supports GPS, BDS, GLONASS, and GALILEO, which can be widely used in surveying and mapping, high-precision uncrewed aerial vehicles, and other industries, especially suitable for mapping handhelds, PAD, etc. It is characterized by the high gain of the passive antenna, the wide beam, the reception effect of the low elevation angle signal is good, and the star can still be received generally in the environment with more serious occlusion; The operating frequency bandwidth of the passive antenna can well support multi-system multi-frequency point work, especially the B3 frequency point of global networking, which is greatly improved.

High system stability; Antenna with curved structure, small size, easy to carry, easy to use; The antenna has high out-of-band rejection, which can effectively avoid system instability caused by signal interference such as communication base stations.

Property

Value

Frequency range

BDS B1/B2/B3
GPS:L1/L2
GLONASS:G1/G2
GALILEO:E1/E5b

Polarization

Richt-handed circular polarization

Max. Gain

2.5dBi

Voltage

DC3.3~12V

Antenna axis

≤3dB

Operating temperature

-25°C~+70°C

VSWR

≤2

Gain (dBi)

33±2

Additional information

Weight 1 kg
Dimensions 26 × 11.5 × 14.5 cm
Frequency Range

BDS: B1/B2/B3 GPS: L1/L2 GLONASS: G1/G2 GALILEO: E1/E5b

Polarization

Richt-handed circular polarization

Max. Gain

2.5dBi

Voltage

DC3.3~12V

Antenna axis

≤3dB

Operating temperature

-25°C~+70°C

VSWR

≤2

Gain (dBi)

33±2
