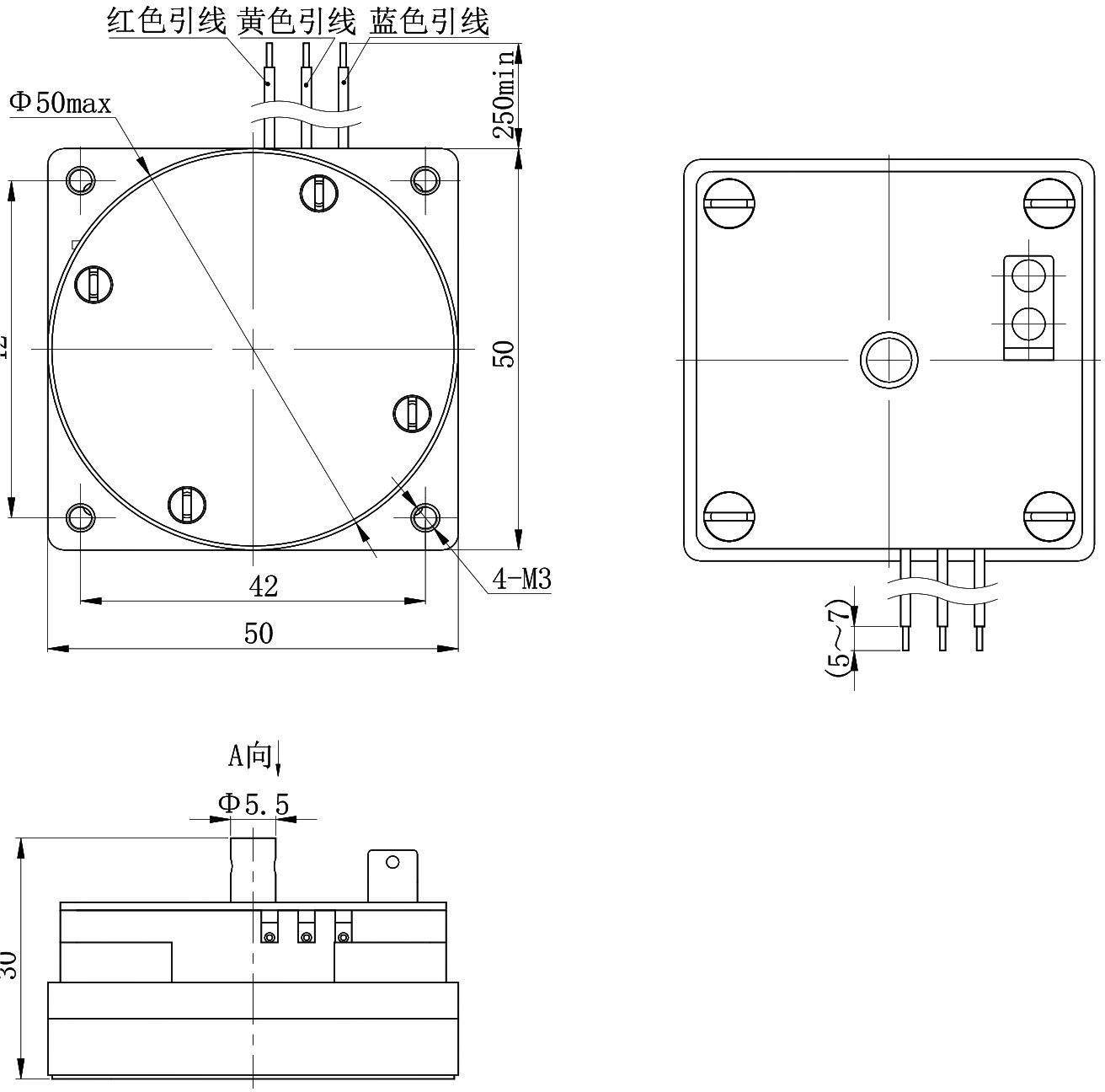

- Outline
- Reviews (0)
Description
The OCT-R11A is a rotary solenoid lock controller, operating from 28Vd.c.. It is rated for intermittent duty, resets by external spring return. Its stated application is automatic control equipment.
Rotary Solenoid Lock Controller Specifications | |
| 28Vd.c. | |
| OCT-R11A | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Intermittent |
| Actuation Type | Counter-clockwise rotary |
| Reset Type | External spring return |
| Coil Resistance (Ω) | Coil I: 3.8× (1±15%) (25°C) / Coil II: 3.36× (1±15%) (25°C) |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | approx. 206 to 233 |
| Life (operations) | 10000 |
| Rotational Torque (N·cm) | ≥ 20 (25°C) ≥ 30 (25°C) |
| Armature Rotation Angle (°) | ≥ 11 ≥ 7 |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 85 |
| Relative Humidity | 95% at 40°C |
Features | |
| Intermittent Duty | |
| Counter-clockwise rotary Actuation | |
| External spring return | |
| Rated Life 10000 | |
