OX6249 Ball-Type Rotary Solenoid – 28VDC, ≥0.8N·m
OX6249 Ball-Type Rotary Solenoid (rotary solenoid): 28VDC, ≥0.8N·m, intermittent duty. For indexing and rotary actuation. Datasheet and quote from RFecho.
- Description
- Datasheet

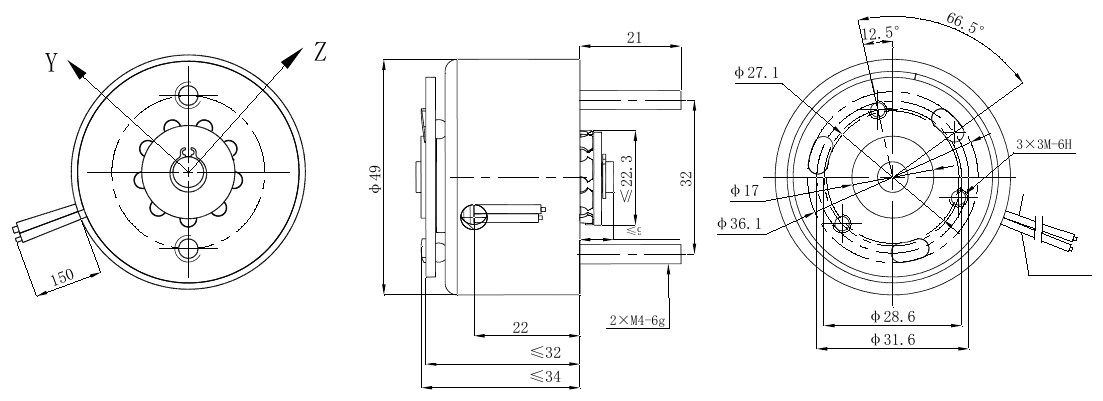

- Outline
- Reviews (0)
Description
The OX6249 is a ball-type rotary solenoid, operating from 28Vd.c.. It is rated for intermittent duty, resets by spring self-return. Its stated application is automatic control equipment.
Ball-Type Rotary Solenoid Specifications | |
| 28Vd.c. | |
| OX6249 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Intermittent |
| Actuation Type | Clockwise rotary |
| Coil Resistance (Ω) | 2.1×(1±5%) (25°C) |
| Insulation Resistance (MΩ) | ≥ 20 |
| Dielectric Strength (V, 50Hz) | 500 (standard atmospheric pressure) |
| Coil Power (W) | 373 |
| Reset Method | Spring self-return |
| Dimensions | See outline drawing |
| Rotation Angle | 25°±2° |
| Torque (N·m) | ≥ 0.8 |
| Duty Cycle | 10% |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 70 |
| Relative Humidity | 95% at 40°C |
Features | |
| Intermittent Duty | |
| Clockwise rotary Actuation | |
| Spring self-return | |
