OL-6185 Solenoid Pin Puller – 0.5N, 2mm stroke
OL-6185 Solenoid Pin Puller (pin puller / shotbolt actuator): 0.5N, 2mm stroke. Datasheet and quote from RFecho.
- Description
- Datasheet

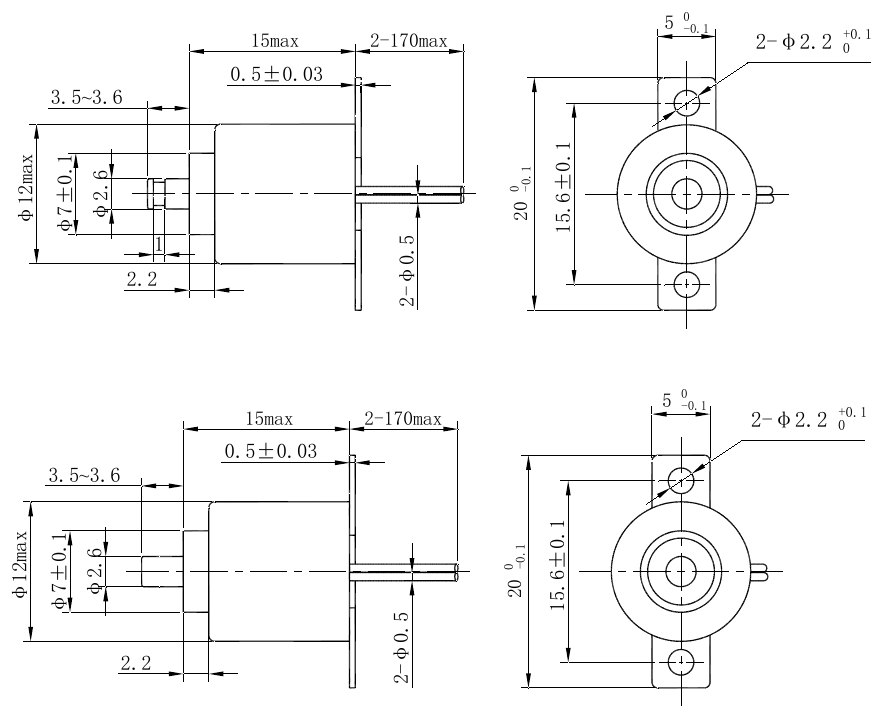

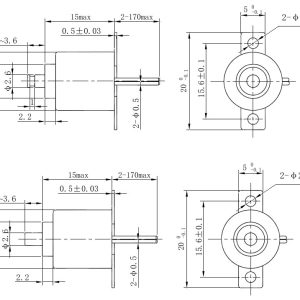

- Outline
- Reviews (0)
Description
The OL-6185 is a solenoid pin puller, developing 0.5 (lateral) N, over a 2±0.1mm stroke. It is rated for intermittent (single run ≤ 5s) duty. Its stated application is automatic control equipment.
Solenoid Pin Puller Specifications | |
| 0.5 (lateral) | |
| OL-6185 | |
Property | Value |
Technical Characteristics | |
| Duty Type | Intermittent (single run ≤ 5s) |
| Actuation Type | Pull type |
| Insulation Resistance (MΩ) | ≥ 100 (test voltage 100Vd.c.) |
| Stroke (mm) | 2±0.1 |
| Pin-Pull Force (N) | 0.5 (lateral) |
| Dielectric Withstand (V, 50Hz) | 1000 |
| Service Life | 500 operations |
| Dimensions (mm) | Φ12×15 |
| Weight (g) | ≤ 10 |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 85 |
| Relative Humidity | 98% at 40°C |
| Shock (m/s²) | 980 |
| Low Air Pressure (kPa) | 4.4 |
| Vibration (Sine) | 10Hz to 2000Hz, 98m/s 2 |
| Vibration (Random) | 10Hz to 2000Hz, 4 (m/s 2) 2/Hz |
| Constant Acceleration (m/s²) | 490 |
Coil Selection Table | |
| Spec Code 024 | Coil Voltage Rated 24; Coil Voltage Max. 26.4; 25°C (VDC) Coil Resistance (Ω) ×(1±10%) 40; 25°C (VDC) Operate Voltage Max. 14.0; 25°C (VDC) Release Voltage Min. 1.5; Full Temp. Range (VDC) Operate Voltage Max. 16.0; Full Temp. Range (VDC) Release Voltage Min. 1.0; Coil Power (W) approx. 14.5 |
Features | |
| Intermittent (single run ≤ 5s) Duty | |
| Pull type Actuation | |
| Rated Life 500 operations | |
