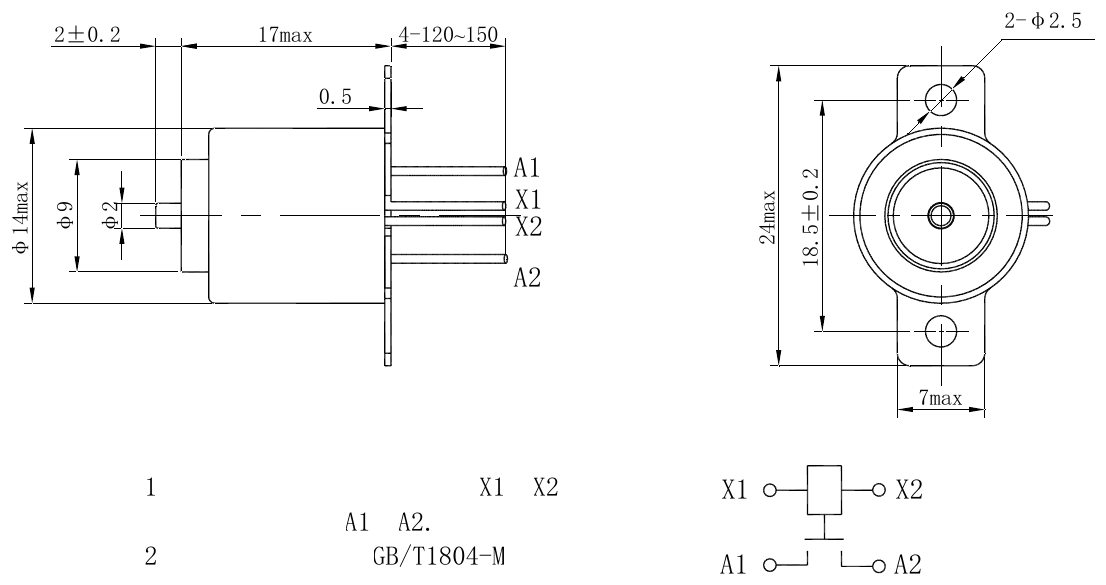

- Outline
- Reviews (0)
Description
The OL-6206 is a solenoid pin puller with operation monitoring, developing 2.5 (lateral) N, over a 2±0.2mm stroke. It is rated for intermittent (single continuous run ≤ 2s) duty. Its stated application is automatic control equipment.
Solenoid Pin Puller with Operation Monitoring Specifications | |
| 2.5 (lateral) | |
| OL-6206 | |
Property | Value |
Technical Characteristics | |
| Duty Type | Intermittent (single continuous run ≤ 2s) |
| Actuation Type | Pull type |
| Insulation Resistance (MΩ) | ≥ 100 (test voltage: 100Vd.c.) |
| Stroke (mm) | 2±0.2 |
| Pin-Pull Force (N) | 2.5 (lateral) |
| Dielectric Withstand (V, 50Hz) | Case to coil: 1000; Case and coil to monitor contact: 250 |
| Service Life | 500 operations |
| Dimensions (mm) | Φ14×17 |
| Weight (g) | ≤ 14 |
| Monitoring Function | One full pin retraction closes the monitor contact once. rated load 12Vd.c., 0.1A max |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 85 |
| Relative Humidity | 98% at 40°C |
| Shock (m/s²) | 980 |
| Low Air Pressure (kPa) | 4.4 |
| Vibration (Sine) | 10Hz to 2000Hz, 98m/s 2 |
| Vibration (Random) | 10Hz to 2000Hz, 4 (m/s 2) 2/Hz |
| Constant Acceleration (m/s²) | 490 |
Coil Selection Table | |
| Spec Code 024 | Coil Voltage Rated 24; Coil Voltage Max. 30; 25°C (VDC) Coil Resistance (Ω) ×(1±10%) 6.0; 25°C (VDC) Operate Voltage Max. 16.0; 25°C (VDC) Release Voltage Min. 2.0; Full Temp. Range (VDC) Operate Voltage Max. 18.0; Full Temp. Range (VDC) Release Voltage Min. 1.0; Coil Power (W) ≤ 108 |
Features | |
| Intermittent (single continuous run ≤ 2s) Duty | |
| Pull type Actuation | |
| Rated Life 500 operations | |
