OL-6241 Dual-Side Solenoid Pin Puller – 10N, 3mm stroke
OL-6241 Dual-Side Solenoid Pin Puller (dual-acting pin puller): 10N, 3mm stroke. For aerospace and ordnance locking. Datasheet and quote from RFecho.
- Description
- Datasheet

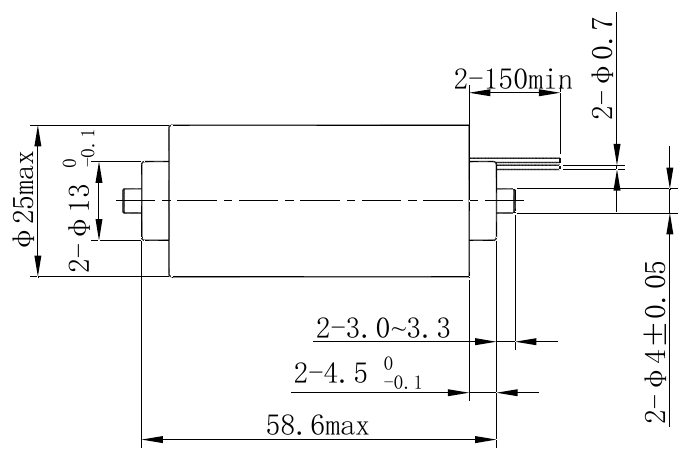

- Outline
- Reviews (0)
Description
The OL-6241 is a dual-side retracting solenoid pin puller, developing 10 (lateral) N, over a 3 to 3.3mm stroke. It is rated for intermittent (single run ≤ 5s) duty. Its stated application is automatic control equipment.
Dual-Side Retracting Solenoid Pin Puller Specifications | |
| 10 (lateral) | |
| OL-6241 | |
Property | Value |
Technical Characteristics | |
| Duty Type | Intermittent (single run ≤ 5s) |
| Actuation Type | Pull type |
| Insulation Resistance (MΩ) | ≥ 1000 (test voltage 100Vd.c.) |
| Stroke (mm) | 3 to 3.3 |
| Pin-Pull Force (N) | 10 (lateral) |
| Dielectric Withstand (V, 50Hz) | 1000 |
| Service Life | 1000 operations |
| Dimensions (mm) | Φ25×58.6 |
| Weight (g) | ≤ 150 |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 85 |
| Relative Humidity | 98% at 40°C |
| Shock (m/s²) | 98 |
| Low Air Pressure (kPa) | 4.4 |
| Vibration (Sine) | 10Hz to 2000Hz, 98 (m/s 2) |
| Vibration (Random) | 10Hz to 2000Hz, 4 (m/s 2) 2/Hz |
| Constant Acceleration (m/s²) | 147 |
Coil Selection Table | |
| Spec Code 014 | Coil Voltage Rated 14; Coil Voltage Max. 16; 25°C (VDC) Coil Resistance (Ω) ×(1±10%) 2.5; 25°C (VDC) Operate Voltage Max. 10; 25°C (VDC) Release Voltage Min. 0.5; Full Temp. Range (VDC) Operate Voltage Max. 12; Full Temp. Range (VDC) Release Voltage Min. 0.5; Coil Power (W) ≤ 80 |
Features | |
| Intermittent (single run ≤ 5s) Duty | |
| Pull type Actuation | |
| Rated Life 1000 operations | |
