OL-6260 Solenoid Pin Puller – 0.5N, 2.6mm stroke
OL-6260 Solenoid Pin Puller (pin puller / shotbolt actuator): 0.5N, 2.6mm stroke. Datasheet and quote from RFecho.
- Description
- Datasheet

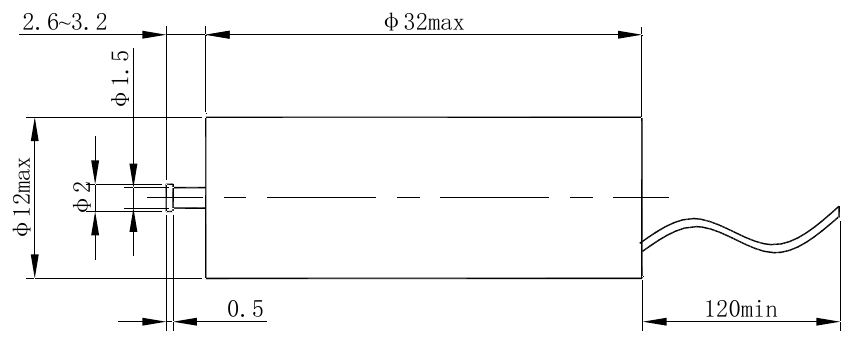

- Outline
- Reviews (0)
Description
The OL-6260 is a solenoid pin puller, developing 0.5 (axial) N, over a 2.6 to 3.2mm stroke. It is rated for intermittent (single continuous energisation ≤ 120s) duty. Its stated application is automatic control equipment.
Solenoid Pin Puller Specifications | |
| 0.5 (axial) | |
| OL-6260 | |
Property | Value |
Technical Characteristics | |
| Duty Type | Intermittent (single continuous energisation ≤ 120s) |
| Actuation Type | Pull type |
| Insulation Resistance (MΩ) | ≥ 100 (test voltage 100Vd.c.) |
| Stroke (mm) | 2.6 to 3.2 |
| Pin-Pull Force (N) | 0.5 (axial) |
| Dielectric Withstand (V, 50Hz) | 1000 |
| Service Life | 1000 operations |
| Dimensions (mm) | Φ12×32 |
| Weight (g) | ≤ 20 |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 85 |
| Relative Humidity | 98% at 40°C |
| Shock (m/s²) | 294 (de-energised), 980 (energised) |
| Low Air Pressure (kPa) | 4.4 |
| Vibration (Sine) | 10Hz to 2000Hz, 98 (m/s 2) |
| Vibration (Random) | 10Hz to 2000Hz, 4 (m/s 2) 2/Hz |
| Constant Acceleration (m/s²) | 490 |
Coil Selection Table | |
| Spec Code 027 | Coil Voltage Rated 27; Coil Voltage Max. 31; 25°C (VDC) Coil Resistance (Ω) ×(1±10%) 67; 25°C (VDC) Operate Voltage Max. 14; 25°C (VDC) Release Voltage Min. 1.2; Full Temp. Range (VDC) Operate Voltage Max. 18; Full Temp. Range (VDC) Release Voltage Min. 0.5; Coil Power (W) ≤ 11 |
Features | |
| Intermittent (single continuous energisation ≤ 120s) Duty | |
| Pull type Actuation | |
| Rated Life 1000 operations | |
