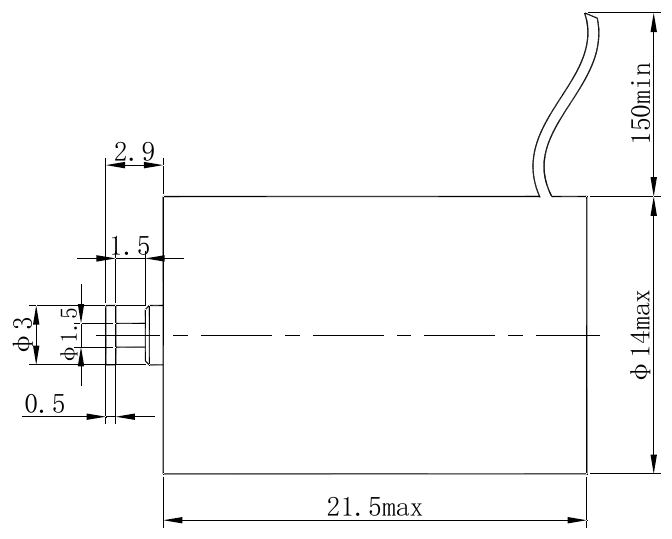

- Outline
- Reviews (0)
Description
The OL-6262 is a solenoid pin puller, developing 0.1 (axial, no load) N, over a 2.8 to 3.0mm stroke. It is rated for intermittent (single continuous run ≤ 800s) duty. Its stated application is automatic control equipment.
Solenoid Pin Puller Specifications | |
| 0.1 (axial, no load) | |
| OL-6262 | |
Property | Value |
Technical Characteristics | |
| Duty Type | Intermittent (single continuous run ≤ 800s) |
| Actuation Type | Pull type |
| Insulation Resistance (MΩ) | ≥ 1000 (test voltage 100Vd.c.) |
| Stroke (mm) | 2.8 to 3.0 |
| Pin-Pull Force (N) | 0.1 (axial, no load) |
| Dielectric Withstand (V, 50Hz) | 1000 |
| Dimensions (mm) | Φ14×21.5 |
| Weight (g) | ≤ 25 |
| Operate Time (ms) | ≤ 30 |
| Service Life (operations) | 10000 |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 85 |
| Relative Humidity | 98% at 40°C |
| Shock (m/s²) | 196 (de-energised), 1470 (energised) |
| Low Air Pressure (kPa) | 4.4 |
| Vibration (Sine) | 10Hz to 2000Hz, 98 (m/s 2) |
| Vibration (Random) | 10Hz to 2000Hz, 4 (m/s 2) 2/Hz |
| Constant Acceleration (m/s²) | 196 |
Coil Selection Table | |
| Spec Code 018 | Coil Voltage Rated 18; Coil Voltage Max. 21; 25°C (VDC) Coil Resistance (Ω) ×(1±10%) 60; 25°C (VDC) Operate Voltage Max. 14.5; 25°C (VDC) Release Voltage Min. 0.8; Full Temp. Range (VDC) Operate Voltage Max. 16.5; Full Temp. Range (VDC) Release Voltage Min. 0.5; Coil Power (W) ≤ 6 |
Features | |
| Intermittent (single continuous run ≤ 800s) Duty | |
| Pull type Actuation | |
