OL6045 DC Solenoid – 28VDC, ≥2N, 10mm stroke
OL6045 DC Solenoid (pull solenoid / electromagnet): 28VDC, ≥2N, 10mm stroke, -40 to 55°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

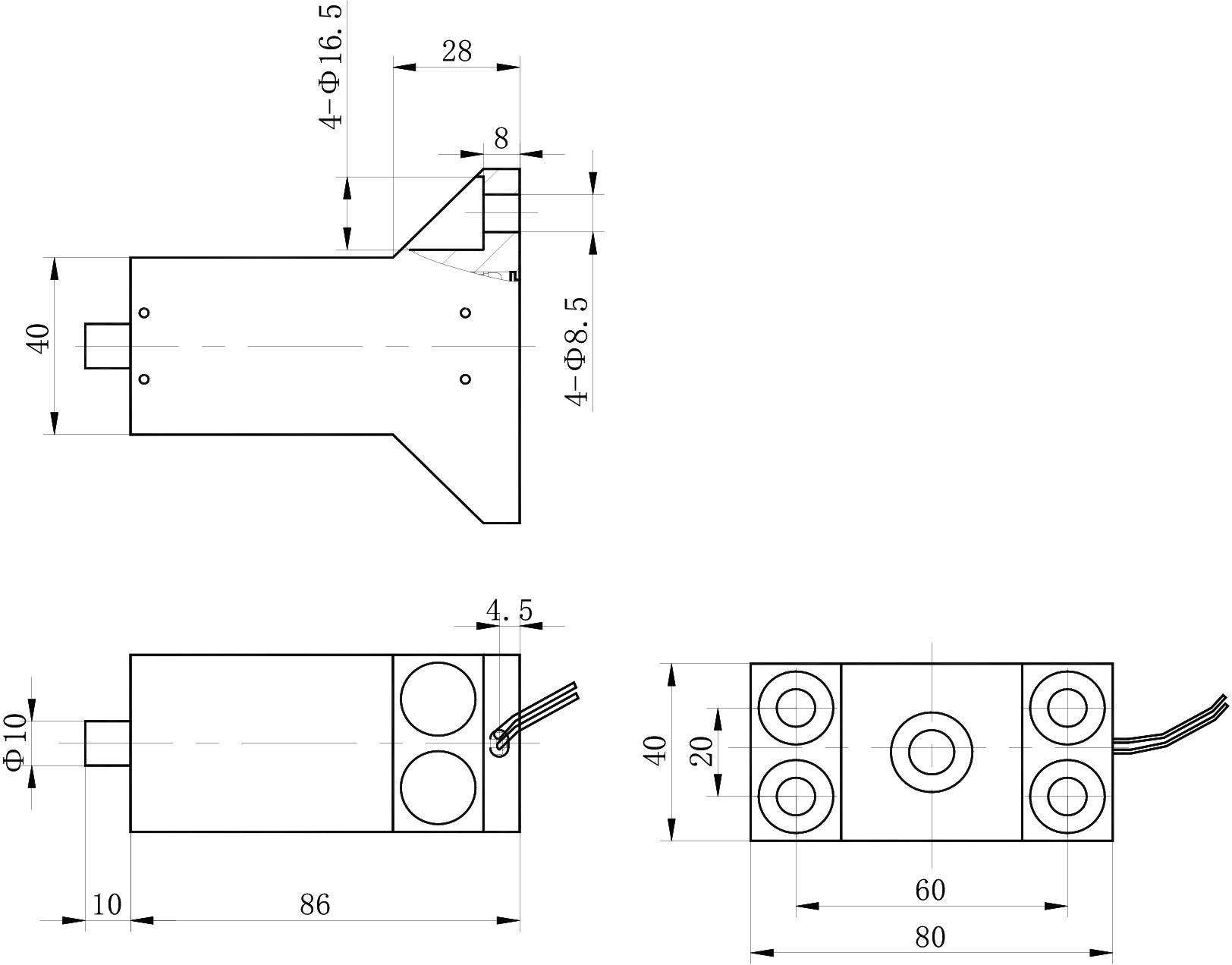

- Outline
- Reviews (0)
Description
The OL6045 is a solenoid, operating from 28Vd.c., developing ≥ 2 (25°C) N, over a 10mm stroke. It is rated for continuous duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 28Vd.c. | |
| OL6045 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Reset Type | Spring return |
| Coil Resistance (Ω) | Pull-in coil: 5.6× (1±10%) (25°C) / Holding coil: 60× (1±10%) |
| Magnetic Force (N) | ≥ 2 (25°C) |
| Armature Stroke (mm) | 10 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | Pull-in coil: approx. 140 Holding coil: approx. 13 |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 55 |
| Relative Humidity | 95% at 40°C |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Spring return | |
