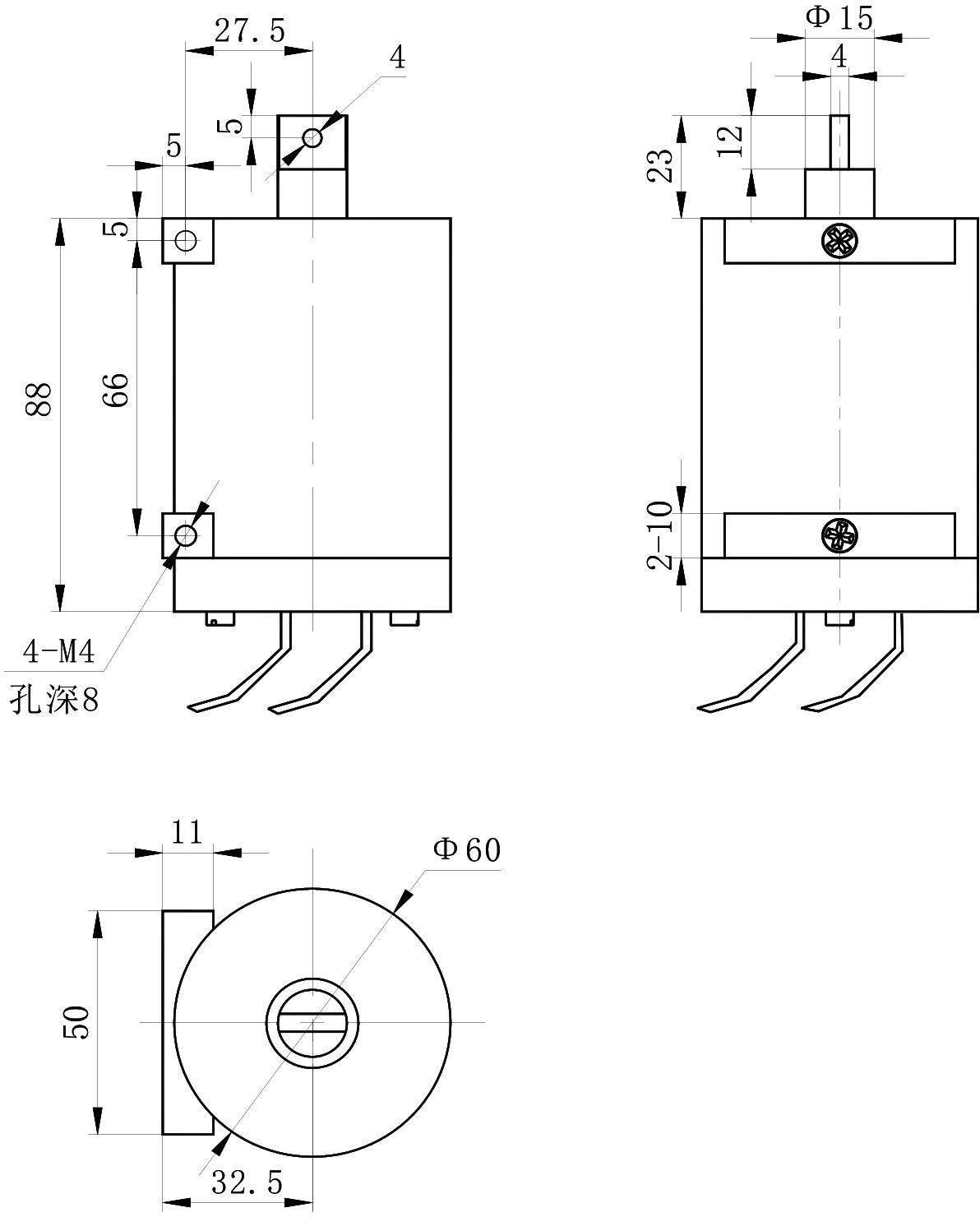

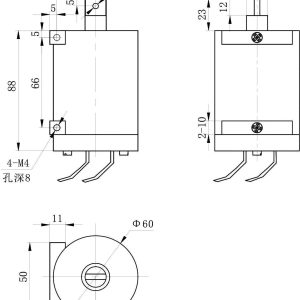

- Outline
- Reviews (0)
Description
The OL6072 is a solenoid, operating from 27Vd.c., developing ≥ 150 (25°C) N, over a ≥ 8mm stroke. It is rated for continuous duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 27Vd.c. | |
| OL6072 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 27 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Reset Type | Spring return |
| Coil Resistance (Ω) | 3.5× (1±10%) (25°C) |
| Magnetic Force (N) | ≥ 150 (25°C) |
| Armature Stroke (mm) | ≥ 8 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | 208 |
| Life (operations) | 1×104 |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 70 |
| Relative Humidity | 90% at 40°C |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Spring return | |
| Rated Life 1×104 | |
