OL6076A DC Solenoid – 24VDC, 4.4mm stroke
OL6076A DC Solenoid (pull solenoid / electromagnet): 24VDC, 4.4mm stroke, -40 to 60°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

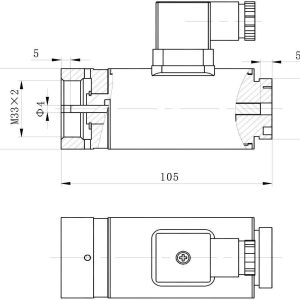

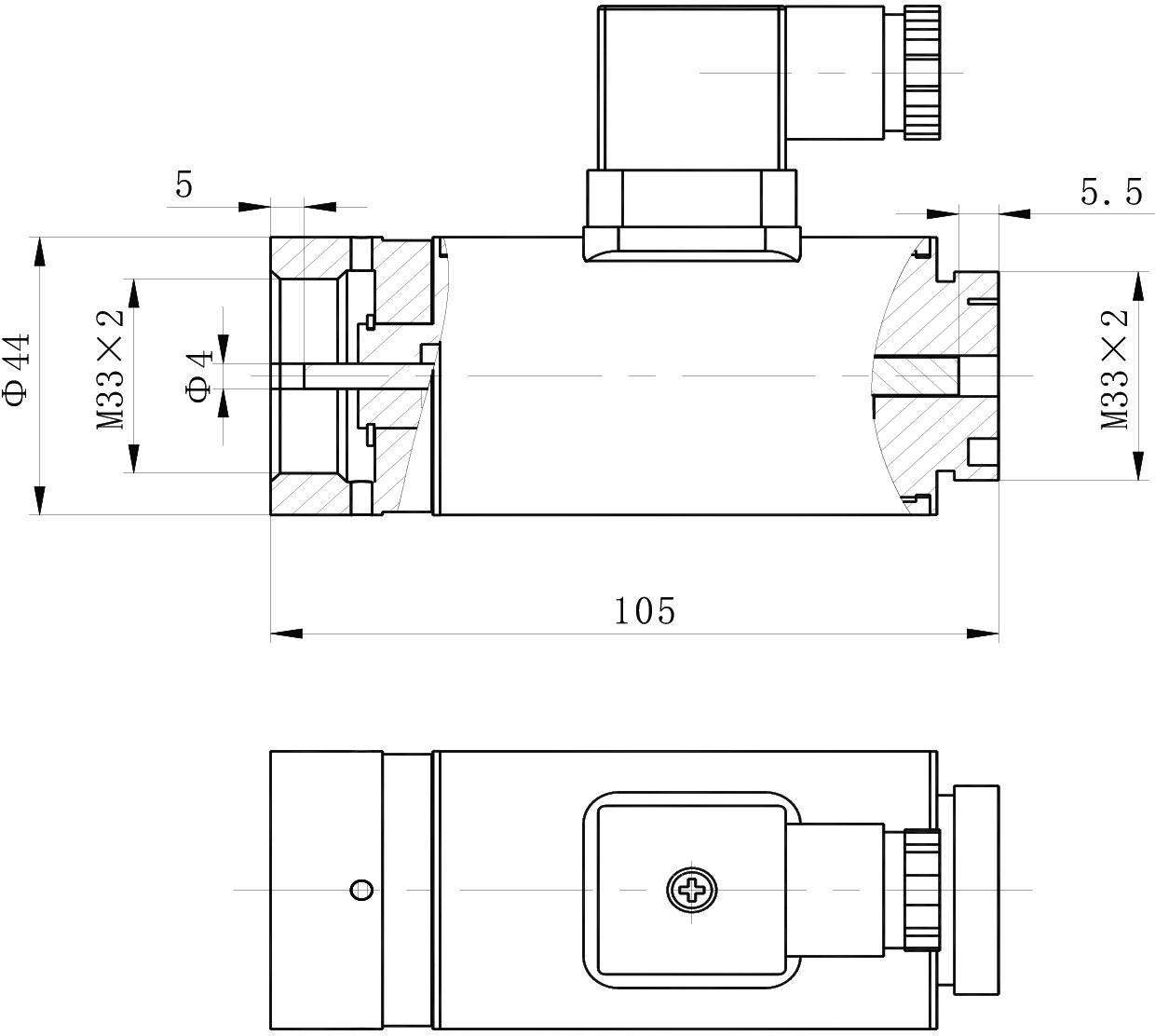

- Outline
- Reviews (0)
Description
The OL6076A is a solenoid, operating from 24Vd.c., over a 4.4mm stroke. It is rated for intermittent duty. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 24Vd.c. | |
| OL6076A | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 24 |
| Duty Type | Intermittent |
| Actuation Type | Retracting type |
| Coil Resistance (Ω) | 110× (1±10%) (25°C) |
| Armature Stroke (mm) | 4.4 |
| Insulation Resistance (MΩ) | ≥ 1000 |
| Dielectric Strength (V, 50Hz) | 1000 |
| Life (operations) | 1×104 |
| Released State | Permanent-magnet latching |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 60 |
| Relative Humidity | 90% at 40°C |
Features | |
| Intermittent Duty | |
| Retracting type Actuation | |
| Rated Life 1×104 | |
