OL6095 DC Solenoid – 26VDC, ≥6N, 8mm stroke
OL6095 DC Solenoid (pull solenoid / electromagnet): 26VDC, ≥6N, 8mm stroke, -40 to 55°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

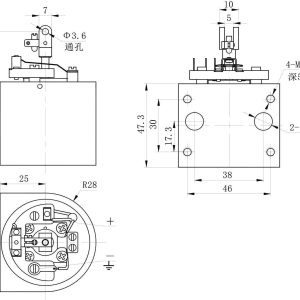

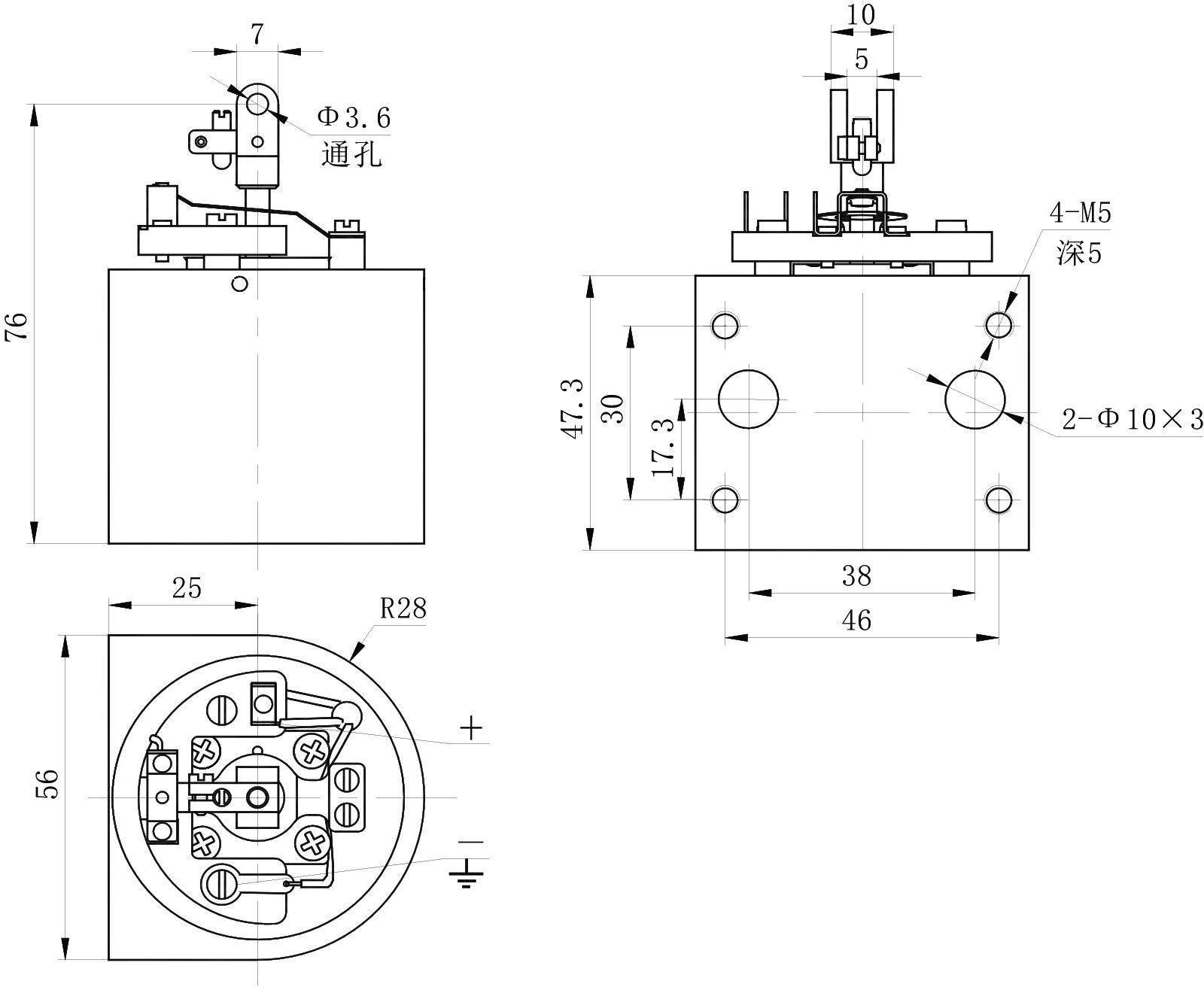

- Outline
- Reviews (0)
Description
The OL6095 is a solenoid, operating from 26Vd.c., developing ≥ 6 (25°C) N, over a 8mm stroke. It is rated for continuous duty, resets by spring return (assembly). Its stated application is automatic control equipment.
Solenoid Specifications | |
| 26Vd.c. | |
| OL6095 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 26 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Reset Type | Spring return (assembly) |
| Coil Resistance (Ω) | Pull-in coil: 2× (1±10%) (25°C) / Holding coil: 70× (1±10%) |
| Magnetic Force (N) | ≥ 6 (25°C) |
| Armature Stroke (mm) | 8 |
| Coil Power (W) | Pull-in coil: approx. 338 Holding coil: approx. 9.7 |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 55 |
| Relative Humidity | 98% at 40°C |
| Vibration (Hz) | 10Hz to 200Hz, peak acceleration 49m/s 2 |
| Shock (m/s²) | 294 |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Spring return (assembly) | |
