OL6252 DC Solenoid – 24VDC, ≥2kg, ≥20mm stroke
OL6252 DC Solenoid (pull solenoid / electromagnet): 24VDC, ≥2kg, ≥20mm stroke, -43–+70°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

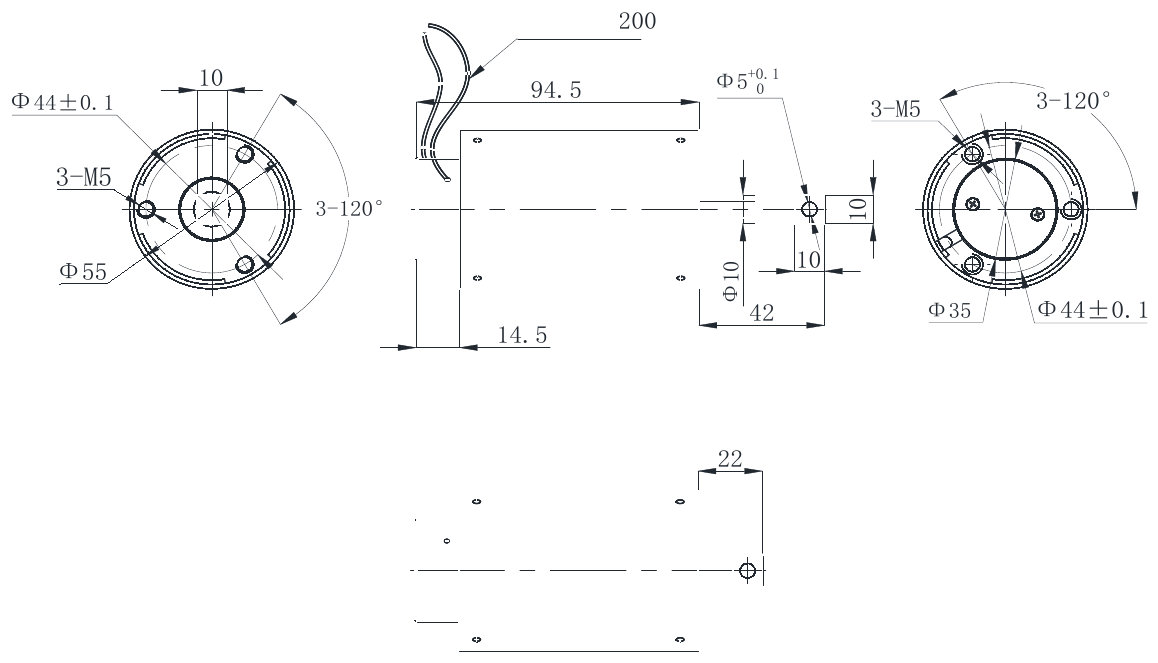

- Outline
- Reviews (0)
Description
The OL6252 is a solenoid, operating from 24Vd.c., developing ≥ 2 kg, over a ≥ 20mm stroke. It is rated for intermittent duty, resets by spring self-return. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 24Vd.c. | |
| OL6252 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 24 |
| Duty Type | Intermittent |
| Actuation Type | Pull type |
| Coil Resistance (Ω) | Pull-in coil: 1.6× (1±15%) / Holding coil: 20× (1±10%) |
| Armature Stroke (mm) | ≥ 20 |
| Insulation Resistance (MΩ) | 500 (100Vd.c.) |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | Pull-in coil 360; Holding coil 27 |
| Reset Method | Spring self-return |
| Magnetic Force (kg) | ≥ 2 |
Environmental Conditions | |
| Temperature Range (°C) | -43–+70 |
| Relative Humidity | 98% at 40°C |
Features | |
| Intermittent Duty | |
| Pull type Actuation | |
| Spring self-return | |
