OL6253 DC Solenoid – 24VDC, ≥3N, 8mm stroke
OL6253 DC Solenoid (pull solenoid / electromagnet): 24VDC, ≥3N, 8mm stroke, -40 to 60°C. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The OL6253 is a solenoid, operating from 24Vd.c., developing ≥ 3 N, over a 8mm stroke. It is rated for continuous duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 24Vd.c. | |
| OL6253 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 24 |
| Duty Type | Continuous |
| Actuation Type | Pull type |
| Reset Type | Spring return |
| Magnetic Force (N) | ≥ 3 |
| Armature Stroke (mm) | 8 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | Pull-in coilapprox. 58; Holding coilapprox. 5.8 |
| Coil Resistance (Ω, 25°C) | Pull-in coil: 10× (1±10%) / Holding coil: 100× (1±10%) |

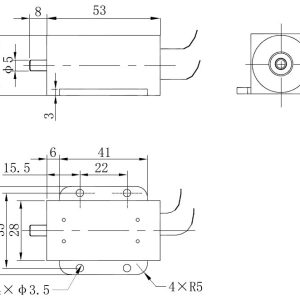

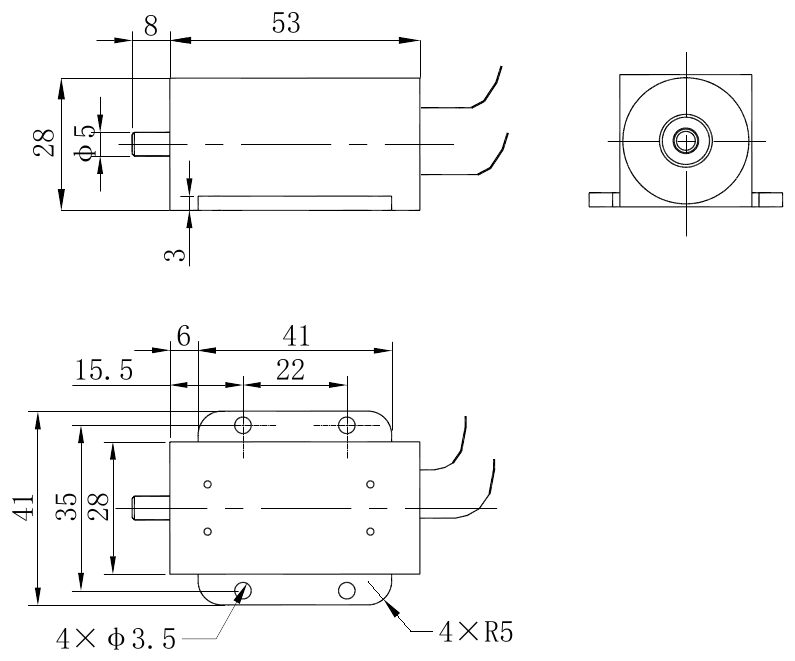

| Dimensions | See outline drawing |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 60 |
| Relative Humidity | 95% at 40°C |
Features | |
| Continuous Duty | |
| Pull type Actuation | |
| Spring return | |
