OL6256 DC Solenoid – 28VDC, ≥60N, 19mm stroke
OL6256 DC Solenoid (pull solenoid / electromagnet): 28VDC, ≥60N, 19mm stroke. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet

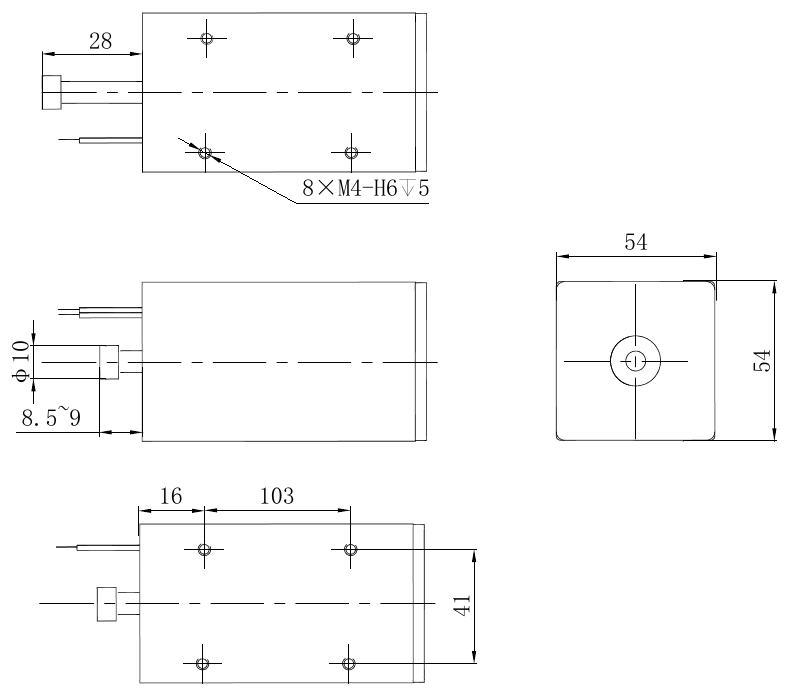

- Outline
- Reviews (0)
Description
The OL6256 is a solenoid, operating from 28Vd.c., developing ≥ 60 (at stroke 14mm) ≥ 70 (at stroke 9.5mm) 70 to 100 (at stroke 0.5mm) N, over a 19mm stroke. It is rated for intermittent duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 28Vd.c. | |
| OL6256 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28 |
| Duty Type | Intermittent |
| Actuation Type | Push type |
| Reset Type | Spring return |
| Magnetic Force (N) | ≥ 60 (at stroke 14mm) ≥ 70 (at stroke 9.5mm) 70 to 100 (at stroke 0.5mm) |
| Armature Stroke (mm) | 19 |
| Insulation Resistance (MΩ) | ≥ 50 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | 290 |
| Coil Resistance (Ω, 25°C) | 2.7× (1±10%) |
| Dimensions | See outline drawing |
Environmental Conditions | |
| Temperature Range (°C) | -55 to 70 |
| Relative Humidity | 95% at 40°C |
Features | |
| Intermittent Duty | |
| Push type Actuation | |
| Spring return | |
