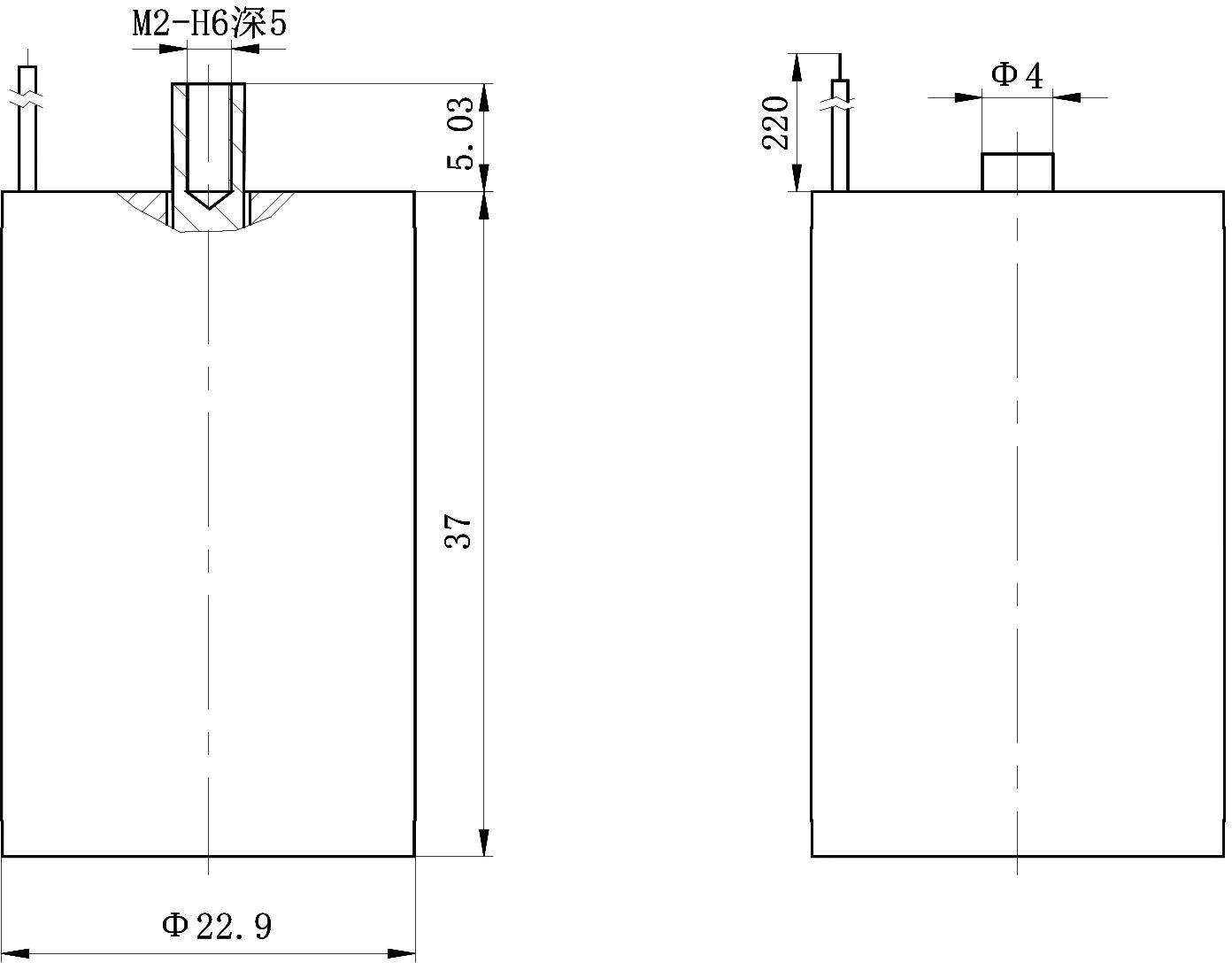

- Outline
- Reviews (0)
Description
The OM6018T is a magnetic latching solenoid, operating from 28Vd.c. pulse voltageVd.c., over a 2.96mm stroke. It is rated for magnetic latching duty. Its stated application is automatic control equipment.
Magnetic Latching Solenoid Specifications | |
| 28Vd.c. pulse voltageVd.c. | |
| OM6018T | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 28Vd.c. pulse voltage |
| Duty Type | Magnetic latching |
| Coil Resistance (Ω) | 16.5× (1±10%) (25°C) |
| Armature Stroke (mm) | 2.96 |
| Insulation Resistance (MΩ) | ≥ 1000 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | approx. 47 |
| Magnetic Force (25°C) | 19V pull force ≥ 3N push force ≥ 1N / 22V pull force ≥ 6N push force ≥ 2N / 32V pull force ≥ 6N push force ≥ 2N |
| Holding Force (N) | ≥ 40 |
Environmental Conditions | |
| Temperature Range (°C) | -60 to 70 |
| Relative Humidity | 98% at 25°C |
Features | |
| Magnetic latching Duty | |
