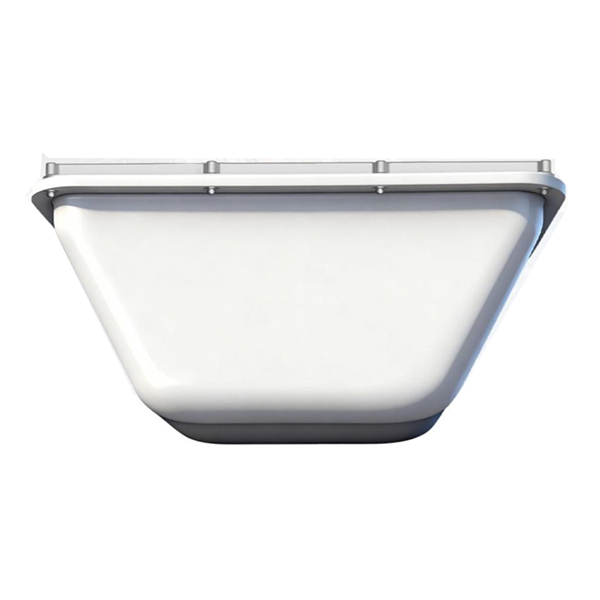

OR-T03B Blind-spot Compensation Radar
High-precision perception for ITS and V2X applications
Compensates for sensor blind spots to improve road safety
High resolution with multi-target detection capabilities
Low latency performance for real-time monitoring
Strong anti-interference capabilities
Supports flexible installation and easy expansion
IP67-rated protection for harsh outdoor environments
Wide coverage for up to 4 lanes of traffic
- Description
- Datasheet
- Reviews (0)
Description
The OR-T03B blind-spot compensation radar is a high-precision perception device designed for Intelligent Transportation Systems (ITS) and Vehicle-to-Everything (V2X) scenarios. It is primarily utilized to fill detection gaps in sensor blind spots, significantly enhancing road safety and traffic efficiency. Featuring high resolution, multi-target detection capabilities, low latency, and robust anti-interference performance, the OR-T03B supports flexible installation and system expansion to meet diverse operational requirements across
OR-T03B | |
| OR-T03B Blind-spot Compensation Radar | |
Property | Value |
| Blind Spot Distance Range | +/-40m (@10m installation height) |
| Communication Interface | Ethernet RJ-45, 100Mbps Adaptive Port |
| Frame Rate | 10fps |
| Horizontal Beam Opening Angle | -75° to 75° |
| Installation Angle | Top or side mounted; side tilt angle based on height and lane count |
| Installation Height | 6m to 12m |
| Number of Compensation Lanes | 4 Lanes |
| Operating Humidity | 0% to 90% @ RH (50°C) |
| Operating Temperature | -40°C to 85°C |
| Power Consumption | <= 8W |
| Protection Level | IP67 |
| Ranging Accuracy | 0.2m |
| Speed Range | +/-250km/h |
| Target Detection Count | >= 256 |
| Vertical Beam Opening Angle | -38° to 38° |
Features | |
| High-precision perception for ITS and V2X applications | |
| Compensates for sensor blind spots to improve road safety | |
| High resolution with multi-target detection capabilities | |
| Low latency performance for real-time monitoring | |
| Strong anti-interference capabilities | |
| Supports flexible installation and easy expansion | |
| IP67-rated protection for harsh outdoor environments | |
| Wide coverage for up to 4 lanes of traffic | |
Applications | |
| For Intelligent Transportation Systems (ITS) and Vehicle-to-Everything (V2X) scenarios. | |
