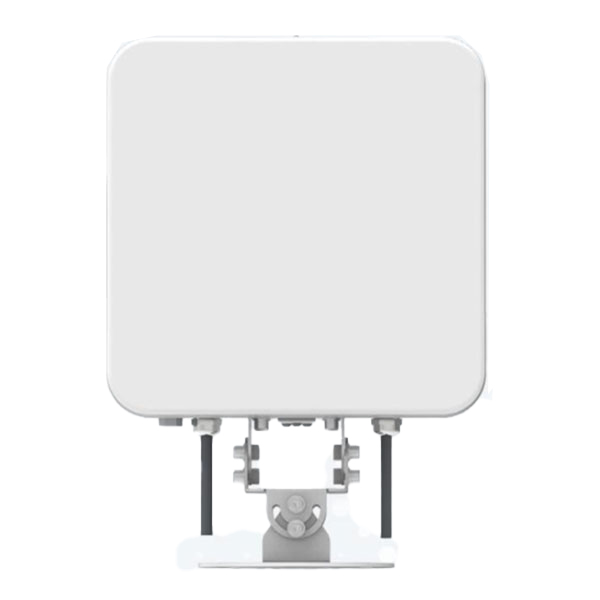

OR-T03M Wide-area Long-range
Operating frequency 79-80GHz for enhanced environmental adaptability.
Tracks targets across up to 12 lanes within a 350m range.
Real-time detection of position, speed, and motion status.
Simultaneously monitors and tracks up to 512 targets.
Provides traffic statistics: queue length, flow, and average speed.
Detects traffic events: parking, congestion, lane changes, and wrong-way driving.
High reliability with all-weather operational capability.
Optimized for urban intersections and tunnel monitoring scenarios.
- Description
- Datasheet
- Reviews (0)
Description
The OR-T03M is a high-performance wide-area long-range multi-target millimeter-wave radar operating in the 79-80GHz band. It is designed for precise traffic monitoring, capable of tracking up to 512 targets across 12 lanes within a range of 350 meters. The device provides real-time data on target position, speed, and motion status. OR-T03M excels in traffic flow statistics, including queue length and volume, as well as traffic event detection like illegal parking, congestion, and wrong-way driving. Its robust design ensures reliable, all-weather operation, making it ideal for urban roads and tunnel applications.
OR-T03M | |
| OR-T03M Wide-area Long-range | |
Property | Value |
| Abnormal Parking Detection Accuracy | >=95% |
| Angular Accuracy | Mid: +/-0.2 deg, Short: +/-0.25 deg |
| Angular Resolution | Mid: 2.4 deg, Short: 3.4 deg |
| Anti-corrosion Grade | IEC60068-2-11 |
| Base Hole Diameter | R6.8mm |
| Congestion Event Detection Accuracy | >=95% |
| Dimensions | 189.2mm x 105.8mm x 266.8mm |
| Distance Accuracy | +/-0.1m |
| EMC | IEC61000-4-5:2014 |
| Horizontal FOV | Mid: -12 to +12 deg, Short: -45 to +45 deg |
| Interface | RJ45/RS485 |
| Lane Flow Statistics Accuracy | >=98% |
| Lane Queue Length Statistics Error | <=10% |
| Max Tracking Targets | 512 |
| Monitored Lanes | 12 lanes |
| Operating Humidity | 0% to 90% @ RH (50 degC) |
| Operating Temperature | -40 degC to +85 degC |
| Power Consumption | 8W |
| Power Supply | DC 12V & AC 24V |
| Range Resolution | Mid: 0.8m, Short: 0.4m |
| Ranging Accuracy | +/-0.1m |
| Ranging Range | 0.2m to 350m |
| Speed Accuracy | >=97.5% |
| Speed Range | -300km/h to +300km/h |
| Speed Resolution | 0.6km/h |
| Statistical Cycle | 1s to 3600s |
| Target Capture Rate | >=98% |
| Target Identification Accuracy (Large/Small Vehicles) | >=90% |
| Trajectory Tracking Accuracy | >=97% |
| Vertical FOV | Mid: 10 deg, Short: 20 deg (6dB) |
| Waterproof Rating | IP67 |
| Weight | 1.7kg |
| Wrong-way Event Detection Accuracy | >=98% |
Features | |
| Operating frequency 79-80GHz for enhanced environmental adaptability. | |
| Tracks targets across up to 12 lanes within a 350m range. | |
| Real-time detection of position, speed, and motion status. | |
| Simultaneously monitors and tracks up to 512 targets. | |
| Provides traffic statistics: queue length, flow, and average speed. | |
| Detects traffic events: parking, congestion, lane changes, and wrong-way driving. | |
| High reliability with all-weather operational capability. | |
| Optimized for urban intersections and tunnel monitoring scenarios. | |
Applications | |
| Its robust design ensures reliable, all-weather operation, making it ideal for urban roads and tunnel applications. | |
