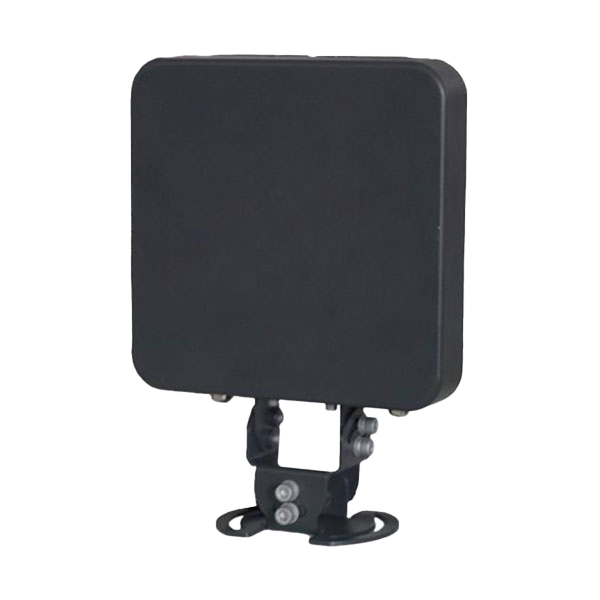

OR-T04 Wide-area Long-range Multi-target
Monitors up to 10 lanes and tracks up to 512 targets simultaneously
Supports remote network debugging and batch upgrades for maintenance-free operation
Supports real-time network clock synchronization
Aerospace-grade quality resistant to rain, fog, haze, and wind
Capable of stable 24/7 all-weather operation
Identifies vehicle trajectories to detect reverse driving, parking, and congestion
- Description
- Datasheet
- Reviews (0)
Description
The OR-T04 is a high-performance, wide-area long-range multi-target millimeter-wave radar designed for advanced traffic monitoring. With a longitudinal detection range of up to 500m, it provides real-time data on vehicle position, speed, and motion status, enabling stable tracking of multiple targets. The OR-T04 supports comprehensive traffic metrics including flow statistics, queue length, and average speed, alongside incident detection for illegal parking, congestion, and reverse driving. Its aerospace-grade reliability ensures stable 24/7 all-weather operation, making it an ideal solution for urban intersections and highway management scenarios.
OR-T04 |
|
|
OR-T04 Wide-area Long-range Multi-target |
|
Property |
Value |
|
Abnormal Parking Detection Accuracy |
95 percent |
|
Angular Accuracy |
0.15 degrees, Near: 0.3 degrees |
|
Angular Resolution |
1.6 degrees, Near: 3.2 degrees |
|
Base Hole Diameter |
R6.8mm |
|
Congestion Event Detection Accuracy |
95 percent |
|
Corrosion Resistance |
IEC60068-2-11 |
|
Detection Period |
100ms |
|
Detection Range |
>500m@10dbsm |
|
Dimensions |
189.2mm x 105.8mm x 266.8mm |
|
EMC |
IEC61000-4-5:2014 |
|
Interface |
RJ45 and RS485 |
|
Lane Flow Statistics Accuracy |
98 percent |
|
Lane Queue Length Statistics Error |
10 percent |
|
Monitorable Lanes |
10 lanes |
|
Power Consumption |
20W |
|
Power Supply |
DC12V / AC24V |
|
Radar Installation Height |
6m-12m |
|
Radar Installation Tilt Angle |
0 to -2 degrees |
|
Radar Installation Yaw Angle |
-2 to +2 degrees (Recommended 0) |
|
Range Accuracy |
1.5m, Near: 0.5m |
|
Reverse Driving Event Detection Accuracy |
98 percent |
|
Statistics Period |
1s to 3600s |
|
Statistics Section |
1 to 10 sections |
|
Target Capture Rate |
98 percent |
|
Target Identification Accuracy |
90 percent |
|
Tracking Targets Max |
512 |
|
Traffic Velocity Accuracy |
97.5 percent |
|
Trajectory Tracking Accuracy |
97 percent |
|
Velocity Accuracy |
0.2km/h, Near: 0.36km/h |
|
Velocity Range |
-200km/h to +200km/h |
|
Velocity Resolution |
0.15km/h, Near: 0.25km/h |
|
Waterproof Grade |
IP67 |
|
Weight |
1.7kg |
|
Working Frequency |
92 to 94GHz |
|
Working Humidity |
0 percent to 90 percent RH (50 degC) |
|
Working Temperature |
-40 to +85 degC |
Features |
|
|
Monitors up to 10 lanes and tracks up to 512 targets simultaneously |
|
|
Supports remote network debugging and batch upgrades for maintenance-free operation |
|
|
Supports real-time network clock synchronization |
|
|
Aerospace-grade quality resistant to rain, fog, haze, and wind |
|
|
Capable of stable 24/7 all-weather operation |
|
|
Identifies vehicle trajectories to detect reverse driving, parking, and congestion |
|
Applications |
|
|
For urban intersections and highway management scenarios. |
|
