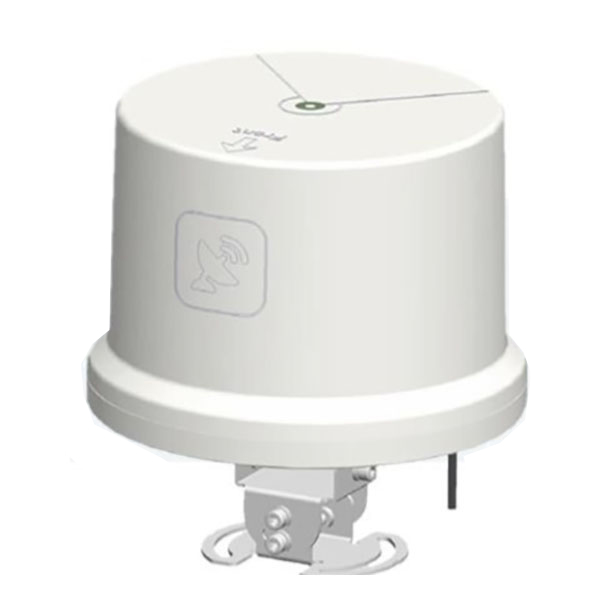

OR-T05 Security Radar
Supports remote network debugging and firmware upgrades for easy maintenance.
Integrated motorized adjustment for module pitch angles.
Simultaneously identifies and tracks up to 128 targets with alarm output.
Engineered for stable performance in all-day and all-weather conditions.
High longitudinal target detection rate of >=98%.
Low false alarm rate maintained at <=1%.
Extra-wide 270-degree horizontal opening angle for maximum coverage.
Ethernet connectivity for direct target data transmission to PTZ cameras.
- Description
- Datasheet
- Reviews (0)
Description
The OR-T05 Security Radar is a high-performance 80GHz band radar designed for comprehensive surveillance. It features a wide 270-degree horizontal beamwidth, achieved through the integration of three internal radar modules. Designed for mounting heights between 10m and 15m, the unit includes motorized pitch angle adjustment for precision targeting. This radar provides stable detection and tracking of moving targets such as vehicles and pedestrians, transmitting real-time location data via Ethernet to PTZ cameras. It is built for reliable all-day and all-weather operation, offering a high longitudinal detection rate of >=98% with a low false alarm rate of <=1%.
OR-T05 |
|
|
OR-T05 Security Radar |
|
Property |
Value |
|
Angular Accuracy |
1.6° |
|
Angular Resolution |
7° |
|
Base Hole Radius |
R 3.25mm |
|
Detection Range |
Vehicle: 70m (longitudinal) >=10 dBsm; Pedestrian: 40m (longitudinal) >=-7 |
|
Dimensions |
222.6mm*236.5mm (including base) |
|
Distance Accuracy |
0.1m |
|
Distance Resolution |
0.4m |
|
EIRP |
<=30dBm |
|
Horizontal Opening Angle |
270° |
|
Installation Height |
10-15m |
|
Interface |
RJ45/RS485 |
|
Operating Frequency |
80GHz (79GHz-81GHz range) |
|
Operating Temperature |
-40°C to +70°C |
|
Power Consumption |
<=10W |
|
Power Supply |
Compatible with DC12V and AC24V |
|
Protection Level |
IP66 |
|
Velocity Accuracy |
<=0.5km/h |
|
Velocity Resolution |
<=0.6km/h |
|
Vertical Opening Angle |
20° |
|
Weight |
Approx. 2.5kg |
Features |
|
|
Supports remote network debugging and firmware upgrades for easy maintenance. |
|
|
Integrated motorized adjustment for module pitch angles. |
|
|
Simultaneously identifies and tracks up to 128 targets with alarm output. |
|
|
Engineered for stable performance in all-day and all-weather conditions. |
|
|
High longitudinal target detection rate of >=98%. |
|
|
Low false alarm rate maintained at <=1%. |
|
|
Extra-wide 270-degree horizontal opening angle for maximum coverage. |
|
|
Ethernet connectivity for direct target data transmission to PTZ cameras. |
|
Applications |
|
|
It is built for reliable all-day and all-weather operation, offering a high longitudinal detection rate of >=98% with a low false alarm rate of <=1%. |
|
