OT6217 DC Solenoid – 26VDC, ≥50kg, 5mm stroke
OT6217 DC Solenoid (pull solenoid / electromagnet): 26VDC, ≥50kg, 5mm stroke. For automatic control equipment. Datasheet and quote from RFecho.
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The OT6217 is a solenoid, operating from 26Vd.c., developing ≥ 50 kg, over a 5mm stroke. It is rated for continuous duty, resets by spring return. Its stated application is automatic control equipment.
Solenoid Specifications | |
| 26Vd.c. | |
| OT6217 | |
Property | Value |
Technical Characteristics | |
| Operating Voltage (Vd.c.) | 26 |
| Duty Type | Continuous |
| Actuation Type | Push type |
| Reset Type | Spring return |
| Armature Stroke (mm) | 5 |
| Insulation Resistance (MΩ) | ≥ 500 |
| Dielectric Strength (V, 50Hz) | 500 |
| Coil Power (W) | Pull-in coilapprox. 450 Holding coilapprox. 10.4 |
| Magnetic Force (kg) | ≥ 50 |
| Coil Resistance (Ω, 25°C) | Pull-in coil: 1.5× (1±10%) / Holding coil: 65× (1±10%) |

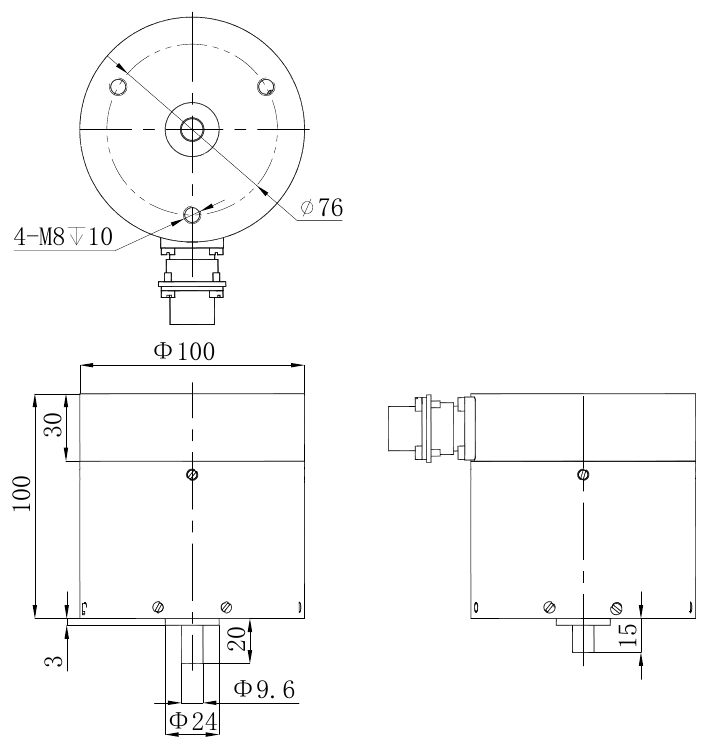

| Dimensions | See outline drawing |
Environmental Conditions | |
| Temperature Range (°C) | -40 to 60 |
| Relative Humidity | 95% at 40°C |
Features | |
| Continuous Duty | |
| Push type Actuation | |
| Spring return | |
