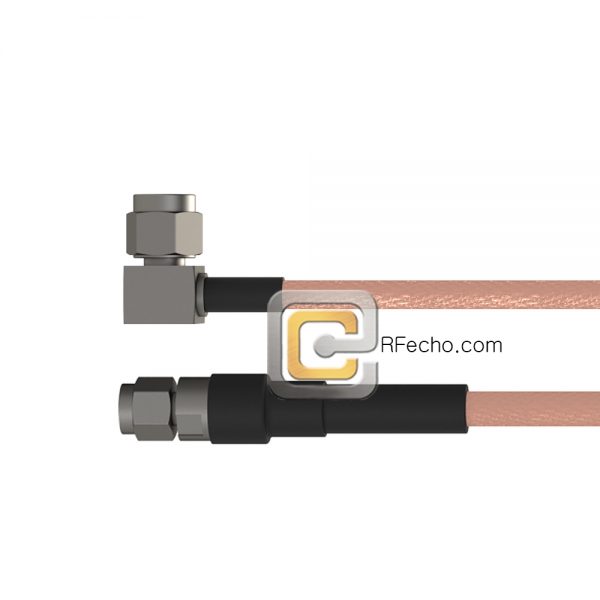

SMA Male to Right Angle SSMA Male RG-316 Coax and RoHS F065-321S0-361R0-30-N

SMA Male to Right Angle SSMA Male RG-316 Coax and RoHS F065-321S0-361R0-30-N

0 out of 5

This RFecho cable assembly is built with RG-316 coax. RF cable assembly is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc.

RFecho products having 1.35:1 VSWR, Velocity of Propagation of 70% and the Capacitance of 32 [104.99] pF/ft [pF/m].

SKU: F065-321S0-361R0-30-N Categories: E-System FLEX, RF Cables, RG-316

Description

PDF

Additional information

Cable Type

RG-316

Cable Coax Type

Flexible

Cable Armour

None

Connector 1

SMA

Connector 1 Gender

Male

Connector 1 Body Style

Straight

Connector 1 Mounting Method

None

Connector 1 Connection Method

Standard

Connector 2

SSMA

Connector 2 Gender

Male

Connector 2 Body Style

Right Angle

Connector 2 Mounting Method

None

Connector 2 Connection Method

Standard
