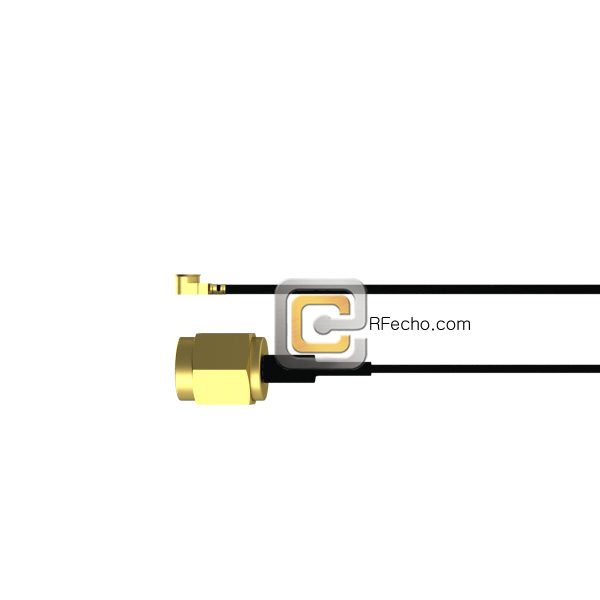

SMA Male to UMCX 2.5 Plug OM-137 Coax and RoHS F008-321S0-451S0-60-N

SMA Male to UMCX 2.5 Plug OM-137 Coax and RoHS F008-321S0-451S0-60-N

0 out of 5

UMCX 2.5 ultra-miniature cable assemblies have a mated connection height of 2.5mm. They are constructed using a flexible micro-coax cable and are comparable in design to Hirose U.FL®, IPEX MHF® as well as other UMCX connector and cable manufactures.

UMCX 2.5 cables can be ordered in between-series configurations with Female Bulkhead versions of SMA, Reverse Polarity SMA and Type N connectors as well as an SMA Male option. With frequencies up to 6 GHz, these UMCX cables are perfectly suited for wireless communications such as Wi-Fi, Bluetooth, GPS, ZigBee and LTE.

SKU: F008-321S0-451S0-60-N Categories: E-System FLEX, OM-137, RF Cables

Description

PDF

Additional information

Cable Type

OM-137

Cable Coax Type

Flexible

Cable Armour

None

Connector 1

SMA

Connector 1 Gender

Male

Connector 1 Body Style

Straight

Connector 1 Mounting Method

None

Connector 1 Connection Method

Standard

Connector 2

UMCX 2.5

Connector 2 Gender

Male

Connector 2 Body Style

Straight

Connector 2 Mounting Method

None

Connector 2 Connection Method

Standard
